3 cross pattern what's the right way?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

3 cross pattern what's the right way?

Old 05-04-21, 01:16 PM
  #1
PimpMan
Senior Member
Thread Starter

Join Date: Feb 2018
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Liked 3 Times in 2 Posts
Lacing spokes the right way

I have one wheel that has lacing pattern like #1 and other wheel is lacing pattern #2?

What is the right way to make 3 cross lacing pattern?

Blue spokes cross over green




Green spokes cross over blue

Last edited by PimpMan; 05-05-21 at 01:55 PM.
PimpMan is offline
Old 05-04-21, 01:49 PM
  #2
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 30,132

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1535 Post(s)
Liked 523 Times in 305 Posts
I've always done it with the heads of the pulling spokes facing out. I also lace all of the heads out spokes on both sides first because that's much easier.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Likes For Retro Grouch:
Old 05-04-21, 01:53 PM
  #3
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 1,630

Bikes: lots

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 713 Post(s)
Liked 855 Times in 489 Posts
^This^
Your graphic sucks. And what is 'facing' in or out...the heads or the elbows? In #1 if the heads are out and the spokes go 'under, under, over' it would be correct.
cxwrench is offline
Old 05-04-21, 02:03 PM
  #4
urbanknight
Over the hill

urbanknight's Avatar

Join Date: Mar 2006
Location: Los Angeles, CA
Posts: 22,696

Bikes: Specialized Allez Elite, Raleigh Pursuit tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 97 Post(s)
Liked 116 Times in 71 Posts
Given the limited information, both of those images could hypothetically be the same wheel facing opposite directions. Retro explained it well, but I will mention that many wheels are out there the opposite way or even (cringe) different on each side without issue. Properly seating and stress relieving the spokes, and maybe making sure the stem is in the wider opening, are more important in the long run.
__________________
It's like riding a bicycle
urbanknight is offline
Old 05-05-21, 01:38 PM
  #5
PimpMan
Senior Member
Thread Starter

Join Date: Feb 2018
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Liked 3 Times in 2 Posts
need to make 2 cross spoke pattern for the front wheel (because lack of proper length spokes) i am however having some problem - green spokes stick out trough the rim 4-5mm longer than blue spokes.

Blue spokes angle is -60 degree, green spoke angle is is +20 degree from the hub (compared to radial lacing)

Is this 2 cross pattern diagram wrong?






Last edited by PimpMan; 05-05-21 at 01:56 PM.
PimpMan is offline
Old 05-05-21, 01:45 PM
  #6
AlmostTrick
Tortoise Wins by a Hare!

AlmostTrick's Avatar

Join Date: Feb 2006
Location: Looney Tunes, IL
Posts: 7,340

Bikes: Wabi Special FG, Raleigh Roper, Nashbar AL-1, Miyata One Hundred, '70 Schwinn Lemonator and More!!

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 1513 Post(s)
Liked 873 Times in 469 Posts
2 cross will require shorter spokes than 3, but all should be the same length within each pattern. If your green spokes are sticking out farther some of the spokes are in the wrong holes or the hub is twisted that way.
AlmostTrick is offline
Old 05-05-21, 01:54 PM
  #7
Retro Grouch
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 30,132

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1535 Post(s)
Liked 523 Times in 305 Posts
Aha! A common laceing mistake is to lace the spokes on one side of the hub one hole off from the spokes on the opposite side. If that's what you've done, you'll have two long spokes followed by two short spokes all around the rim.
__________________
My greatest fear is all of my kids standing around my coffin and talking about "how sensible" dad was.
Retro Grouch is offline
Old 05-05-21, 01:59 PM
  #8
PimpMan
Senior Member
Thread Starter

Join Date: Feb 2018
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Liked 3 Times in 2 Posts
Originally Posted by Retro Grouch View Post
Aha! A common laceing mistake is to lace the spokes on one side of the hub one hole off from the spokes on the opposite side. If that's what you've done, you'll have two long spokes followed by two short spokes all around the rim.
I know there's a mistake, but i just cannot understand what should be changed, mind pointing out on actual picture of the rim?
PimpMan is offline
Old 05-05-21, 03:24 PM
  #9
Bill Kapaun
Really Old Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 12,655

Bikes: 87 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1336 Post(s)
Liked 553 Times in 418 Posts
These are rear hubs, but the idea is the same.
The spoke holes on the opposite side of the hub are offset.
IF you are working CCW around the rim, the 2nd set has to be in the opposite hole that is offset CCW as in the left pic. Putting it in the hole as in the right pic will result in the long/short spoke scenario.

Bill Kapaun is offline
Likes For Bill Kapaun:
Old 05-06-21, 10:48 AM
  #10
PimpMan
Senior Member
Thread Starter

Join Date: Feb 2018
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Liked 3 Times in 2 Posts
Awesome changed other side spokes now worked great.
PimpMan is offline
Old 05-08-21, 12:54 AM
  #11
PimpMan
Senior Member
Thread Starter

Join Date: Feb 2018
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Liked 3 Times in 2 Posts

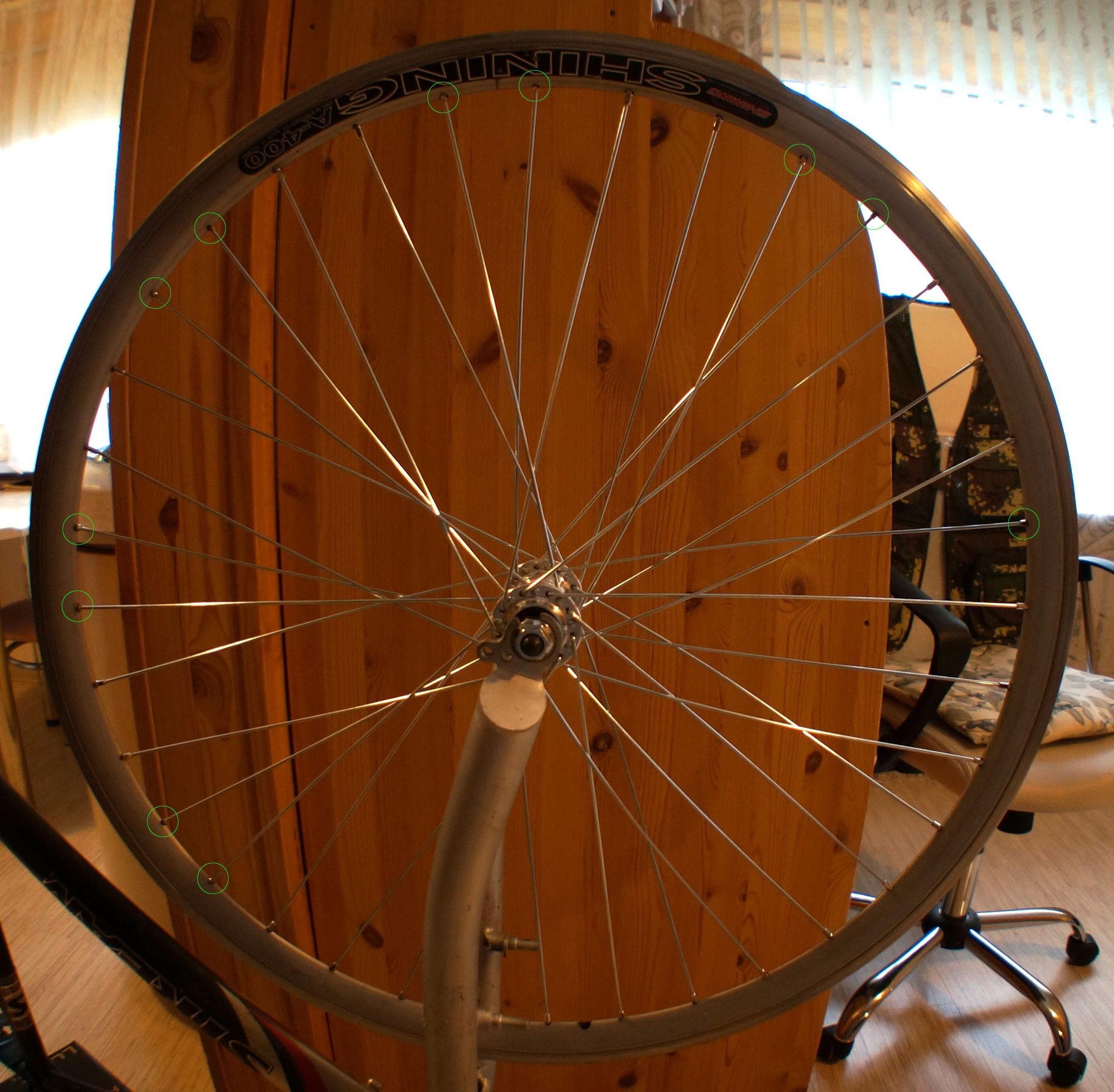

Used all 184mm spokes, nipples screwed in equally just to cover the spoke thread, wheel is almost true, however some spokes go inside rim further than others!

Already tried to tighten them its same story they do not tighten at equal lengths (equal number of turns some spokes not tighten at all while others turn all the way).

Used same spoke length as this wheel was built with before i taken it apart and i put new hub that is exactly the same as old one.

This rim is very bad design - it has sharp inner wall and nipple hole is about 4mm thick so nipple fixed at 90 degree angle from the rim.













Last edited by PimpMan; 05-08-21 at 01:12 AM.
PimpMan is offline
Old 05-08-21, 04:40 AM
  #12
PimpMan
Senior Member
Thread Starter

Join Date: Feb 2018
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Liked 3 Times in 2 Posts
I made it over and same issue, rim is trued and all spoke nipples are screwed just to cover the spoke thread.

Heads out spokes go inside rim too far.

I put all the heads out spokes first on both sides, then added heads in spokes on both sides.



Last edited by PimpMan; 05-08-21 at 04:49 AM.
PimpMan is offline
Old 05-08-21, 06:52 AM
  #13
PimpMan
Senior Member
Thread Starter

Join Date: Feb 2018
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Liked 3 Times in 2 Posts
Finished with 281mm spokes all good perfect except spokes are kind of too short, only 6 turns into the spoke nipple. I guess i will replace the spokes to 284mm one by one now...
PimpMan is offline
Old 05-08-21, 12:56 PM
  #14
Schwann
Junior Member

Schwann's Avatar

Join Date: Apr 2021
Posts: 7
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 1 Time in 1 Post
I'm new to 3 cross and I'm confused by this pics. Isn't the pattern every three holes and then over, over, under for the 3 cross?
Schwann is offline
Old 05-09-21, 01:17 PM
  #15
PimpMan
Senior Member
Thread Starter

Join Date: Feb 2018
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Liked 3 Times in 2 Posts
Okay after installing 281mm spokes and tightening them all to equal number of turns until spokes are tight i switched to 284mm spokes one by one tightening each one and it worked great all went into same number of turns each.

Originally Posted by Schwann View Post
I'm new to 3 cross and I'm confused by this pics. Isn't the pattern every three holes and then over, over, under for the 3 cross?
Yes it is.

What pic you mean exactly?

Last edited by PimpMan; 05-28-21 at 10:30 AM.
PimpMan is offline
Old 05-09-21, 07:47 PM
  #16
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 1,630

Bikes: lots

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 713 Post(s)
Liked 855 Times in 489 Posts
Originally Posted by Schwann View Post
I'm new to 3 cross and I'm confused by this pics. Isn't the pattern every three holes and then over, over, under for the 3 cross?
What? No...it's every 4th hole...for every 'cross' pattern, even for radial. It's either over, over, under OR under, under, over depending on which side of the flange you're on.
cxwrench is offline
Old 05-22-21, 07:26 AM
  #17
PimpMan
Senior Member
Thread Starter

Join Date: Feb 2018
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Liked 3 Times in 2 Posts
For asymmetrical rear hub with 7 speed freewheel i need to set dishing towards the center of fork not center of hub hub so tension between each side spokes is different.

Somewhere i read "tension for spokes ideally needs to same prevent breaking" is that same tension for all spokes on one side of the rim or every spoke on the rim needs to be same tension?

Obviously if i set same tension i will loose dishing, so if i say use 181 mm spokes on one side and 184mm spokes on other side then i can set equal tension?
PimpMan is offline
Old 05-22-21, 07:45 AM
  #18
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,701
Mentioned: 22 Post(s)
Tagged: 0 Thread(s)
Quoted: 743 Post(s)
Liked 283 Times in 174 Posts
Originally Posted by PimpMan View Post
For asymmetrical rear hub with 7 speed freewheel i need to set dishing towards the center of fork not center of hub hub so tension between each side spokes is different.

Somewhere i read "tension for spokes ideally needs to same prevent breaking" is that same tension for all spokes on one side of the rim or every spoke on the rim needs to be same tension?

Obviously if i set same tension i will loose dishing, so if i say use 181 mm spokes on one side and 184mm spokes on other side then i can set equal tension?
If spoke tension is equal on both sides, the rim will be centered between the flanges. If the flanges are offset due to a freehub, or disc brake mount, the rim heeds to be centered between the locknuts, therefore, the tensions will be different side to side. Tensions on the same side should be equal.
Dan Burkhart is online now
Likes For Dan Burkhart:
Old 05-22-21, 08:03 AM
  #19
dabac
Senior Member

Join Date: Mar 2008
Posts: 8,527
Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 1028 Post(s)
Liked 221 Times in 164 Posts
Originally Posted by PimpMan View Post
For asymmetrical rear hub with 7 speed freewheel i need to set dishing towards the center of fork not center of hub.
The way it is usually described is that you center the rim between the locknuts. For assymmetrical hubs - disc brake fronts and derailer gear rears - this means the rim won’t be centered between the hub flanges.
Rim being centered between hub flanges is kinda accidental, and not overly important for the function of the bike as a whole. Rim centered between locknuts/dropouts is generally more important.
Originally Posted by PimpMan View Post
...so tension between each side spokes is different.

Somewhere i read "tension for spokes ideally needs to same prevent breaking" is that same tension for all spokes on one side of the rim or every spoke on the rim needs to be same tension?
If you have the same spoke count on both sides, then assymmetric hubs will require different spoke tension for each side of the wheel. Within each side, spoke tension difference should be as little as patience/skill/quality and condition of parts used allows.
Originally Posted by PimpMan View Post

Obviously if i set same tension i will loose dishing, so if i say use 181 mm spokes on one side and 184mm spokes on other side then i can set equal tension?
That will not work.
Different spoke length will NOT let you achieve equal tension on an assymmetric hub.
On an assymetric hub there are basically two things you can do to even out tension:
1) different spoke counts
2) offset/assymmetric rim

There is one more trick, but that doesn’t actually address tension, it influences load or strain.
If you use a thinner spoke on the less tensioned side, then the tension-by-cross section area becomes the same/similar, which is good for spoke longevity.
Basically, if the NDS has 60% tension compared to the DS, then you should use spokes with 60% of the cross section area.
That will keep both sides spokes working equally hard.
dabac is offline
Likes For dabac:
Old 05-22-21, 07:49 PM
  #20
Mad Honk
Senior Member

Join Date: May 2019
Location: Bloomington, IN
Posts: 1,482

Bikes: Trek 770, Trek 760, Schwinn Paramount, Patelli Professional, Othon Ochsner

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 635 Post(s)
Liked 525 Times in 394 Posts
PimpMan,
I just finished giving pictures and descriptions about my wheel build for my Paramount in the thread "Paramount Build". I describe most of the how and why for the way I build my wheels. They were good enough for our team to finish three Race Across America trips. Along with countless wheels built for the Little 500 race and a lot in the local LBS where I worked. Check it out and if you still have questions, you can contact me by phone or e-mail. Just let me know, Smiles, MH
Mad Honk is offline
Old 05-28-21, 05:34 AM
  #21
PimpMan
Senior Member
Thread Starter

Join Date: Feb 2018
Posts: 71
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Liked 3 Times in 2 Posts
So far i figured it out following recipe for perfectly adjusted front rim:
1. Assemble the wheel leaving tiny portion of thread visible outside nipple for every spoke.
2. Tighten each nipple equal number of 360 degree turns (e.g. 6 turns out of 12 total).
3. Keep adding equal number of 90 degree turns to each nipple until you get equal tension of about 100 kgf (1000 N) for every spoke (remove spoke tension)
4. True the wheel (remove spoke tension)
5. Adjust the spokes again until you get equal tension of about 100 kgf (1000 N) for every spoke (remove spoke tension)
6. Keep repeating step #4 and #5 until you get equal tension for every spoke while rim stay's true.

Problem is that step #6 has to be repeated too many times, is there a faster way or can you advice any better sequence for wheel building?

Last edited by PimpMan; 05-28-21 at 10:31 AM.
PimpMan is offline
