Missing Rear Rack Hardware
10-21-12 | 06:52 PM
#1
Thread Starter
Member
Joined: Dec 2005
Posts: 43
Likes: 0
From: SF Bay Area
Bikes: Vintage Fuji Del Rey, Torelli Countach, Mondonico Diamond, All-City Mr. Pink, Mikkelsen Custom Road Bike, Surly Ogre, Dahon Helios, Marin Muirwoods
Missing Rear Rack Hardware

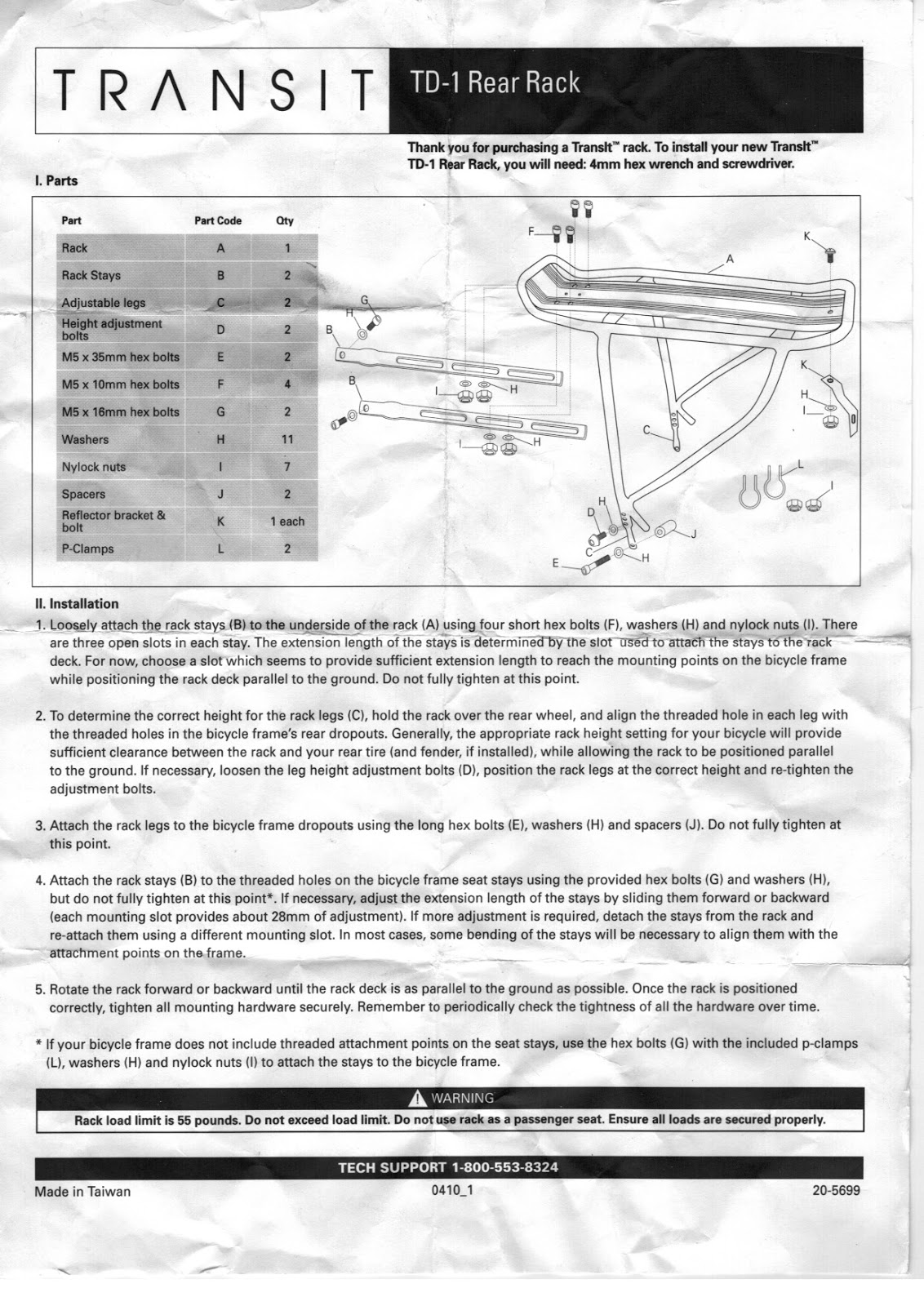

I bought a Transit TD-1 rear rack awhile back and finally decided to install it on my bike (Marin Muirwoods 29er), but I couldn't find the bolts and hardware that came with it (E: M5 x 35mm, F: M5 x 10mm, G: M5 x 16mm, H: Washers, J: Spacers). I went to Home Depot and found M5 x 10mm and M5 x 16mm bolts, but couldn't find anything longer than 30mm. Does anyone know where I can find the rest of the parts or any other ways to install the rack? It doesn't have to look good, I'll be happy as long as the rack is secured. Please let me know. Thanks.
10-21-12 | 06:56 PM
#2
The space coyote lied.
Joined: Sep 2008
Posts: 48,726
Likes: 10,984
From: dusk 'til dawn.
Bikes: everywhere
Did you give the 30mm ones a try? Maybe they're long enough to clear your brakes? Oh, I guess you'd probably have to shorten those spacers by 5 mm or so also.
The local Ace and True Value dealers here have better bolts selection than Home Depot. Then there's Fastenal, etc.
The local Ace and True Value dealers here have better bolts selection than Home Depot. Then there's Fastenal, etc.
10-21-12 | 07:01 PM
#3
Senior Member
Joined: Aug 2005
Posts: 33,657
Likes: 1,119
From: Pittsburgh, PA
Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!
The need for the 35 mm long bolts and their spacers surprises me. All the racks I've ever mounted had the legs flush against the dropout eyelets and used quite short M5 bolts to mount. In fact, I've even had to shorten the driveside bolt so it's threaded end didn't interfer with the chain and/or smallest cog. Do a try-fit before you buy anything else.
10-21-12 | 07:35 PM
#6
Senior Member
Joined: Sep 2010
Posts: 8,327
Likes: 1,110
From: Roswell, GA
Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta
Have you asked the manufacturer? They are usually pretty generous about replacing lost or missing components. A quick search indicates that they were made by Axiom. Here is a link to their "Solve A Problem" page: https://www.axiomgear.com/solve-a-problem/ They may provide the original hardware cheap or free.
10-21-12 | 09:35 PM
#7
Senior Member
Joined: Apr 2009
Posts: 39,897
Likes: 3,865
From: New Rochelle, NY
Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter
The need for the 35 mm long bolts and their spacers surprises me. All the racks I've ever mounted had the legs flush against the dropout eyelets and used quite short M5 bolts to mount. In fact, I've even had to shorten the driveside bolt so it's threaded end didn't interfer with the chain and/or smallest cog. Do a try-fit before you buy anything else.
__________________
FB
Chain-L site
An ounce of diagnosis is worth a pound of cure.
Just because I'm tired of arguing, doesn't mean you're right.
“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN
WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FB
Chain-L site
An ounce of diagnosis is worth a pound of cure.
Just because I'm tired of arguing, doesn't mean you're right.
“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN
WARNING, I'm from New York. Thin skinned people should maintain safe distance.
10-22-12 | 09:14 AM
#9
Senior Member
Joined: Sep 2012
Posts: 1,751
Likes: 7
Did you give the 30mm ones a try? Maybe they're long enough to clear your brakes? Oh, I guess you'd probably have to shorten those spacers by 5 mm or so also.
The local Ace and True Value dealers here have better bolts selection than Home Depot. Then there's Fastenal, etc.
The local Ace and True Value dealers here have better bolts selection than Home Depot. Then there's Fastenal, etc.
10-22-12 | 05:33 PM
#10
Senior Member
Joined: Aug 2005
Posts: 33,657
Likes: 1,119
From: Pittsburgh, PA
Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!
