Super Record Brake levers

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Super Record Brake levers

Old 06-20-18, 03:37 PM
  #1
Miloburnz
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Mallorca,Spain
Posts: 22

Bikes: BH Turbo single speed,Tommasini Super Prestige,Torrot Tourist ,Orbea MTB,95 Vanni,Detto,Colnago Super,Hans Lutz.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Super Record Brake levers

Just aquired a mid eighties Colnago Super that has had the gearing changed in the past to shimano hyperglide , I want to put it back to all Super Record as per original but would prefer aero brake levers, do Super Record brake levers come in aero/non aero like the C Record ones . All the Super Record levers i have come accross appear to be non aeros .
Miloburnz is offline
Old 06-20-18, 03:54 PM
  #2
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 37,090

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 420 Post(s)
Tagged: 0 Thread(s)
Quoted: 5374 Post(s)
Liked 89 Times in 68 Posts
They were all non-aero.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is online now
Old 06-20-18, 03:59 PM
  #3
Wileyone
Senior Member

Wileyone's Avatar

Join Date: Oct 2014
Location: GWN
Posts: 1,971
Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1053 Post(s)
Likes: 0
Liked 6 Times in 4 Posts
Chorus Levers are nice and come in Aero.
Wileyone is offline
Old 06-20-18, 05:58 PM
  #4
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 8,117
Mentioned: 213 Post(s)
Tagged: 1 Thread(s)
Quoted: 1621 Post(s)
Liked 30 Times in 27 Posts
-----

SR levers exist in two reaches. Launch was ~1974 and in ~1976 reach on Campag levers was reduced.


​​​​​​​-----
juvela is offline
Old 06-21-18, 05:14 AM
  #5
Old Fireleg
Senior Member

Old Fireleg's Avatar

Join Date: Oct 2012
Posts: 132

Bikes: '76 Colnago Super NR,'83 Romani Aero KL/SP SR, '85 Mino Denti Aero Master CR, '86 ALAN Cyclo-cross DA, '89 Bottecchia SLX CR, '90 Colnago Master Piu CR

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Maybe a pair of Modolo Kronos or Orion?
These were often used with the SR groupset in the first half of the 80's.

But foxy people could transform the SR to aero. In 1984, the great Bernard Hinault competed in the chrono stages with these.
And there was also a way to bring the cable down in the arch of the brake lever, but I recommend this only to a strong twist.
Old Fireleg is offline
Old 06-21-18, 07:21 AM
  #6
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 37,090

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 420 Post(s)
Tagged: 0 Thread(s)
Quoted: 5374 Post(s)
Liked 89 Times in 68 Posts
What a great picture. I loved Hinault and Lemond.

So a mechanic drilled holes in the bodies of the levers to change the cable routing?
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is online now
Old 06-21-18, 08:03 AM
  #7
Old Fireleg
Senior Member

Old Fireleg's Avatar

Join Date: Oct 2012
Posts: 132

Bikes: '76 Colnago Super NR,'83 Romani Aero KL/SP SR, '85 Mino Denti Aero Master CR, '86 ALAN Cyclo-cross DA, '89 Bottecchia SLX CR, '90 Colnago Master Piu CR

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by noglider View Post
What a great picture. I loved Hinault and Lemond.

So a mechanic drilled holes in the bodies of the levers to change the cable routing?
Yes, over the bolt of clamp. The hole on the bar had to be drilled as close as possible to the upper edge of the body to the hood to be pulled. "On the hoods" hand position so was shot. But in a TT race they are also running with Drops position

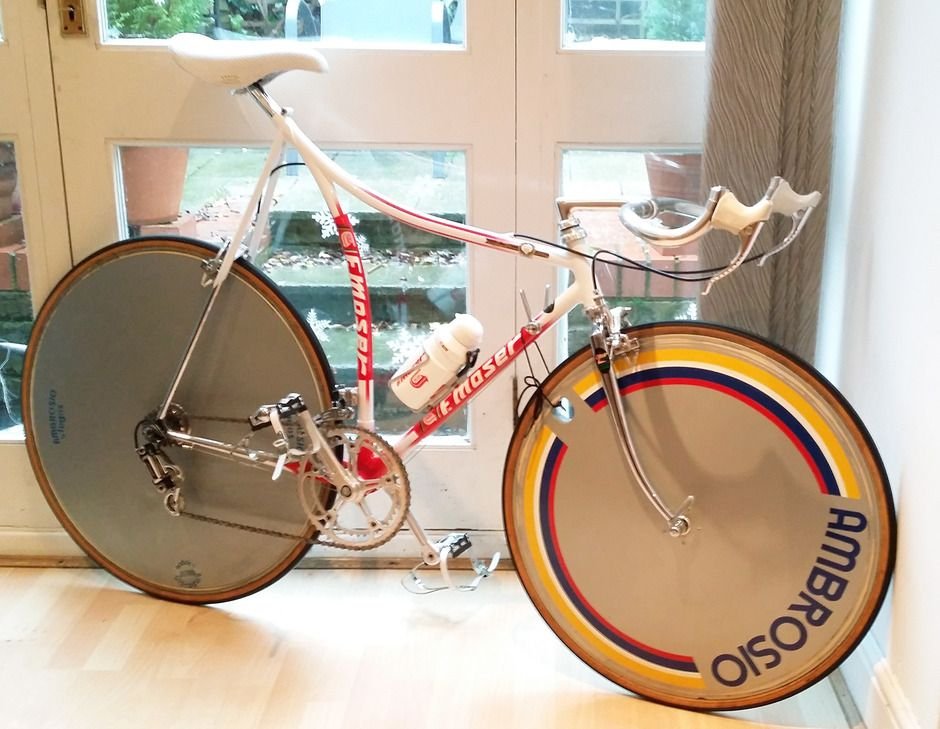

Francesco Moser was the most outstanding TT competitor of his time and one of my personal favourite. But when Hinault took part in Giro in 1982, he won both time trial stages in front of Moser. (but this picture above was made in 84)

Last edited by Old Fireleg; 06-21-18 at 08:15 AM.
Old Fireleg is offline
Old 06-21-18, 10:45 AM
  #8
jyl
Senior Member

jyl's Avatar

Join Date: Aug 2006
Location: Portland OR
Posts: 7,515

Bikes: 61 Bianchi Specialissima 71 Peugeot G50 7? P'geot PX10 74 Raleigh GranSport 75 P'geot UO8 78? Raleigh Team Pro 82 P'geot PSV 86 P'geot PX 91 Bridgestone MB0 92 B'stone XO1 97 Rans VRex 92 Cannondale R1000 94 B'stone MB5 97 Vitus 997

Mentioned: 124 Post(s)
Tagged: 0 Thread(s)
Quoted: 337 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The aero mod to SR levers is interesting. Did the brake cable make a sharp bend? I'd worry about that for longevity, not important for a team bike where brake cables could be changed frequently of course.
jyl is offline
Old 06-21-18, 12:04 PM
  #9
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Posts: 37,090

Bikes: 1962 Rudge Sports, 1971 Raleigh Super Course, 1971 Raleigh Pro Track, 1973 Raleigh Twenty, 1974 Raleigh International, 1975 Viscount Fixie, 1982 McLean, 1996 Lemond (Ti), 2002 Burley Zydeco tandem

Mentioned: 420 Post(s)
Tagged: 0 Thread(s)
Quoted: 5374 Post(s)
Liked 89 Times in 68 Posts
Oh come to think of it, I saw it done in summer of 1979. I was working at a bike shop, and another mechanic was doing it to his race bike. I ridiculed his effort, but he said that in races, little things add up.
__________________
Tom Reingold, tom@noglider.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

“When man invented the bicycle he reached the peak of his attainments.” — Elizabeth West, US author

Please email me rather than PM'ing me. Thanks.
noglider is online now
Old 06-21-18, 03:38 PM
  #10
jyl
Senior Member

jyl's Avatar

Join Date: Aug 2006
Location: Portland OR
Posts: 7,515

Bikes: 61 Bianchi Specialissima 71 Peugeot G50 7? P'geot PX10 74 Raleigh GranSport 75 P'geot UO8 78? Raleigh Team Pro 82 P'geot PSV 86 P'geot PX 91 Bridgestone MB0 92 B'stone XO1 97 Rans VRex 92 Cannondale R1000 94 B'stone MB5 97 Vitus 997

Mentioned: 124 Post(s)
Tagged: 0 Thread(s)
Quoted: 337 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
In the aero mod, does the brake cable and housing run inside the bar? Or does the cable exit the brake body next to the bar and the housing run outside the bar and under the bar tape? Eyeing my SR bike...
jyl is offline
Old 06-22-18, 03:03 PM
  #11
shnibop
Senior Member

shnibop's Avatar

Join Date: Aug 2009
Posts: 734
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Ray Dobbins site: Masi GC


shnibop is offline
Old 06-22-18, 03:17 PM
  #12
Old Fireleg
Senior Member

Old Fireleg's Avatar

Join Date: Oct 2012
Posts: 132

Bikes: '76 Colnago Super NR,'83 Romani Aero KL/SP SR, '85 Mino Denti Aero Master CR, '86 ALAN Cyclo-cross DA, '89 Bottecchia SLX CR, '90 Colnago Master Piu CR

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Likes: 0
Liked 0 Times in 0 Posts

Here is the crazy another semi-aero way.
Old Fireleg is offline
Old 06-22-18, 10:20 PM
  #13
SteelCharlie
Senior Member

Join Date: Nov 2014
Posts: 99

Bikes: Caylor, Basso, Sannino, Colnago, Masi

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I recall seeing a few of the mutilated levers around that time. None of them seemed to work all that well and of course on a TT bike they didn't have to. I'm not an aero hater or above using the aero levers. I have a pair of early Shimano aero levers with white hoods on my Colnago Super and feel no shame whatsoever. And they work just fine and have for some considerable time now.
SteelCharlie is offline
Old 06-23-18, 04:18 AM
  #14
Old Fireleg
Senior Member

Old Fireleg's Avatar

Join Date: Oct 2012
Posts: 132

Bikes: '76 Colnago Super NR,'83 Romani Aero KL/SP SR, '85 Mino Denti Aero Master CR, '86 ALAN Cyclo-cross DA, '89 Bottecchia SLX CR, '90 Colnago Master Piu CR

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by jyl View Post
In the aero mod, does the brake cable and housing run inside the bar? Or does the cable exit the brake body next to the bar and the housing run outside the bar and under the bar tape? Eyeing my SR bike...
I think both of these solutions are feasible, though I only saw the in-bar variation. Probably the Modolo Kronos provided the pattern where the cable could be only inside. (There was someone who dropped out of the plastic house's corner to guide the cable under the bar tape.) At the other and later aero levers ( C-Record, Shimano AX and 7400, Aero GC), the out-bar was more common.
Old Fireleg is offline
Old 06-23-18, 03:33 PM
  #15
SteelCharlie
Senior Member

Join Date: Nov 2014
Posts: 99

Bikes: Caylor, Basso, Sannino, Colnago, Masi

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
The cable holes in the bars provided fine places for the bars to break and what with Joe Blow doing it the breakage was not uncommon. But of course, there were always people who just had to try it hahahaha Gotta love that can do attitude ..................
SteelCharlie is offline
Old 06-24-18, 11:39 AM
  #16
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,765
Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 971 Post(s)
Likes: 0
Liked 5 Times in 5 Posts
I have a Giro D' Italia Cinelli bars that game with my Montello when I bought it as the third owner. It has holes on the bar where the tops of the lever bodies land, when installed and on the reinforcing sleeve on both side of the knurled surface for the stem to clamp on. First I thought it was a home made jobbie, but after examining the way the holes were drilled, I determined that it was done by Cinelli at their factory as it looks like you need to use specialized drilling equipment to come up with the unusual angled extended mousehole shaped (domed on one end and flat on the other) profile the holes near the stem has. I also saw another example in the net with exactly the same shaped holes, further evidence that Cinelli did issue bars with holes drilled for routing cables in them. I guess eventually they just went to the grooved bar design that must be much easier to produce and does not bring up the question about possible structural compromise from drilling the bars.....
the GDI bars now live on my just completed Bottechia. The brake cables were a bit of a challenge to install, but after doing one side with the help of some string and a powerful vacuum cleaner, the other side was a cinch after that....
Chombi1 is offline
Old 06-24-18, 02:57 PM
  #17
Old Fireleg
Senior Member

Old Fireleg's Avatar

Join Date: Oct 2012
Posts: 132

Bikes: '76 Colnago Super NR,'83 Romani Aero KL/SP SR, '85 Mino Denti Aero Master CR, '86 ALAN Cyclo-cross DA, '89 Bottecchia SLX CR, '90 Colnago Master Piu CR

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Chombi1 View Post
I have a Giro D' Italia Cinelli bars that game with my Montello when I bought it as the third owner. It has holes on the bar where the tops of the lever bodies land, when installed and on the reinforcing sleeve on both side of the knurled surface for the stem to clamp on. First I thought it was a home made jobbie, but after examining the way the holes were drilled, I determined that it was done by Cinelli at their factory as it looks like you need to use specialized drilling equipment to come up with the unusual angled extended mousehole shaped (domed on one end and flat on the other) profile the holes near the stem has. I also saw another example in the net with exactly the same shaped holes, further evidence that Cinelli did issue bars with holes drilled for routing cables in them. I guess eventually they just went to the grooved bar design that must be much easier to produce and does not bring up the question about possible structural compromise from drilling the bars.....
the GDI bars now live on my just completed Bottechia. The brake cables were a bit of a challenge to install, but after doing one side with the help of some string and a powerful vacuum cleaner, the other side was a cinch after that....
Thanks for the info!
So far I only thought the 3ttt Paris-Roubaix was the only factory aero bar in this era. Although I saw some pictures of Cinelli, but I thought the framebuilder was drilling the holes on it. For example, on this sensational Ciöcc.

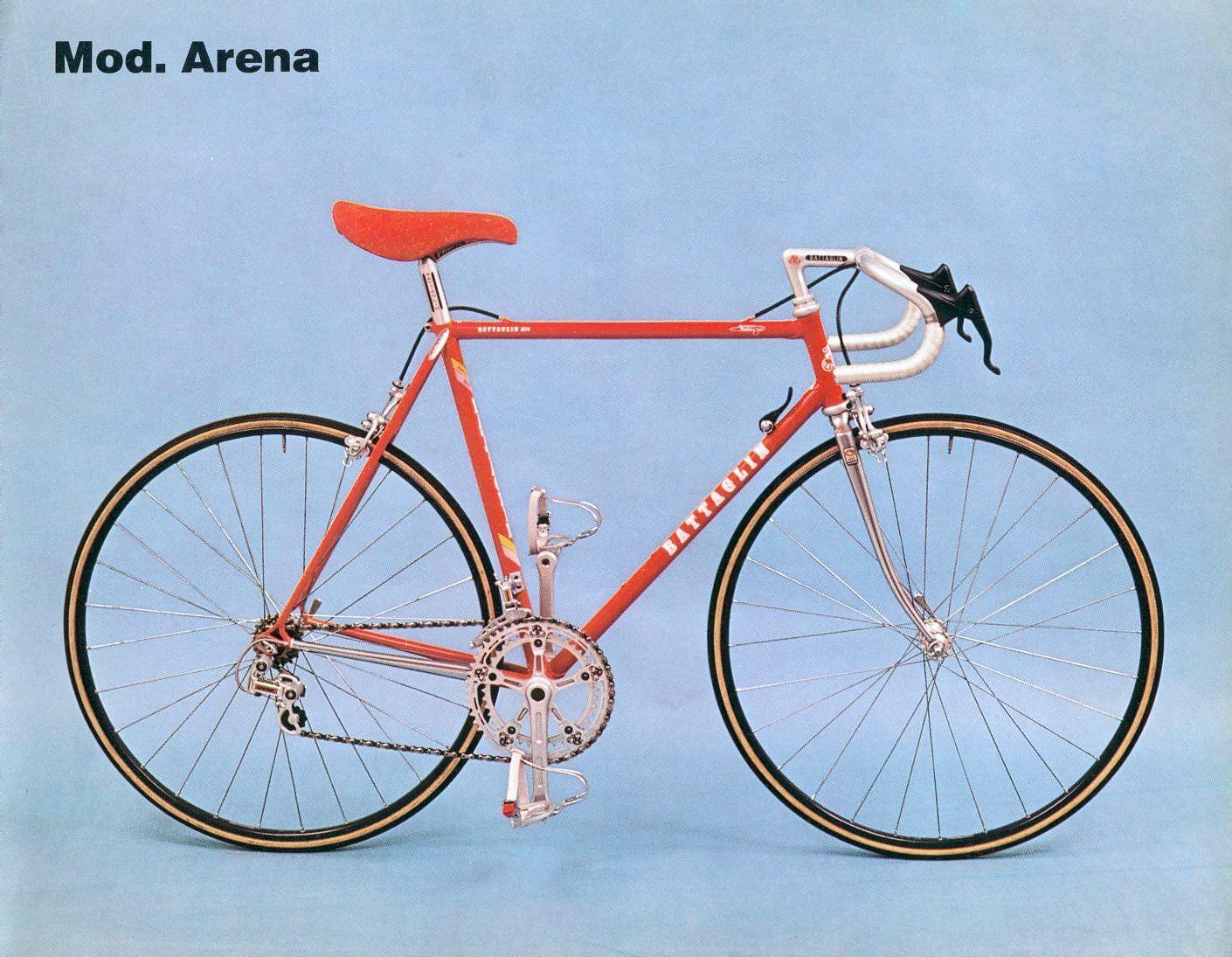

or this aero Battaglin
Old Fireleg is offline
Old 06-24-18, 05:22 PM
  #18
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,341
Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 936 Post(s)
Likes: 0
Liked 13 Times in 11 Posts
Interesting the position of the Modolo Aero levers on both of the bikes imaged for a catalog.

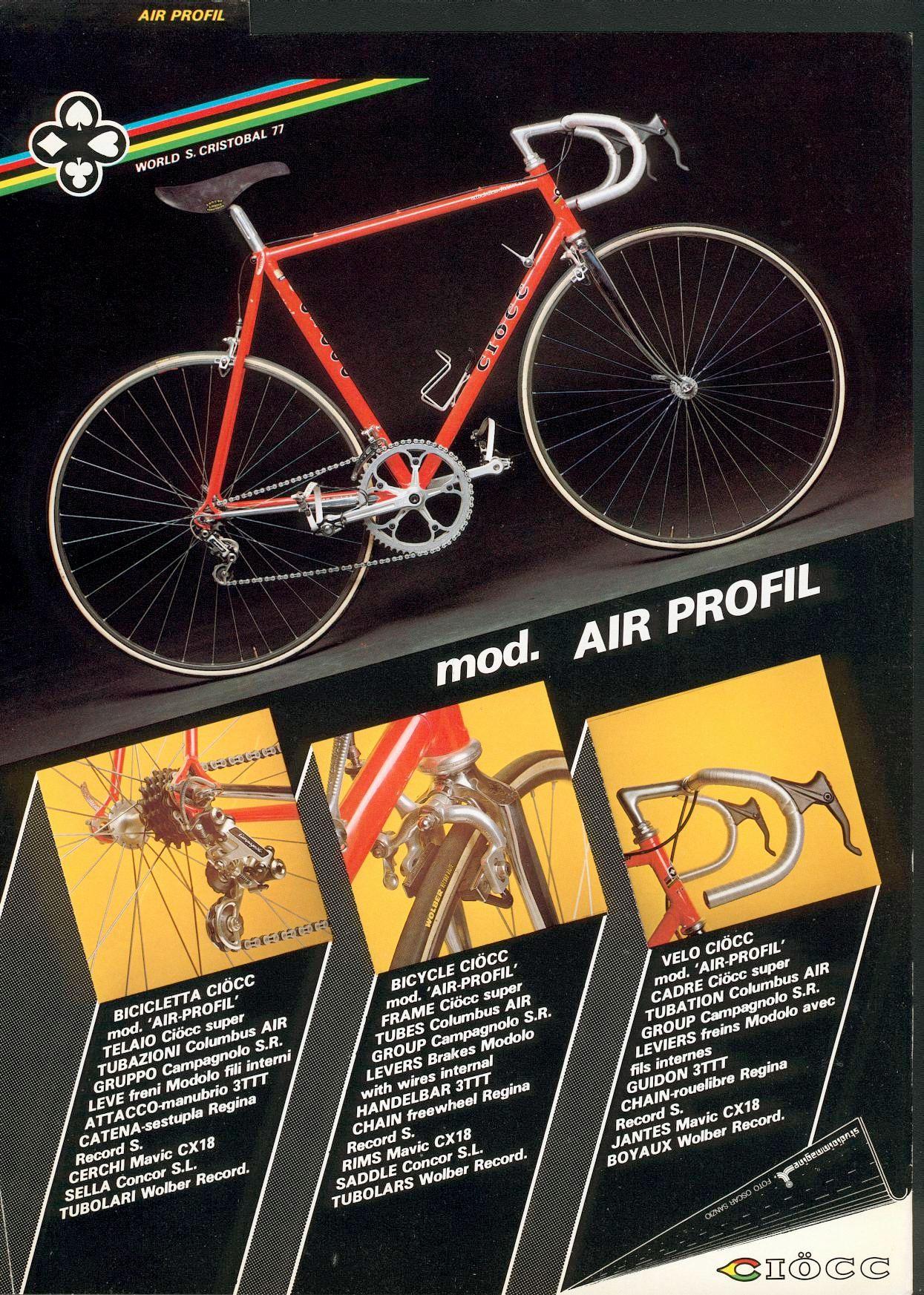

Note the size of those chainrings on the Ciocc, and the weird angle of the front brake and fork orientation in the inset image.

I bought a bike with those levers, nice seller provided me a set of NOS NIP hoods for same.
I removed the levers and they sit in a box.
repechage is offline
Old 06-25-18, 12:41 AM
  #19
Miloburnz
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Mallorca,Spain
Posts: 22

Bikes: BH Turbo single speed,Tommasini Super Prestige,Torrot Tourist ,Orbea MTB,95 Vanni,Detto,Colnago Super,Hans Lutz.

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Old Fireleg View Post

Here is the crazy another semi-aero way.
That is something completely different😝
Miloburnz is offline
Old 06-25-18, 05:46 AM
  #20
Old Fireleg
Senior Member

Old Fireleg's Avatar

Join Date: Oct 2012
Posts: 132

Bikes: '76 Colnago Super NR,'83 Romani Aero KL/SP SR, '85 Mino Denti Aero Master CR, '86 ALAN Cyclo-cross DA, '89 Bottecchia SLX CR, '90 Colnago Master Piu CR

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Note the size of those chainrings on the Ciocc, and the weird angle of the front brake and fork orientation in the inset image.
Yes, the size of the chainring and the angle of the fork contradict each other. Maybe on a team TT race it be useful?

The front brake position is similar to Hinault's Gitane:




At that time, they experimented with them. On Daniel Gisiger's Bottecchia mounted the rear brake to front of the seat stays, similar to the Colnago Oval CX.

Old Fireleg is offline
Old 06-25-18, 10:29 AM
  #21
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,666

Bikes: 8

Mentioned: 188 Post(s)
Tagged: 0 Thread(s)
Quoted: 6836 Post(s)
Likes: 0
Liked 215 Times in 179 Posts
Scott 'superbrake' was shown with the cable head, and housing reversed,
in a non modified brake lever,

BITD. like done on that Moser TT bike.
