Fork thread damage

Old 11-08-18, 07:06 PM
  #1
vintagerando
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Connecticut
Posts: 1,950
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 432 Post(s)
Liked 18 Times in 15 Posts
Fork thread damage

I picked up this fork on ebay. The headset cups were strategically left on, hiding the damage. The damage goes all the way around; more extensive than the photo shows.
Fixing this would be expensive, correct? I had communications with Seller prior to buying; i got the feeling he know little to nothing about bikes. The damage looks shiny and fresh. I think he just took a pipe wrench and forced the headset off. I have to decide if I want to do a return.
The bit of reading i did, it appears to be a bigger job than I could do. The threading metal to stripped right off in places; no metal to re-thread.
Any thoughts?
__________________
1967 Frejus
1968 Peugeot PX-10
1983 Peter Mooney
1995 Waterford 1200
1996 Waterford 1200
2003 Dahon Speed P8
2013 Rawland Stag
2016 Giant Defy Advanced Pro 0
vintagerando is offline
Old 11-08-18, 07:51 PM
  #2
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,407

Bikes: Several, mostly not name brands.

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 1699 Post(s)
Liked 63 Times in 43 Posts
It's hard to tell from the picture whether the threads are damaged or just clogged with aluminum debris from an aluminum headset part. If the latter, simply chasing the threads with a die or thread file may be all that is needed.

If the threads are truly damaged, the damaged area can be filled with brass and new threads cut into the brass. This is a job for a framebuilder, but it's not particularly difficult if you have the tools and equipment. The threaded portion of the steer tub is far enough away from any visible painted areas on the fork, so paint damage is unlikely from the brazing heat.
JohnDThompson is offline
Old 11-08-18, 08:25 PM
  #3
3alarmer
******

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 17,278

Bikes: old ones

Mentioned: 227 Post(s)
Tagged: 0 Thread(s)
Quoted: 14550 Post(s)
Liked 75 Times in 64 Posts
Originally Posted by vintagerando View Post
I picked up this fork on ebay. The headset cups were strategically left on, hiding the damage. The damage goes all the way around; more extensive than the photo shows.
Fixing this would be expensive, correct? I had communications with Seller prior to buying; i got the feeling he know little to nothing about bikes. The damage looks shiny and fresh. I think he just took a pipe wrench and forced the headset off. I have to decide if I want to do a return.
The bit of reading i did, it appears to be a bigger job than I could do. The threading metal to stripped right off in places; no metal to re-thread.
Any thoughts?
...have you tested it in the frame you want to use it in ? If the head tube and stack height of your chosen headset in use is enough shorter than the bike it came out of, you should be able to just avoid the portion with the damaged threads, and shorten the fork steerer a little bit. But yeah, I can't tell whether the threads are damaged, or you just have a bunch of aluminum clogging things up in there.

Clean the threads up with a wire brush and see where you're at then.
3alarmer is online now
Old 11-08-18, 08:32 PM
  #4
vintagerando
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Connecticut
Posts: 1,950
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 432 Post(s)
Liked 18 Times in 15 Posts
It was sold with the old headset screwed on by hand. The head set cups, and lock nut, spacer, etc. was hiding the threading. When I go the fork, I hand screwed the headset pieces off; shreds of alum fell out. This was recently damaged and the headset screwed back on to cover the damage.
__________________
1967 Frejus
1968 Peugeot PX-10
1983 Peter Mooney
1995 Waterford 1200
1996 Waterford 1200
2003 Dahon Speed P8
2013 Rawland Stag
2016 Giant Defy Advanced Pro 0
vintagerando is offline
Old 11-08-18, 08:46 PM
  #5
xiaoman1
Senior Member

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angeles
Posts: 1,989

Bikes: Paramounts, PX-10s, Mondias, Motobecane Grand Record, Specialized Allez Carbon, and Nishiki Tri-A

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 324 Post(s)
Likes: 0
Liked 10 Times in 8 Posts
Is it just me or are the threads damaged vertically ..upper left of the tube? If not wire brush and chase it with a headset nut a little at a timeIf that does not work send it back.
Ben
__________________
Paramount, Mondia, Px-10, Moto
xiaoman1 is offline
Old 11-08-18, 08:56 PM
  #6
vintagerando
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Connecticut
Posts: 1,950
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 432 Post(s)
Liked 18 Times in 15 Posts

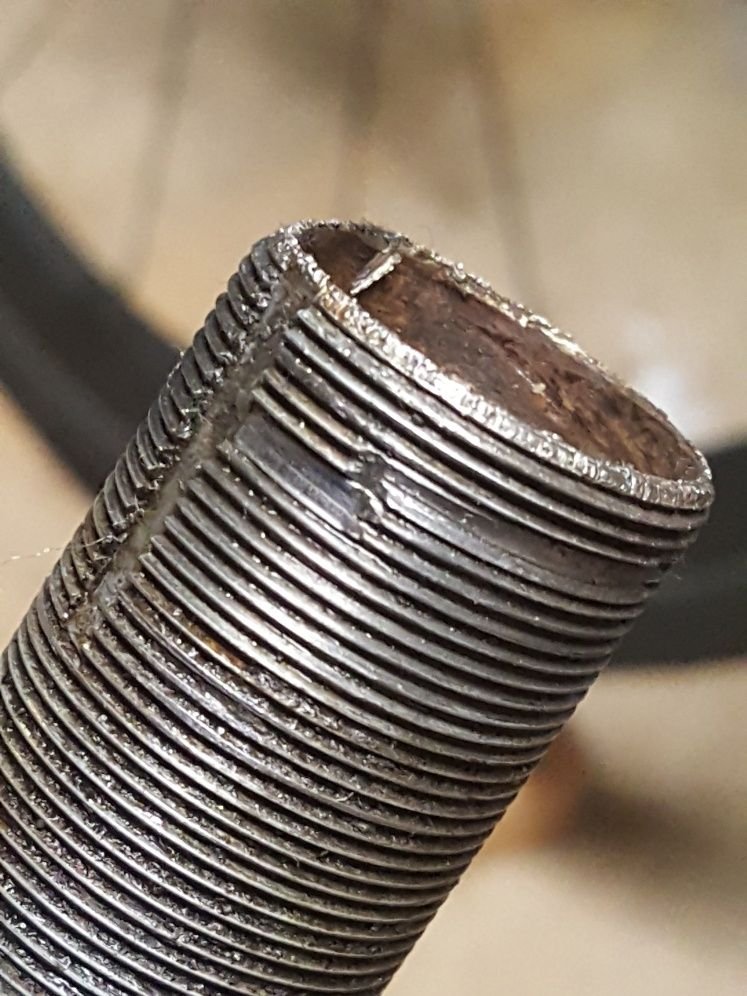

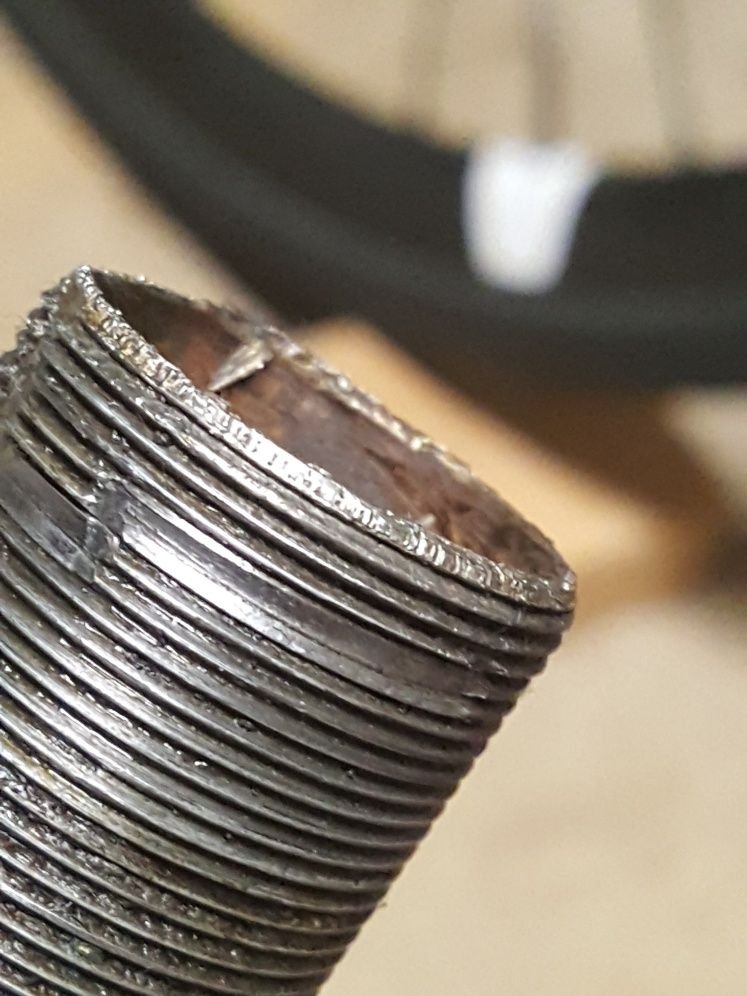

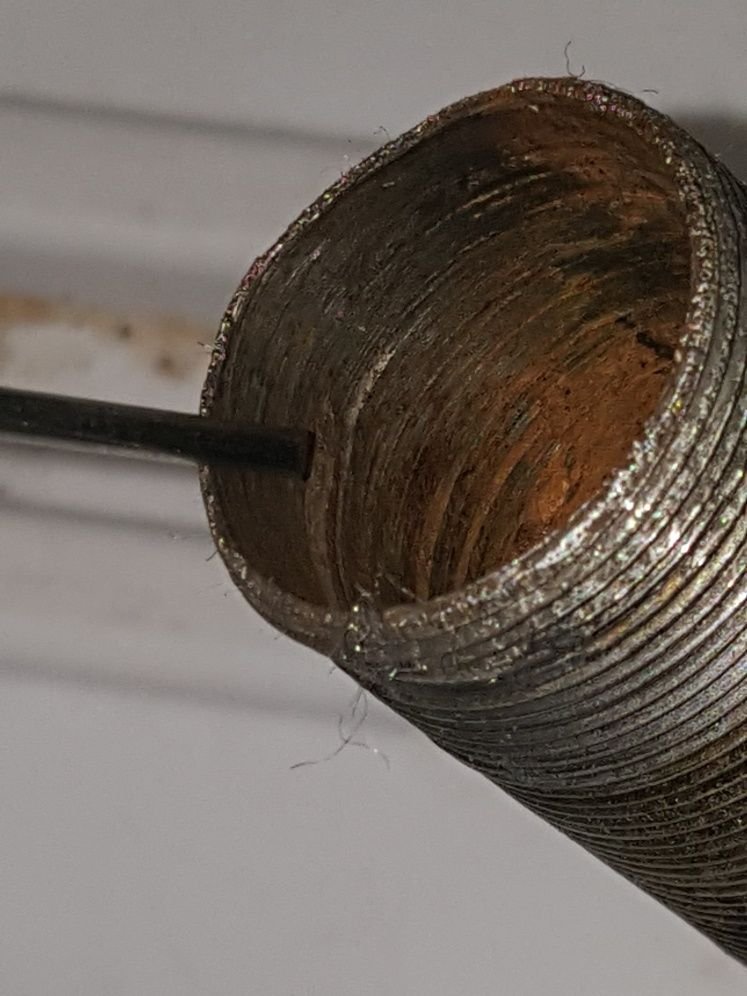

more pics
__________________
1967 Frejus
1968 Peugeot PX-10
1983 Peter Mooney
1995 Waterford 1200
1996 Waterford 1200
2003 Dahon Speed P8
2013 Rawland Stag
2016 Giant Defy Advanced Pro 0
vintagerando is offline
Old 11-08-18, 08:59 PM
  #7
vintagerando
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Connecticut
Posts: 1,950
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 432 Post(s)
Liked 18 Times in 15 Posts
Originally Posted by xiaoman1 View Post
Is it just me or are the threads damaged vertically ..upper left of the tube? If not wire brush and chase it with a headset nut a little at a timeIf that does not work send it back.
Ben
No, what you are seeing is that vertical space for the tooth of the locknut. Not sure if I am using the right terms; on the locknut and/or spacer is a tooth that prevents the headset parts from slipping (i believe)
__________________
1967 Frejus
1968 Peugeot PX-10
1983 Peter Mooney
1995 Waterford 1200
1996 Waterford 1200
2003 Dahon Speed P8
2013 Rawland Stag
2016 Giant Defy Advanced Pro 0
vintagerando is offline
Old 11-08-18, 09:01 PM
  #8
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 9,151

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac

Mentioned: 144 Post(s)
Tagged: 0 Thread(s)
Quoted: 599 Post(s)
Likes: 0
Liked 36 Times in 33 Posts
I have seen this sort of steering tube damage several times. It is caused when the tap washer wants to turn with the nut, when undoing it. Generally a little wire brushing and, perhaps, some smoothing with a smooth file is all that is needed to get it all good enough to use and without any added danger.

Perhaps there are other issues that my old eyes can't see. Were it my fork, I would give it a try. I would also contact the seller and let him or her know that the fork arrived damaged. Who knows, he or she might be pretty decent about it.
__________________
Learn how to find, restore and maintain vintage road bicycles at... MY "TEN SPEEDS"
randyjawa is offline
Old 11-08-18, 09:11 PM
  #9
xiaoman1
Senior Member

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angeles
Posts: 1,989

Bikes: Paramounts, PX-10s, Mondias, Motobecane Grand Record, Specialized Allez Carbon, and Nishiki Tri-A

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 324 Post(s)
Likes: 0
Liked 10 Times in 8 Posts
Originally Posted by vintagerando View Post
No, what you are seeing is that vertical space for the tooth of the locknut. Not sure if I am using the right terms; on the locknut and/or spacer is a tooth that prevents the headset parts from slipping (i believe)
Great, try the wire brush and chase it.... it should be all good.
Best, Ben
__________________
Paramount, Mondia, Px-10, Moto
xiaoman1 is offline
Old 11-08-18, 09:16 PM
  #10
vintagerando
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Connecticut
Posts: 1,950
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 432 Post(s)
Liked 18 Times in 15 Posts
Originally Posted by randyjawa View Post
I have seen this sort of steering tube damage several times. It is caused when the tap washer wants to turn with the nut, when undoing it. Generally a little wire brushing and, perhaps, some smoothing with a smooth file is all that is needed to get it all good enough to use and without any added danger.

Perhaps there are other issues that my old eyes can't see. Were it my fork, I would give it a try. I would also contact the seller and let him or her know that the fork arrived damaged. Who knows, he or she might be pretty decent about it.
The threading is gone in the effected areas; nothing to file and clean up; I paid a good price for it. I am protected by ebays Buyer Guarantee. Maybe it wasn't done on purpose, but the headset parts (incomplete) were hand screwed back on covering the damage ( in photos on ebay) . I would not have paid what I paid if I knew that. I guess what i am trying to determine; is there going to be an issue when I try to use this fork. If so, I need to act now and return it.
__________________
1967 Frejus
1968 Peugeot PX-10
1983 Peter Mooney
1995 Waterford 1200
1996 Waterford 1200
2003 Dahon Speed P8
2013 Rawland Stag
2016 Giant Defy Advanced Pro 0
vintagerando is offline
Old 11-08-18, 09:27 PM
  #11
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 9,151

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac

Mentioned: 144 Post(s)
Tagged: 0 Thread(s)
Quoted: 599 Post(s)
Likes: 0
Liked 36 Times in 33 Posts
I am pretty sure that I could repair the threads and that the strength lost would not be significant enough for me to worry about. The damage is above the tab washer, Only the lock nut will be effected and it does not have torqued all that tight, in my opinion. That said...

Were it me, I would ask for a complete refund rather than have something on my bike bother me, even if it is not a serious issue. Based on your description of the seller's lack of vintage bicycle knowledge, it could be an honest mistake. However...

The damage should have been disclosed and shown in the pictures and a full refund could be had, based on that undisclosed damage.
__________________
Learn how to find, restore and maintain vintage road bicycles at... MY "TEN SPEEDS"
randyjawa is offline
Old 11-08-18, 09:31 PM
  #12
Raleigh74
Senior Member

Raleigh74's Avatar

Join Date: Jul 2018
Location: Greenville, SC / Asheville, NC
Posts: 264

Bikes: '74 Raleigh Professional, '73 Raleigh Grand Prix, '84 Nishiki Medalist, '85 Gazelle Champion Mondial AB, '81 Peugeot Course, '79 Univega Gran Rally

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 60 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by 3alarmer View Post
...have you tested it in the frame you want to use it in ? If the head tube and stack height of your chosen headset in use is enough shorter than the bike it came out of, you should be able to just avoid the portion with the damaged threads, and shorten the fork steerer a little bit. But yeah, I can't tell whether the threads are damaged, or you just have a bunch of aluminum clogging things up in there.

Clean the threads up with a wire brush and see where you're at then.

^ I think this is your answer, and if in doubt return and wait it out for something better. My $0.02
Raleigh74 is offline
Old 11-08-18, 10:14 PM
  #13
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,407

Bikes: Several, mostly not name brands.

Mentioned: 110 Post(s)
Tagged: 0 Thread(s)
Quoted: 1699 Post(s)
Liked 63 Times in 43 Posts
Originally Posted by vintagerando View Post


more pics
A thread file or chasing with a die ought to be able to clean that up.
JohnDThompson is offline
Old 11-08-18, 11:00 PM
  #14
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: San Francisco Bay Area
Posts: 2,420

Bikes: fewer (n-1)

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 552 Post(s)
Likes: 0
Liked 11 Times in 10 Posts
If you are uncomfortable cleaning up the threads yourself you could take it to a local framebuilder or shop with the correct die. Get a quote from them and ask the seller for a refund of that amount.
Brent
obrentharris is offline
Old 11-09-18, 01:02 AM
  #15
MarcoBianchi
Senior Member

MarcoBianchi's Avatar

Join Date: Jul 2014
Location: Saragossa. Spain
Posts: 254

Bikes: Peugeot Mont Blanc . Bianchi 28c 1980. Coppi Giro di Lombardia. Vitoria Vintage 1990. Orbea Luarca 1977. Trek 950.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 47 Post(s)
Likes: 0
Liked 4 Times in 3 Posts
1-Refund.
2-Framebuilder.
3-DIY
https://www.amazon.com/Nicholson-Thr.../dp/B07GZ3WC9B.
MarcoBianchi is offline
Old 11-09-18, 08:18 AM
  #16
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 2,863
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 652 Post(s)
Liked 49 Times in 42 Posts
Originally Posted by randyjawa View Post
I have seen this sort of steering tube damage several times. It is caused when the tap washer wants to turn with the nut, when undoing it.
This explains it best, when you look at the location, and the fact that it extends one direction from the slot for the notch on the washer. So the damage should coincide with the location of the washer, and you should be GTG. I've always considered that design to be lacking; it's far too easy to turn the cup and locknut at the same time, thus turning the washer and doing exactly ^^^^^^ this. The slot should be deeper and the notch larger, or there should be multiple slots/notches, or something.
madpogue is offline
Old 11-09-18, 08:44 AM
  #17
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 9,151

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac

Mentioned: 144 Post(s)
Tagged: 0 Thread(s)
Quoted: 599 Post(s)
Likes: 0
Liked 36 Times in 33 Posts
The slot should be deeper and the notch larger, or there should be multiple slots/notches, or something.
Perhaps but that would cause other issues, in my opinion. On more than one occasion, I have seen that groove in the steering stem actually split, thanks, primarily, to the stem being inserted too little. Once that happens, repair becomes wayyyy more difficult.

Knowing the turning tab washer to be a problem with many bikes, I lubricate the faces of the tab washer and top nut. This helps to prevent the washer from trying to follow the top nut during installation and removal. It does not always work, but is better than saying "oops". My opinion, of course.
__________________
Learn how to find, restore and maintain vintage road bicycles at... MY "TEN SPEEDS"

Last edited by randyjawa; 11-09-18 at 10:58 AM.
randyjawa is offline
Old 11-09-18, 08:55 AM
  #18
belacqua
Senior Member

Join Date: Sep 2008
Location: Kansas City
Posts: 363
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 4 Times in 3 Posts
I would not sweat it too much. This damage is common and seems to happen when people try to force non-rotating keyed spacers to "unscrew" when adjusting or removing the headset.

I have had really good luck just cleaning up the *remaining* threads and using the fork as is. The threaded components still go up and down all right once the threads are cleaned up, and since the stripping occurs where the spacer goes, there's usually adequate threading left for the races and locknut to seat.

PS now I see @randyjawa and @madpogue have already pointed this out more precisely and accurately
belacqua is offline
Old 11-09-18, 02:35 PM
  #19
lacro
Senior Member

Join Date: Mar 2018
Posts: 139
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I don't think that's something major to worry about. I would fix it and carry on. I find these thread files very handy for cleaning up damaged threads. A re-threading die (chaser) tends to cause more tear out, but the thread file fixes just the damaged area.

https://www.mscdirect.com/browse/tnp...hoCSxMQAvD_BwE
lacro is offline
Old 11-09-18, 10:00 PM
  #20
randyjawa
Senior Member

randyjawa's Avatar

Join Date: Apr 2007
Location: Thunder Bay, Ontario, Canada - burrrrr!
Posts: 9,151

Bikes: 1958 Rabeneick 120D, 1968 Legnano Gran Premio, Rocky Mountain Cardiac

Mentioned: 144 Post(s)
Tagged: 0 Thread(s)
Quoted: 599 Post(s)
Likes: 0
Liked 36 Times in 33 Posts

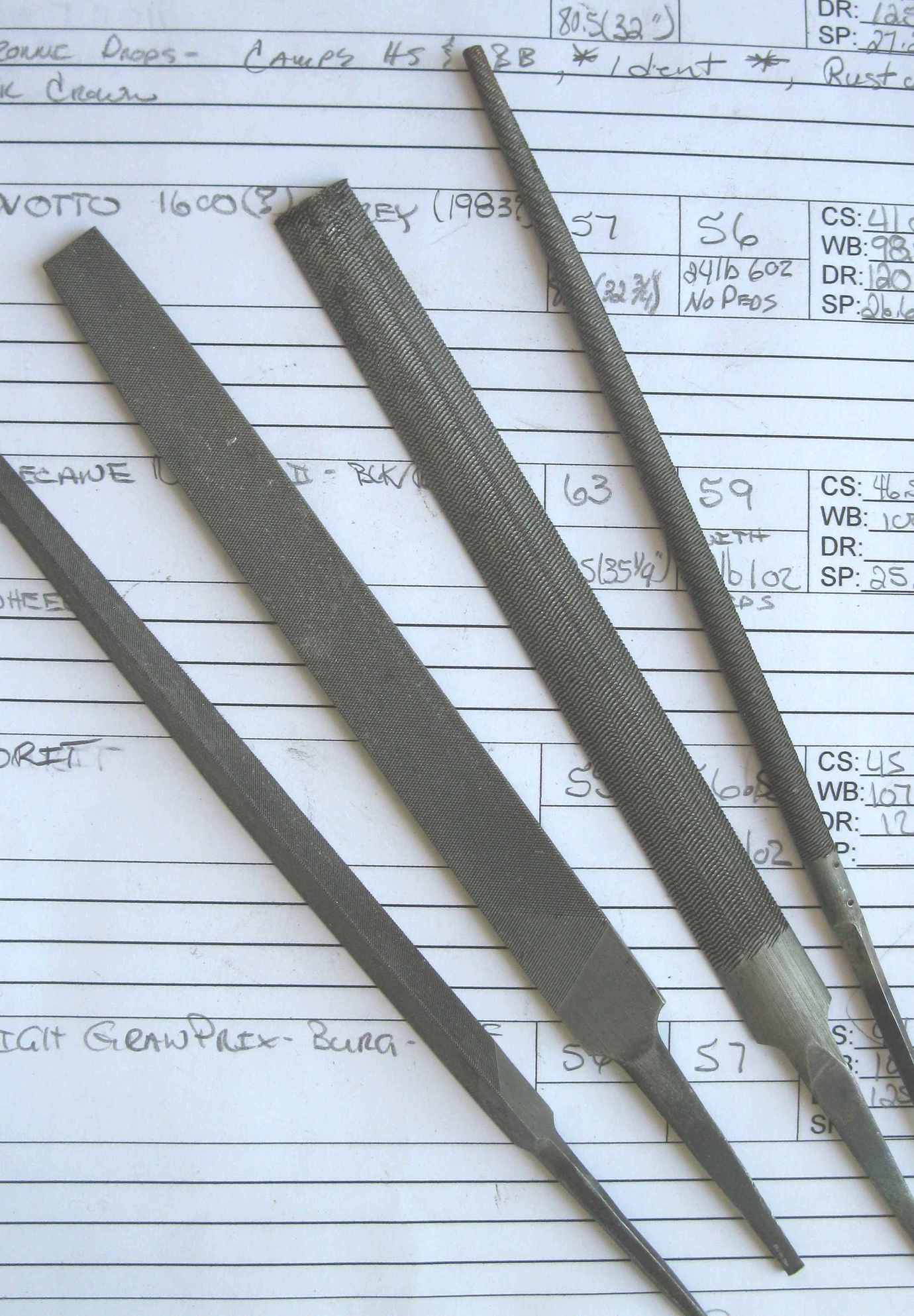

I find these thread files very handy for cleaning up damaged threads.
Ah, my failing memory! I completely forgot that I have a set of thread chasing files, one in metric and the other imperial. That said, I still prefer a small triangular file for cleaning stem threads - lower left in picture...
__________________
Learn how to find, restore and maintain vintage road bicycles at... MY "TEN SPEEDS"
randyjawa is offline
Old 11-09-18, 11:33 PM
  #21
vintagerando
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Connecticut
Posts: 1,950
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 432 Post(s)
Liked 18 Times in 15 Posts
Originally Posted by randyjawa View Post
Ah, my failing memory! I completely forgot that I have a set of thread chasing files, one in metric and the other imperial. That said, I still prefer a small triangular file for cleaning stem threads - lower left in picture...
Well, what do you know. I actually have one of those triangular files. Is the goal to re-shape the thread or remove the squashed threading?
__________________
1967 Frejus
1968 Peugeot PX-10
1983 Peter Mooney
1995 Waterford 1200
1996 Waterford 1200
2003 Dahon Speed P8
2013 Rawland Stag
2016 Giant Defy Advanced Pro 0
vintagerando is offline
Old 11-10-18, 12:43 AM
  #22
vintagerando
Senior Member
Thread Starter

Join Date: Mar 2015
Location: Connecticut
Posts: 1,950
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 432 Post(s)
Liked 18 Times in 15 Posts

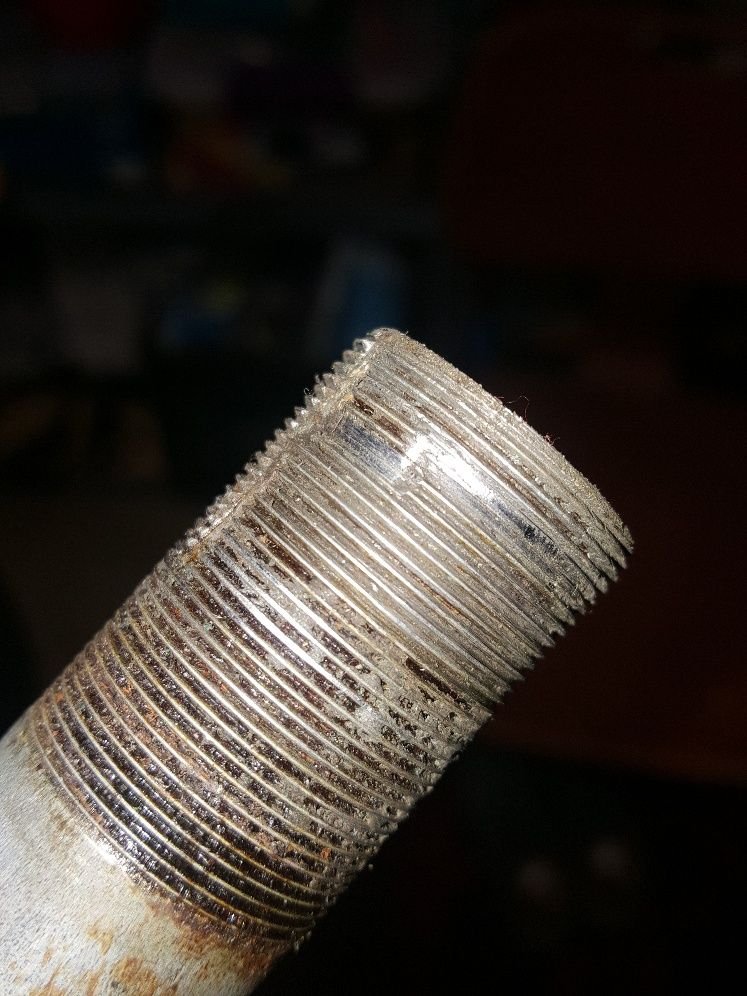

Just made a new discovery. Where the threading was stripped, the tube is collapsing inward, in other words cracking.
I would say its clearly dangerous now. The question now is, can it be cut and still be usable. Without building up the bike the fork would go on, how would I know if its going to be long enough when cut?
__________________
1967 Frejus
1968 Peugeot PX-10
1983 Peter Mooney
1995 Waterford 1200
1996 Waterford 1200
2003 Dahon Speed P8
2013 Rawland Stag
2016 Giant Defy Advanced Pro 0
vintagerando is offline
Old 11-10-18, 10:08 AM
  #23
xiaoman1
Senior Member

xiaoman1's Avatar

Join Date: Mar 2014
Location: Weird Coast City of the Angeles
Posts: 1,989

Bikes: Paramounts, PX-10s, Mondias, Motobecane Grand Record, Specialized Allez Carbon, and Nishiki Tri-A

Mentioned: 21 Post(s)
Tagged: 1 Thread(s)
Quoted: 324 Post(s)
Likes: 0
Liked 10 Times in 8 Posts
Send it back and end the worrying...IMHO it is not worth the concern.
Best, Ben
__________________
Paramount, Mondia, Px-10, Moto
xiaoman1 is offline
Old 11-10-18, 10:13 AM
  #24
madpogue
Senior Member

Join Date: Jan 2004
Location: Madison, WI USA
Posts: 2,863
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 652 Post(s)
Liked 49 Times in 42 Posts
If it's long enough for the intended head tube now, it would be too short after cutting it. It might end up long enough for a frame with a shorter head tube, depending on how far down it's threaded,

But why is the inside of the steerer tube so damaged in the first place?
madpogue is offline
Old 11-10-18, 11:15 AM
  #25
GrainBrain
Senior Member

GrainBrain's Avatar

Join Date: Aug 2017
Location: Central Io-way
Posts: 1,229

Bikes: LeMond Zurich, Giant Talon 29er

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 645 Post(s)
Likes: 0
Liked 32 Times in 21 Posts
Originally Posted by vintagerando View Post


Just made a new discovery. Where the threading was stripped, the tube is collapsing inward, in other words cracking.
I would say its clearly dangerous now. The question now is, can it be cut and still be usable. Without building up the bike the fork would go on, how would I know if its going to be long enough when cut?
Bah what a bummer. Clearly damaged from the lock ring tab pushing in. Plus the ID looks like the steerer was rusted in then forcibly turned to remove. Unless this is a unicorn better condition forks aren't hard to find
GrainBrain is offline

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service

Copyright 2018 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
