French Stem Angle

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

French Stem Angle

Old 04-10-19, 02:16 PM
  #1
Revracer
Senior Member
Thread Starter

Revracer's Avatar

Join Date: Dec 2011
Location: Eastern PA, USA
Posts: 182

Bikes: 1973 Schwinn World Voyageur | Francesco Moser SL | 1984 Ross Utopian | St. Etienne 531 | 1981 Peugeot PK10 | 2015 Cannondale SuperSix | 2012 Felt F65X

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Liked 29 Times in 13 Posts
French Stem Angle

I have been staring at my Peugeot PK wondering why it appears the ATAX stem (current plus one prior) appear to point down instead of appearing level. I am super sure there has not been a crash and to the point I have seen this on other French bikes. My Cinelli 1A on the other hand seems to come out level with the ground. I know this is a combination of head tube angle and the stem angle. Is this actually a thing about French bikes?

Easier to pull a pick from the web of an example below, but can post the PK photo later.
Revracer is offline
Old 04-10-19, 07:12 PM
  #2
TenGrainBread
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,589

Bikes: Cherubim, Alps, a few Schwinns

Mentioned: 52 Post(s)
Tagged: 0 Thread(s)
Quoted: 1070 Post(s)
Liked 393 Times in 252 Posts
Is it the OEM stem? It could have been designed for bikes with a slacker head tube angle.
TenGrainBread is offline
Old 04-10-19, 08:42 PM
  #3
Nguyen Dang
Senior Member

Nguyen Dang's Avatar

Join Date: Jun 2016
Location: Saigon - South Vietnam
Posts: 139

Bikes: Saronni Colnago 1982; Battaglin 1982, Centurion Lemans RS 1978, 3Rensho Katana 1978, C. Borghi Olympia 1980, 3Rensho Athlete 1980's, Holdsworth 1980's and more...

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 33 Post(s)
Liked 8 Times in 5 Posts
It looks like you have a track bike stem, not a road bike stem.
Nguyen Dang is offline
Old 04-10-19, 09:30 PM
  #4
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 19,386

Bikes: old ones

Mentioned: 274 Post(s)
Tagged: 0 Thread(s)
Quoted: 20592 Post(s)
Liked 3,645 Times in 2,673 Posts
Is this actually a thing about French bikes?

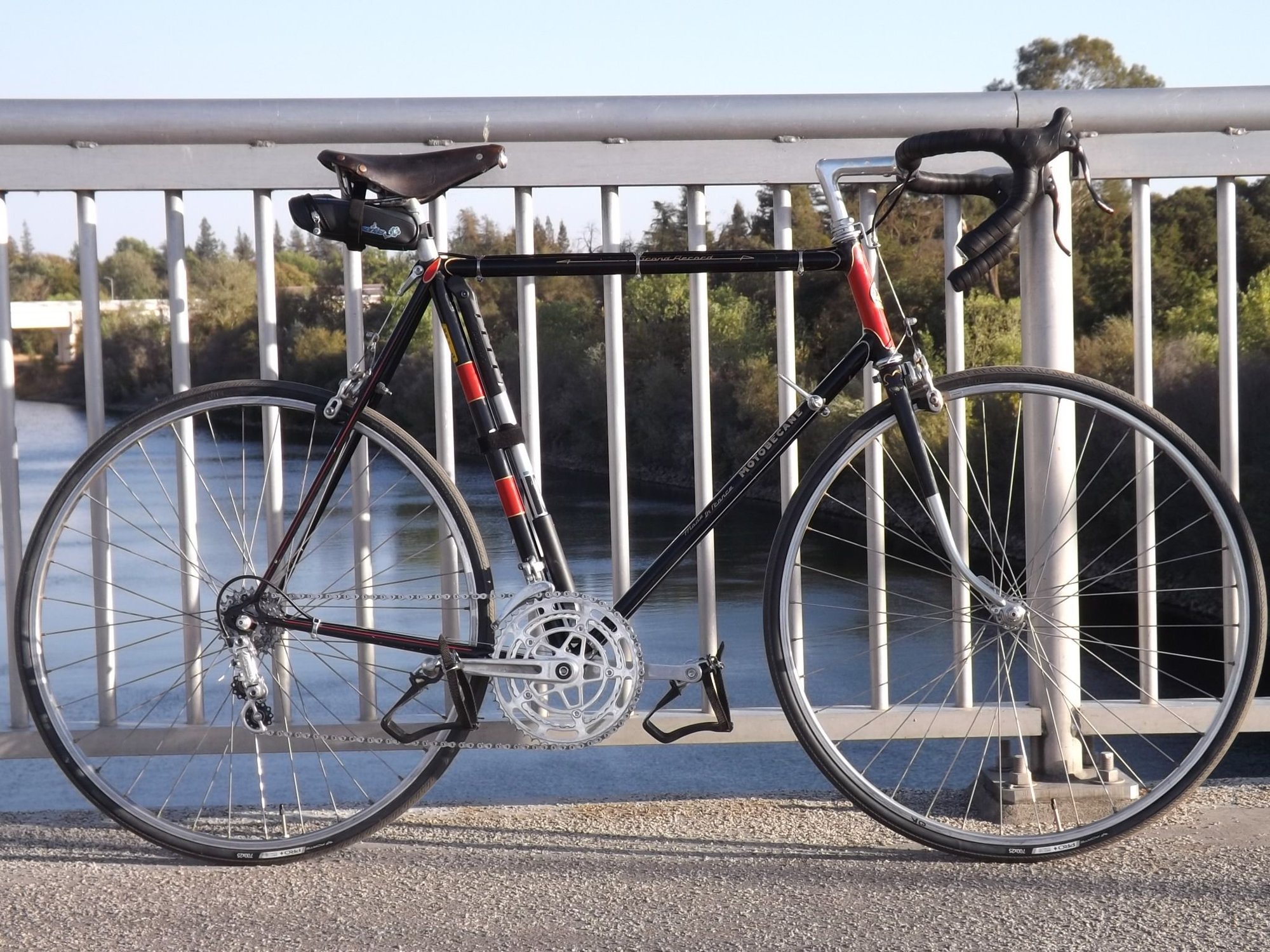

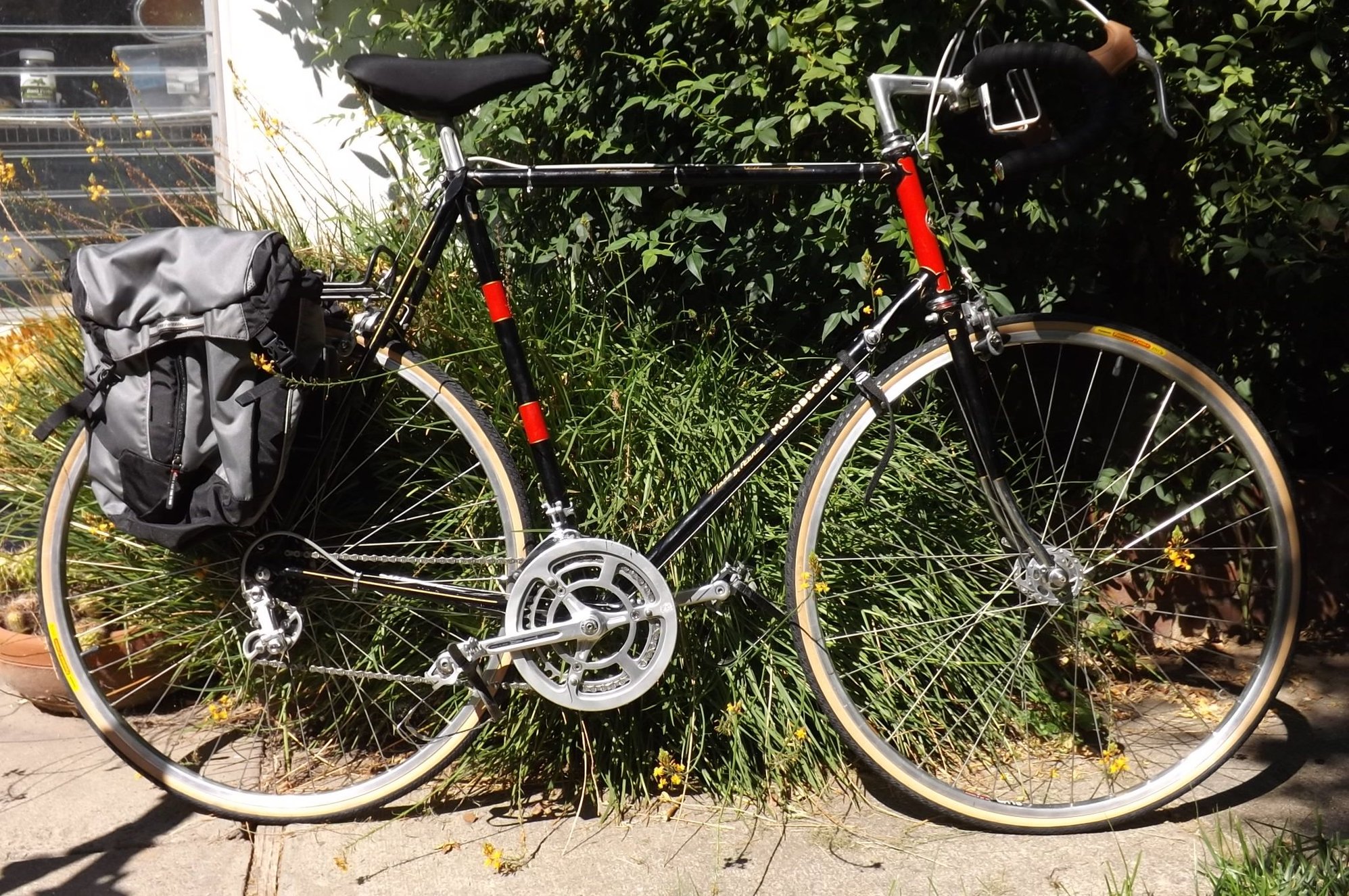

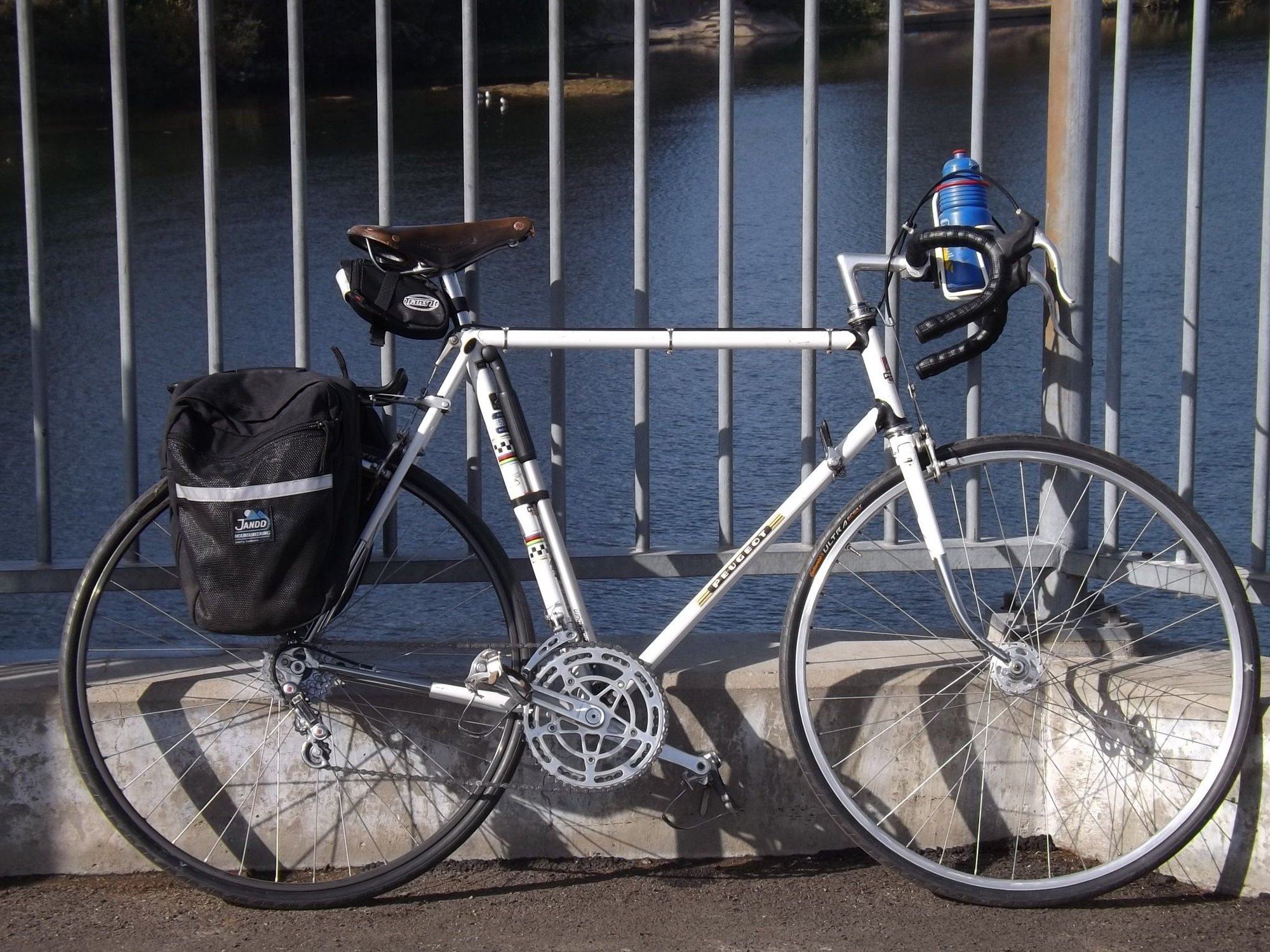

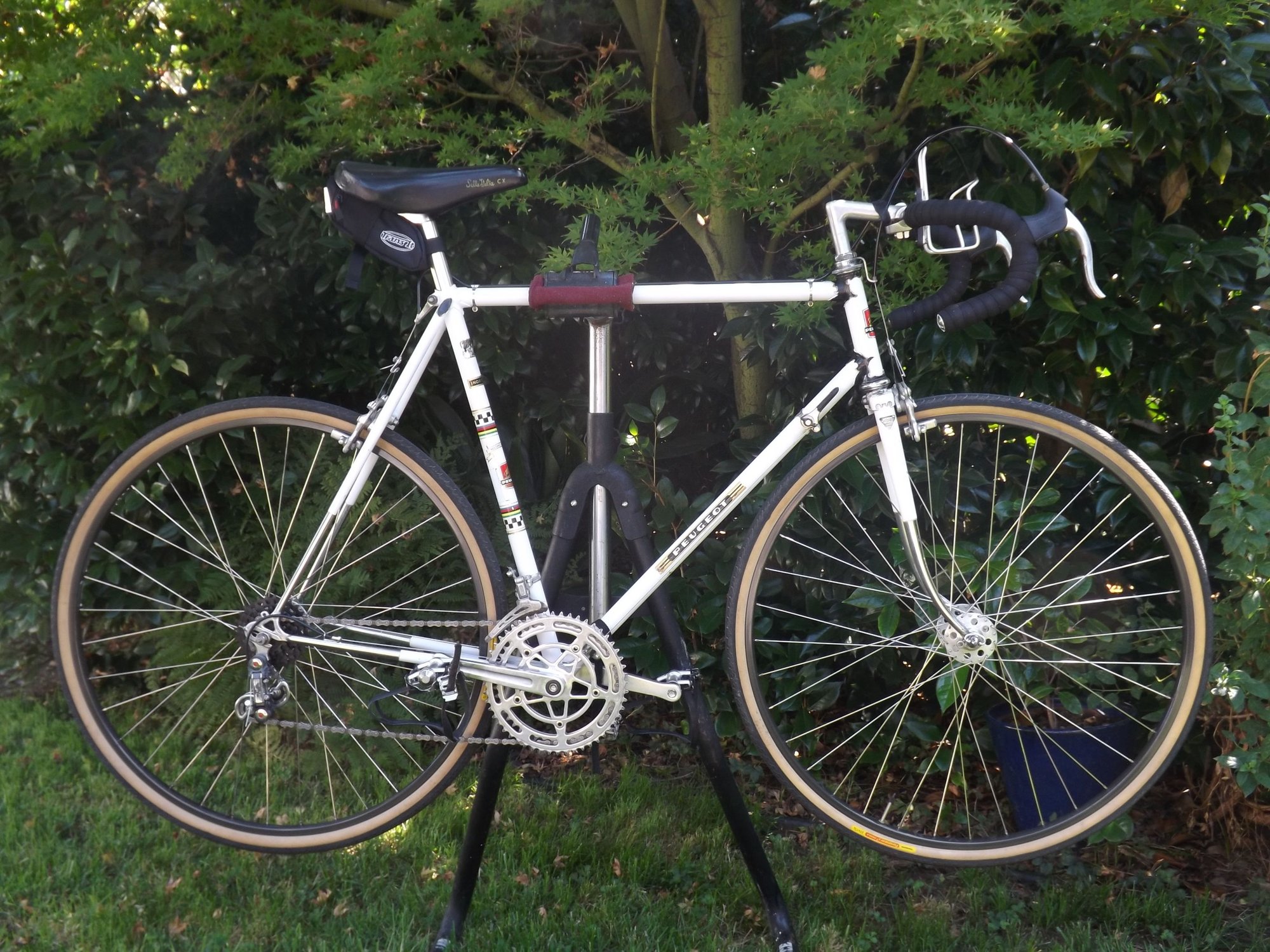

...I think the stems stayed at more or less the same angle. IN the French bicycles I own/have owned from the 1970's, the head tube angles varied wildly over the years. A lot of them got pretty steep when that was the thing. My reference points are Peugeot PX-10's and Moto Grand Record's. I've had examples of each that were both slack and steep from early to mid 70's... I've never noticed a difference in stem angles.
3alarmer is online now
Old 04-10-19, 11:45 PM
  #5
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 7,920

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 112 Post(s)
Tagged: 0 Thread(s)
Quoted: 1044 Post(s)
Liked 473 Times in 337 Posts

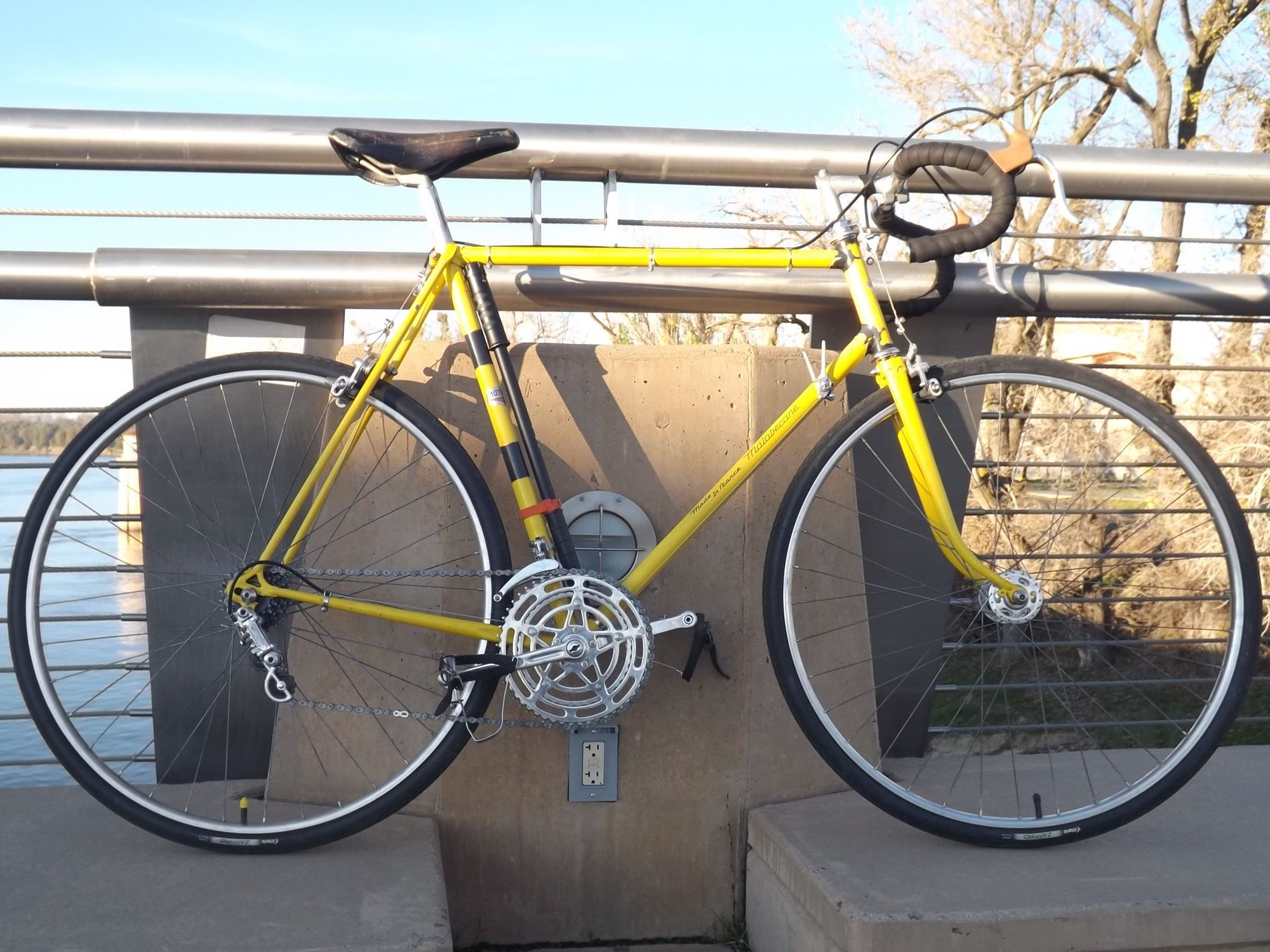

I noticed that the original Japanese stem on this bike pointed a bit downward, even on a bike with a slack 72-degree HT angle.

Now, if the bike had about a 70-degree HT angle, the stem extension would be about level.

dddd is offline
Old 04-11-19, 11:48 AM
  #6
Revracer
Senior Member
Thread Starter

Revracer's Avatar

Join Date: Dec 2011
Location: Eastern PA, USA
Posts: 182

Bikes: 1973 Schwinn World Voyageur | Francesco Moser SL | 1984 Ross Utopian | St. Etienne 531 | 1981 Peugeot PK10 | 2015 Cannondale SuperSix | 2012 Felt F65X

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Liked 29 Times in 13 Posts
Thanks @dddd that does appear to have a similar look to the French bikes and likely due to the head tube angle.

I was searching for the geometry page on the vintage catalogs but was not successful in digging up any on Peugeot angles.
Revracer is offline
Old 04-12-19, 12:17 PM
  #7
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 19,386

Bikes: old ones

Mentioned: 274 Post(s)
Tagged: 0 Thread(s)
Quoted: 20592 Post(s)
Liked 3,645 Times in 2,673 Posts

3alarmer is online now
Old 04-12-19, 12:22 PM
  #8
3alarmer
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: The Big Tomato
Posts: 19,386

Bikes: old ones

Mentioned: 274 Post(s)
Tagged: 0 Thread(s)
Quoted: 20592 Post(s)
Liked 3,645 Times in 2,673 Posts


3alarmer is online now
Old 04-12-19, 06:35 PM
  #9
Kuromori
Senior Member

Join Date: Jan 2019
Posts: 528
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 237 Post(s)
Likes: 0
Liked 81 Times in 62 Posts
Part of it is the styling of the stem. Those stems that taper from skinny at the quill to fat at the bar clamp tend to be designed to be approximately horizontal on the top surface rather than center-to-center horizontal. Stems that taper in the other direction seem to follow no such rule.
Kuromori is offline
Old 04-12-19, 08:32 PM
  #10
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 15,343

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 42 Post(s)
Tagged: 0 Thread(s)
Quoted: 1233 Post(s)
Liked 210 Times in 179 Posts
Originally Posted by 3alarmer View Post

sometime in the 70s Peugeot changed the geometry to steeper angles.
Road Fan is offline
Old 04-15-19, 07:12 AM
  #11
Revracer
Senior Member
Thread Starter

Revracer's Avatar

Join Date: Dec 2011
Location: Eastern PA, USA
Posts: 182

Bikes: 1973 Schwinn World Voyageur | Francesco Moser SL | 1984 Ross Utopian | St. Etienne 531 | 1981 Peugeot PK10 | 2015 Cannondale SuperSix | 2012 Felt F65X

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Liked 29 Times in 13 Posts
@3alarmer what stem is on the Grand Record?
Revracer is offline
Old 04-15-19, 11:31 AM
  #12
Revracer
Senior Member
Thread Starter

Revracer's Avatar

Join Date: Dec 2011
Location: Eastern PA, USA
Posts: 182

Bikes: 1973 Schwinn World Voyageur | Francesco Moser SL | 1984 Ross Utopian | St. Etienne 531 | 1981 Peugeot PK10 | 2015 Cannondale SuperSix | 2012 Felt F65X

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 46 Post(s)
Liked 29 Times in 13 Posts
According to this write up, the Competition PY10 has quite a steep head angle at 75 degrees, definitely explaining the stem / bar that points down.
1974 Peugeot PY10
Revracer is offline
