Bob Jackson painted

Old 04-23-19, 03:05 PM
  #26
Last ride 76
Senior Member

Last ride 76's Avatar

Join Date: Nov 2013
Location: Just moved...1 km S. Now above the "Bike Path" ( River Road, Piermont, NY)
Posts: 1,157

Bikes: Old Bikes: '74 Ron Cooper, Crashed and repaired '76, restored 2015!!! need restoration '74 Witcomb track bike (bought in '75) '75 Carlsbad Masi, bought in '76 New bikes: 84-85 Gios torino "Professional" '76 Olmo Competition C Titiano

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 226 Post(s)
Liked 86 Times in 69 Posts
Am I the only one who sees the problem here?!

Look at the second picture, it's obvious.

C'mon man, if you're going to shoddy* work at least put yer shoes on. Or do better framing*.


That is some beautiful job! Do you feel like the undercoat that the powder coater put on is an improvement over whatever primer you would have normally used?
I had a little overlap with the seat tube decals on my Ron Cooper restoration. I'm the only one who notices. At least, I'm the only one who points it out.

Cheers, Eric *with intent
Last ride 76 is offline
Old 04-23-19, 03:19 PM
  #27
daviddavieboy
Senior Member
Thread Starter

daviddavieboy's Avatar

Join Date: Oct 2013
Location: Great White North
Posts: 627

Bikes: 00' Pinarello Opera, 16' Surly Cross Check, 82' Motobecane jubile sport, 85' Moser Supersprint, 80' Mercier Formule 1, 72' Peugeot AO8, 70' Bob Jackson

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 198 Post(s)
Liked 9 Times in 5 Posts

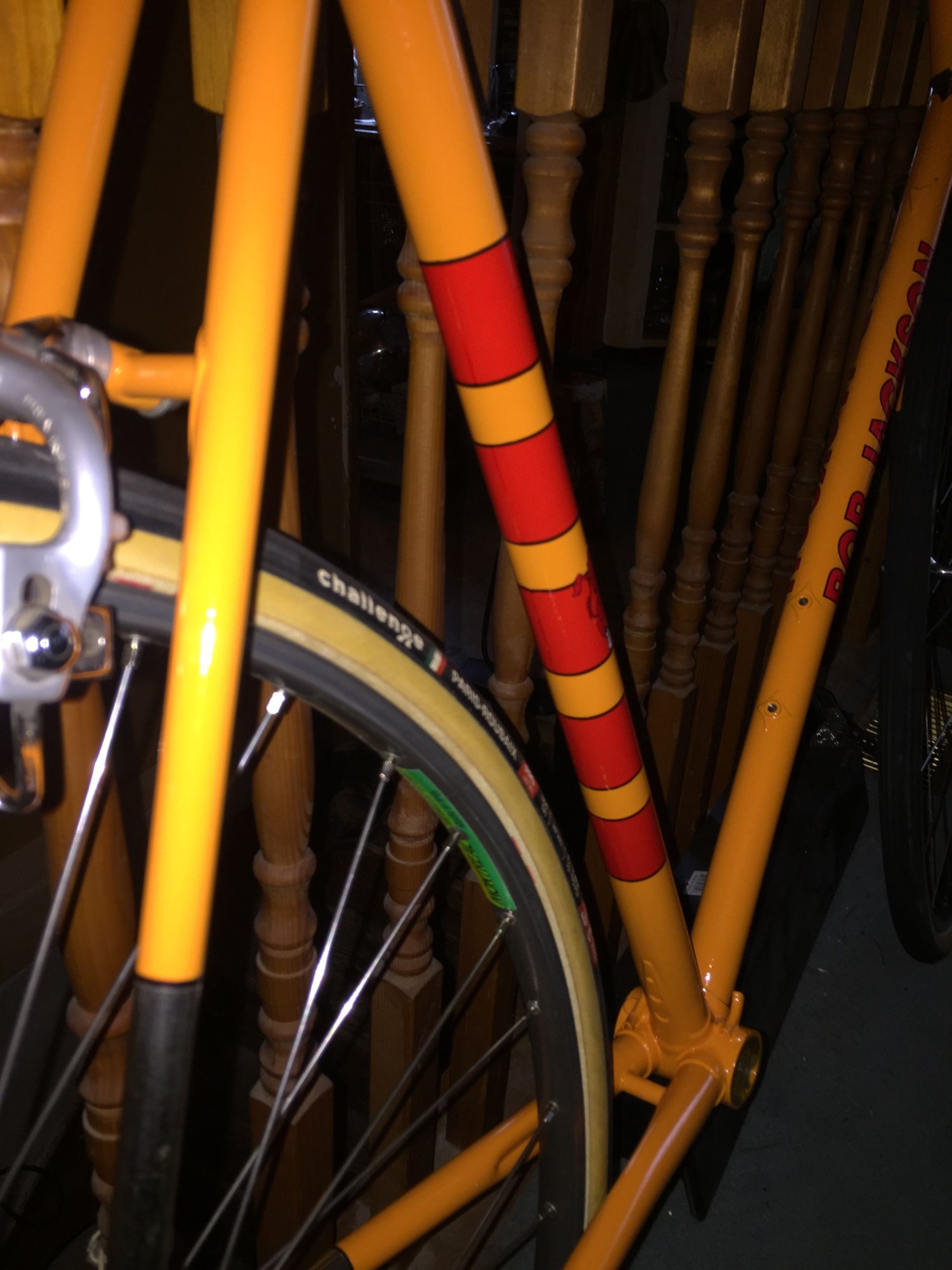

A lot of bother for nothing. The seams all but disappeared after I shot the clear. Looks fantastic IMO. One spot of clear started to sag but I will wet sand it out later this summer.

Originally Posted by Last ride 76 View Post
Am I the only one who sees the problem here?!

Look at the second picture, it's obvious.

C'mon man, if you're going to shoddy* work at least put yer shoes on. Or do better framing*.


That is some beautiful job! Do you feel like the undercoat that the powder coater put on is an improvement over whatever primer you would have normally used?

Cheers, Eric *with intent
The paint seemed to go on quite nicely after the powder was sanded and only where the flaws were around the chrome logs did I have to sand to metal. There I used some self etching primer and shot a coat just on the primer. I let it dry then three more complete coats, decals and two coats of clear today.. The powder is VERY hard so if I get a chip it will not show as easily.

My toes? at least I cut my nails for the shoot. Much to the consternation of my better half I have been working in the house because we are trapped by flood water. and have some extra days off work because of it.

Last edited by daviddavieboy; 04-23-19 at 03:30 PM.
daviddavieboy is offline
Old 04-23-19, 07:41 PM
  #28
Gary Fountain
Senior Member

Gary Fountain's Avatar

Join Date: Sep 2005
Location: Hervey Bay, Qld, Australia.
Posts: 2,685

Bikes: Colnago (82, 85, 89, 90, 91, 96, 03), 85 Cinelli, 90 Rossin, 83 Alan, 82 Bianchi, 78 Fountain, 2 x Pinarello, Malvern Star (37), Hillman (70's), 80's Beretto Lo-Pro Track, 80's Kenevans Lo-Pro, Columbus Max (95), DeGrandi (80's) Track.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 25 Times in 17 Posts
Wrapping a decal around a tube is ALWAYS difficult at the meeting of the ends. It's really hard to achieve that perfect join. I've never been able to achieve it so I try for a less noticeable overlap. (I wonder just how many frame builders/restorers have actually faced this very same problem?)

As you point out, "The seams all but disappear...." and, you are correct; they all but disappear. It's a really nice finish and I really admire it.

Don't forget to post the final build.

My very first 'real' bike was a 2nd hand Bob Jackson in the mid 1970's and I still regret trading it on. I love your frame and am thankful to have the opportunity to see it in your photos - thanks.

Last edited by Gary Fountain; 04-23-19 at 07:44 PM.
Gary Fountain is offline
Old 04-23-19, 09:37 PM
  #29
Bill in VA
Senior Member

Bill in VA's Avatar

Join Date: Aug 2017
Location: Northern Virginia
Posts: 246

Bikes: Current: 2016 Bianchi Volpe; 1973 Peugeot UO-8. Past: 1974 Fuji with custom black Imron paint by Stinsman Racing of PA.

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 62 Post(s)
Liked 10 Times in 9 Posts
Originally Posted by Stevensb View Post
Thanks @daviddavieboy. My Bob Jackson s/n is about 500 higher than yours. The NR derailleur that was on it is a Patent 71 so early 70's seems reasonable for yours.

cheers.

Brad

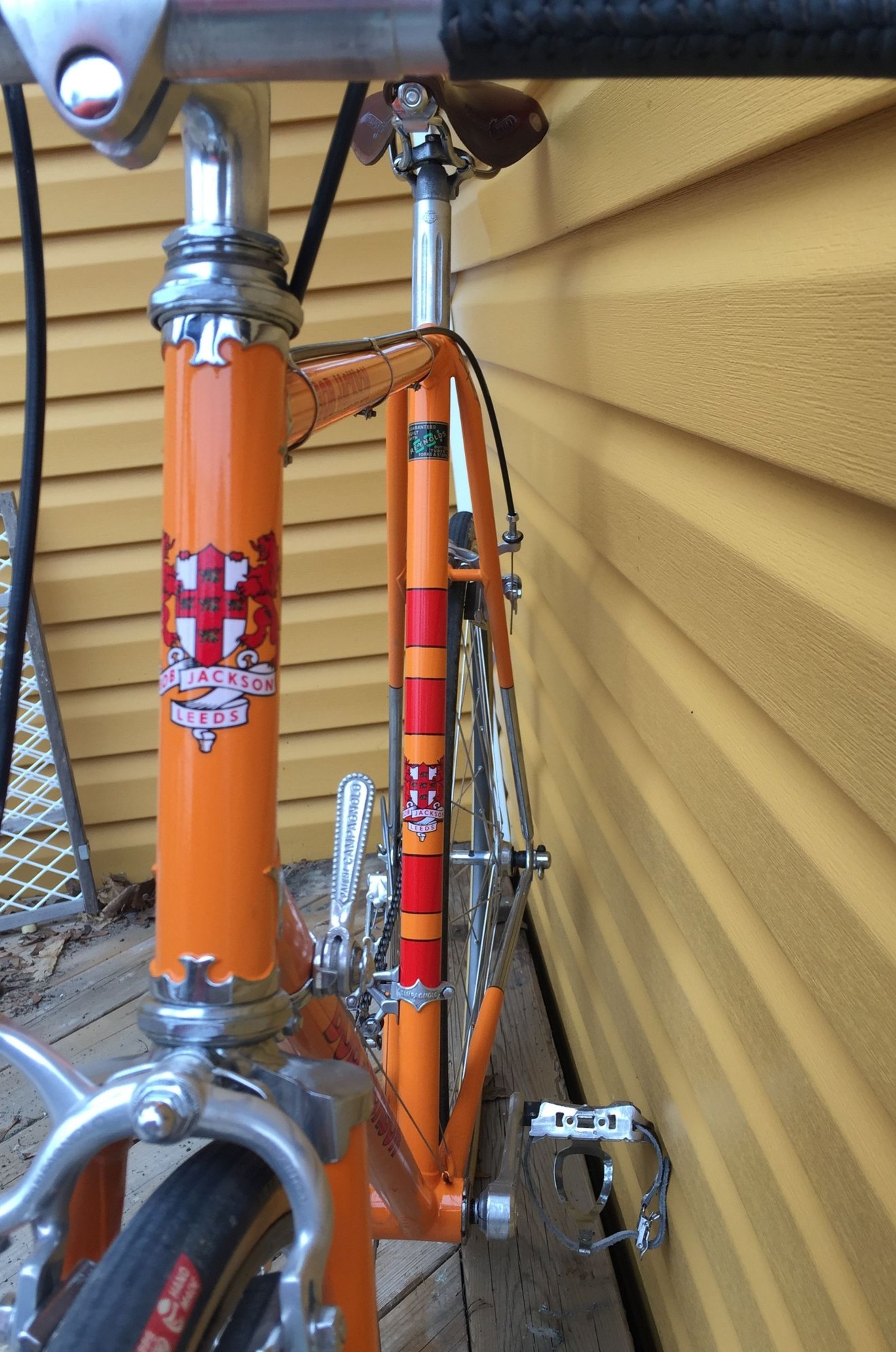

I still remember those beautiful Bob Jackson bikes and frame from college in the early 1970s. They were things of great beauty and desired from afar by a poor student. Nothing like a paneled head tube and banded seat tube. The chromed Nervex fancy lugs are more are iceing on the cake.

To the OP, your work is one of those rare things that truely gives homage to those beautiful framesets with their gorgeous shiny enamel and chrome. Tell the truth, you have a time machine and it is really a brand new frasmeset...

Two vintage bikes keep my love of C&V alive - Bob Jackson and the Peugeot PX10 (in white of course) of the early 1970s.
Bill in VA is offline
Old 04-23-19, 10:21 PM
  #30
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Posts: 1,082

Bikes: old school 531c & campy

Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 460 Post(s)
Liked 118 Times in 71 Posts
Originally Posted by Gary Fountain View Post
Wrapping a decal around a tube is ALWAYS difficult at the meeting of the ends. It's really hard to achieve that perfect join.
Gotta be one of the most difficult jobs in any restoration. I don't know what causes more stress than applying decals. I'm batting about .750.
SurferRosa is offline
Old 04-28-19, 04:35 AM
  #31
daviddavieboy
Senior Member
Thread Starter

daviddavieboy's Avatar

Join Date: Oct 2013
Location: Great White North
Posts: 627

Bikes: 00' Pinarello Opera, 16' Surly Cross Check, 82' Motobecane jubile sport, 85' Moser Supersprint, 80' Mercier Formule 1, 72' Peugeot AO8, 70' Bob Jackson

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 198 Post(s)
Liked 9 Times in 5 Posts

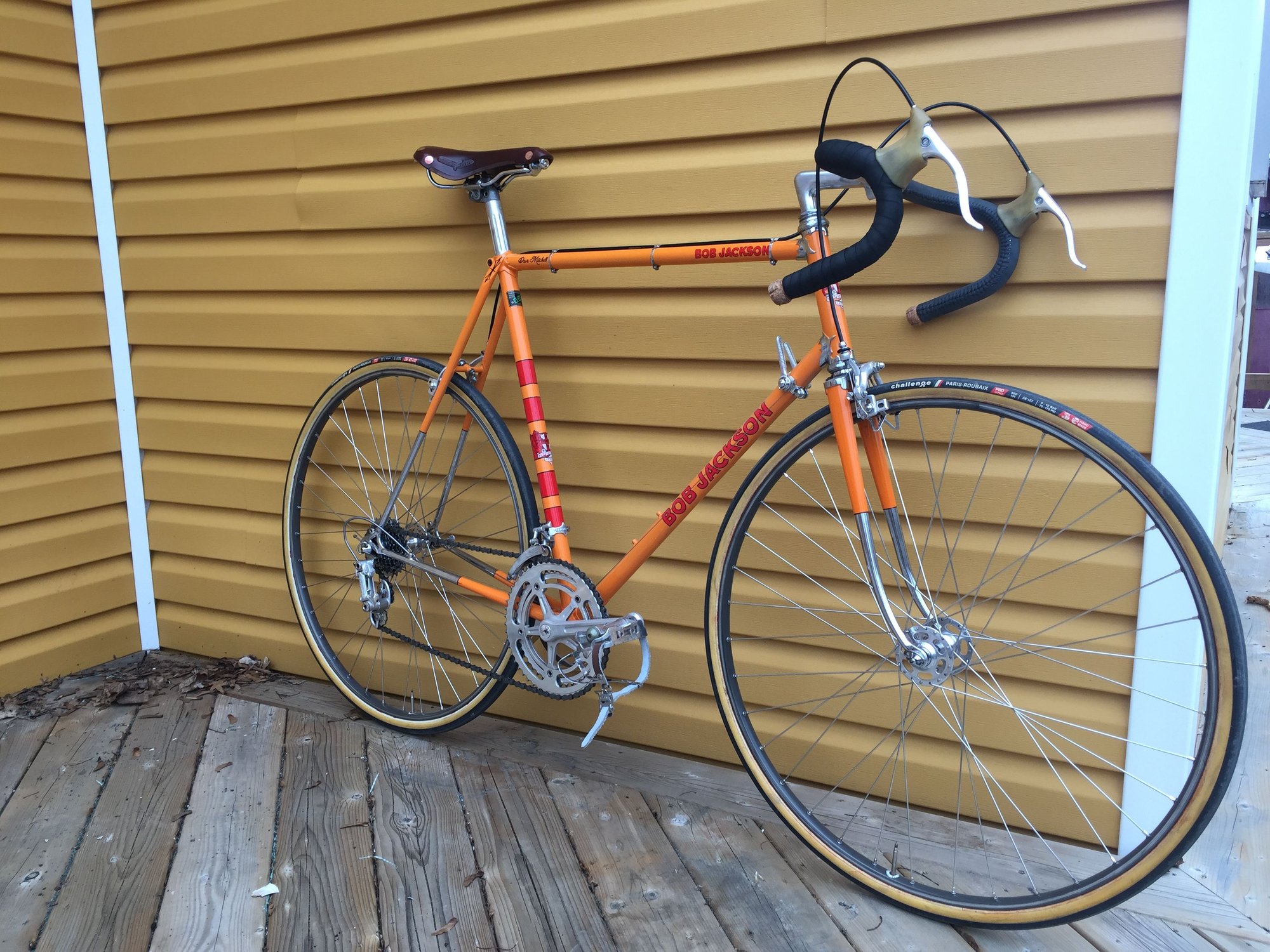

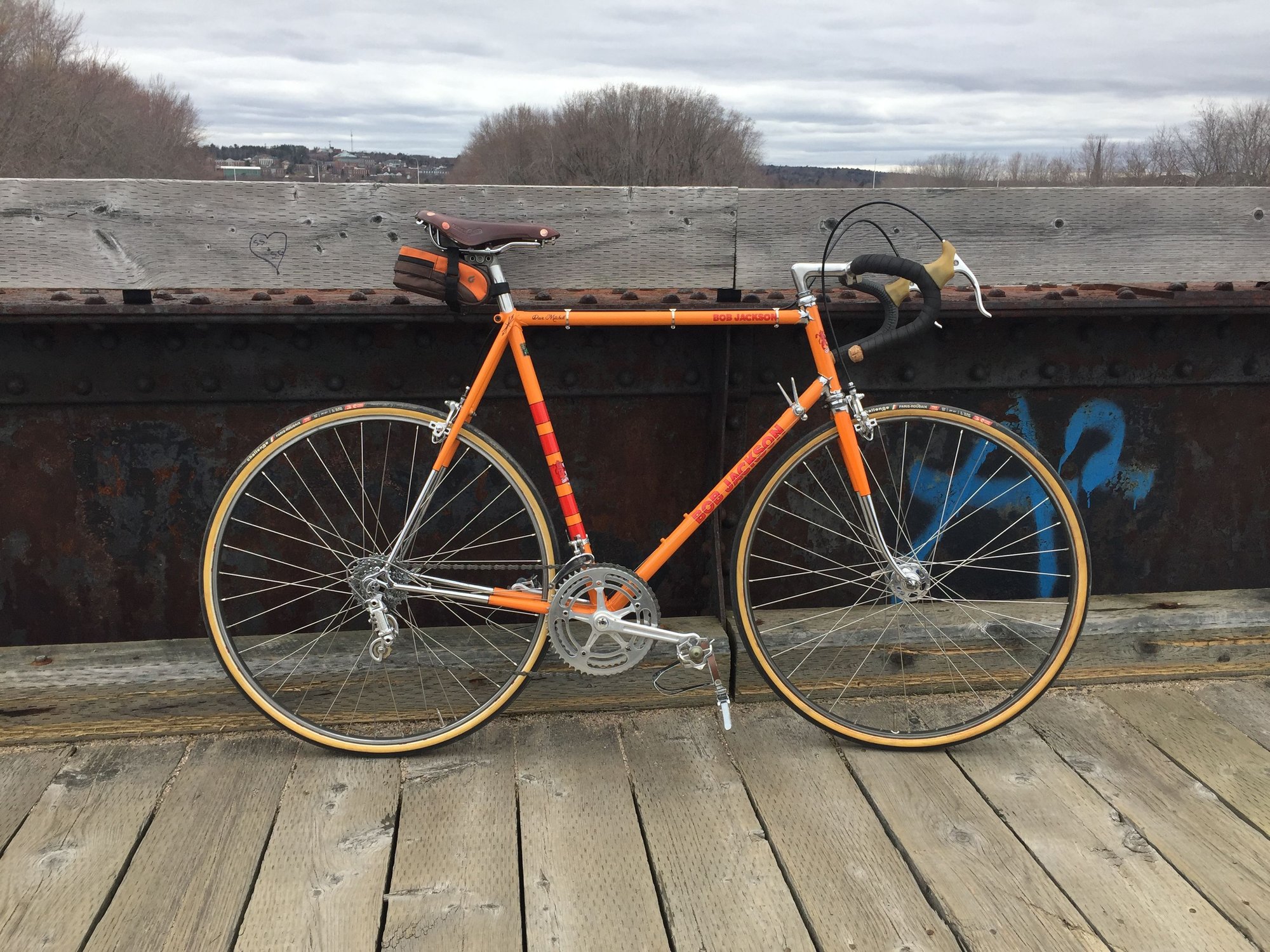

Had it out for a spin and It rides like butter ! I am very sore though as I went out for two hours without adjusting the bike fit for me. There are a few things still need done ie finish leather bar wrap, period cabling, deciding on a bottle cage and a couple screw ups- tore brake hood, laced wheels wrong but it will come together for next eroica. This is the first bike I have put this much attention in, I have wanted one since I was a kid in the 70's





daviddavieboy is offline
Likes For daviddavieboy:
Old 04-28-19, 05:47 AM
  #32
OTS
Senior Member

Join Date: Feb 2010
Location: Bloomington/Normal IL
Posts: 745
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 65 Post(s)
Liked 6 Times in 6 Posts
^so nice !
Congrats
OTS is online now
Old 04-28-19, 07:02 AM
  #33
Gary Fountain
Senior Member

Gary Fountain's Avatar

Join Date: Sep 2005
Location: Hervey Bay, Qld, Australia.
Posts: 2,685

Bikes: Colnago (82, 85, 89, 90, 91, 96, 03), 85 Cinelli, 90 Rossin, 83 Alan, 82 Bianchi, 78 Fountain, 2 x Pinarello, Malvern Star (37), Hillman (70's), 80's Beretto Lo-Pro Track, 80's Kenevans Lo-Pro, Columbus Max (95), DeGrandi (80's) Track.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Liked 25 Times in 17 Posts
Beautiful. Well done.
Gary Fountain is offline
Old 04-28-19, 08:30 AM
  #34
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,416
Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 970 Post(s)
Likes: 0
Liked 40 Times in 32 Posts
Assembled well. The look brings back the theme of many a Bob Jackson that were sold through the shop I worked for decades ago.
Jackson had “ stock colors” and then often sent an array of unique colors, yellow, black, orange, purple, two tone red and white, someone there had an eye for smart looking bikes.

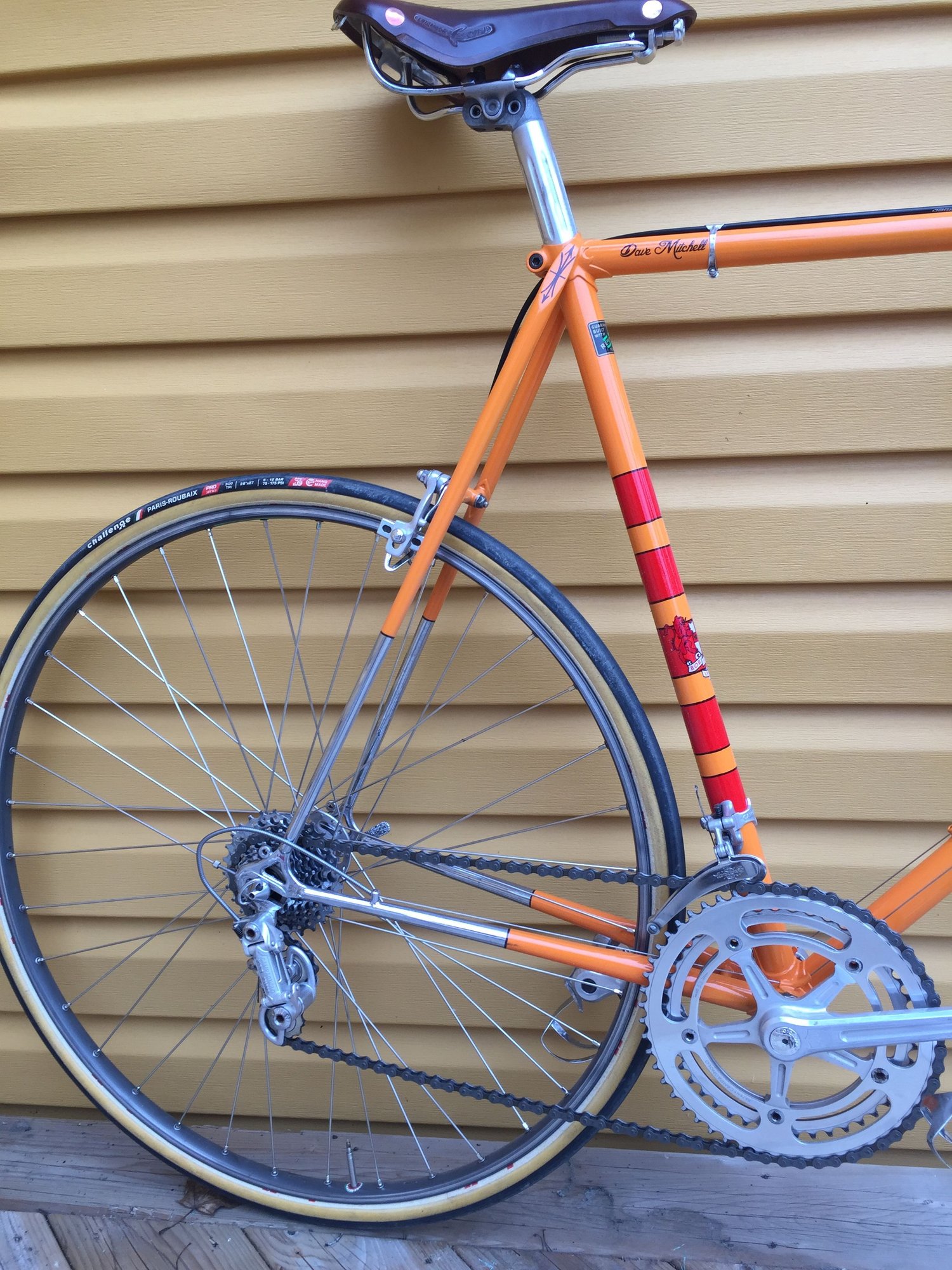

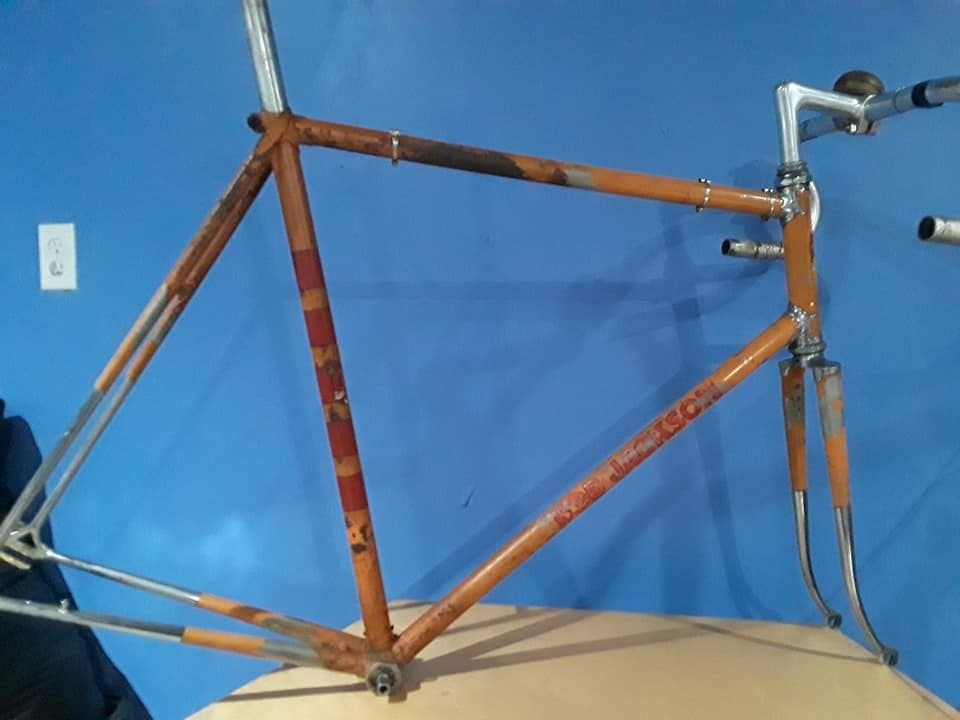

a comment to all ( I include myself as I have goofed even with notes, incomplete notes ) the re-spray shifted the red bands down a bit, the front derailleur clamp catches the red band, on the original, the bands begin above. Decades ago we took measurements, even take a strip of cardboard and create a witness stick to note the locations. In this case, as the band clamp covers the black end line, it does not read as an error.

these issues were show up in production bikes too, Raleigh Grand Sports come to mind, Colnago stamped his chainstay too far forward where the big ring covered half the text, Masi goofed the same way for a time, ( the knowledge got lost somewhere for a period)
there are many other examples, maybe the most persistent is the Schwinn Paramount downtube text, where is one to place the water bottle clamp... .? Decades before Camelbacks, and handlebar bottle mounts were out of fashion...
repechage is offline
Old 04-28-19, 10:16 AM
  #35
daviddavieboy
Senior Member
Thread Starter

daviddavieboy's Avatar

Join Date: Oct 2013
Location: Great White North
Posts: 627

Bikes: 00' Pinarello Opera, 16' Surly Cross Check, 82' Motobecane jubile sport, 85' Moser Supersprint, 80' Mercier Formule 1, 72' Peugeot AO8, 70' Bob Jackson

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 198 Post(s)
Liked 9 Times in 5 Posts
Originally Posted by repechage View Post
the re-spray shifted the red bands down a bit, the front derailleur clamp catches the red band, on the original, the bands begin above. . . In this case, as the band clamp covers the black end line.

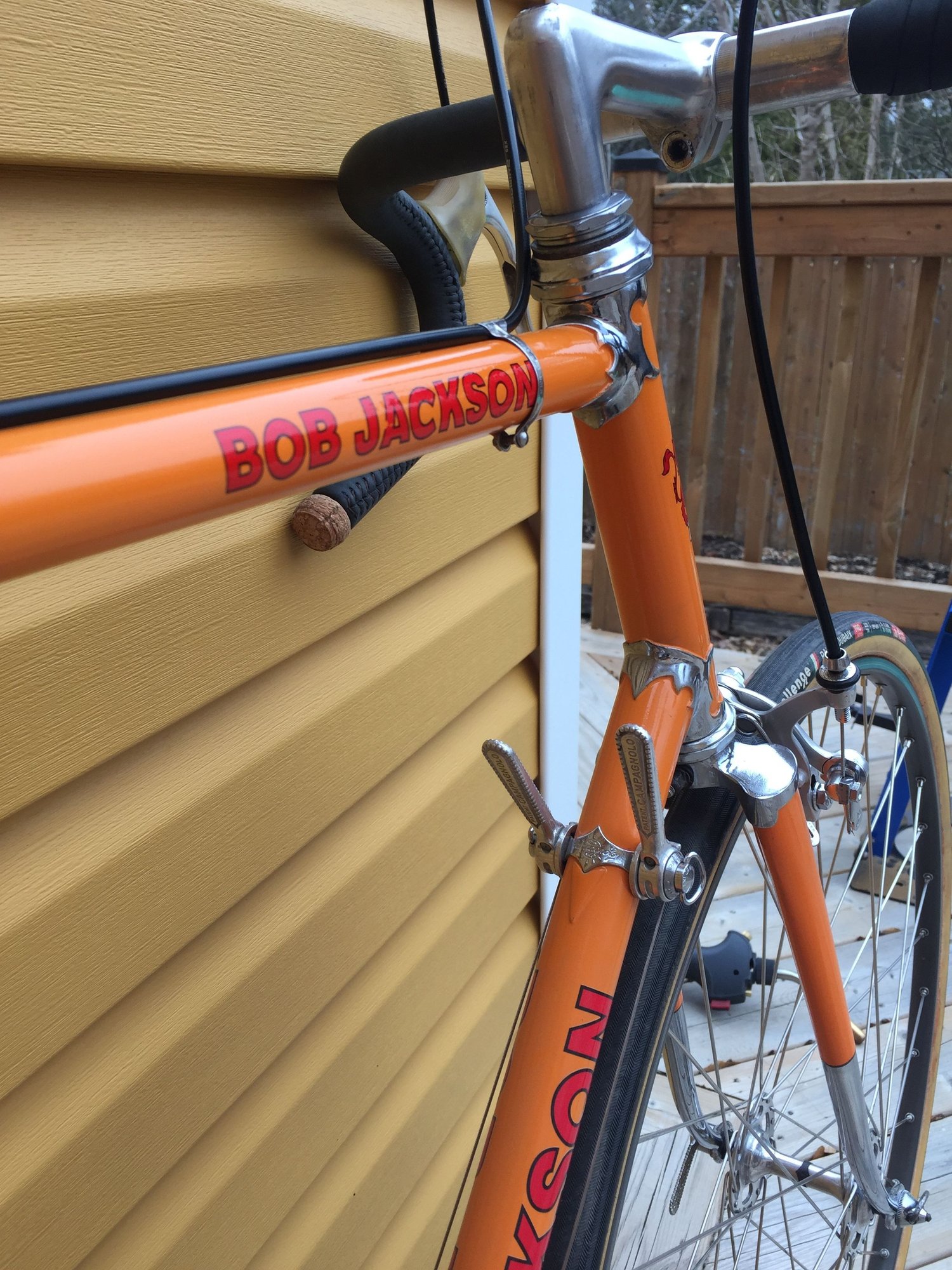

LOL I was going to fix this but I ran out of water slide paper to make new ones. When I put the first panel on I measured from the crank center when it actuality I should have measured from the top of the bb shell. I have intentions of fixing it next winter as it does bother me. I also placed the top tube decals too far forward, which I also plan to fix.
daviddavieboy is offline
