Help me identify this frame.

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Help me identify this frame.

Old 05-16-19, 04:58 PM
  #1
wschellen
Member
Thread Starter

Join Date: May 2018
Posts: 32
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 8 Times in 4 Posts
Help me identify this frame.

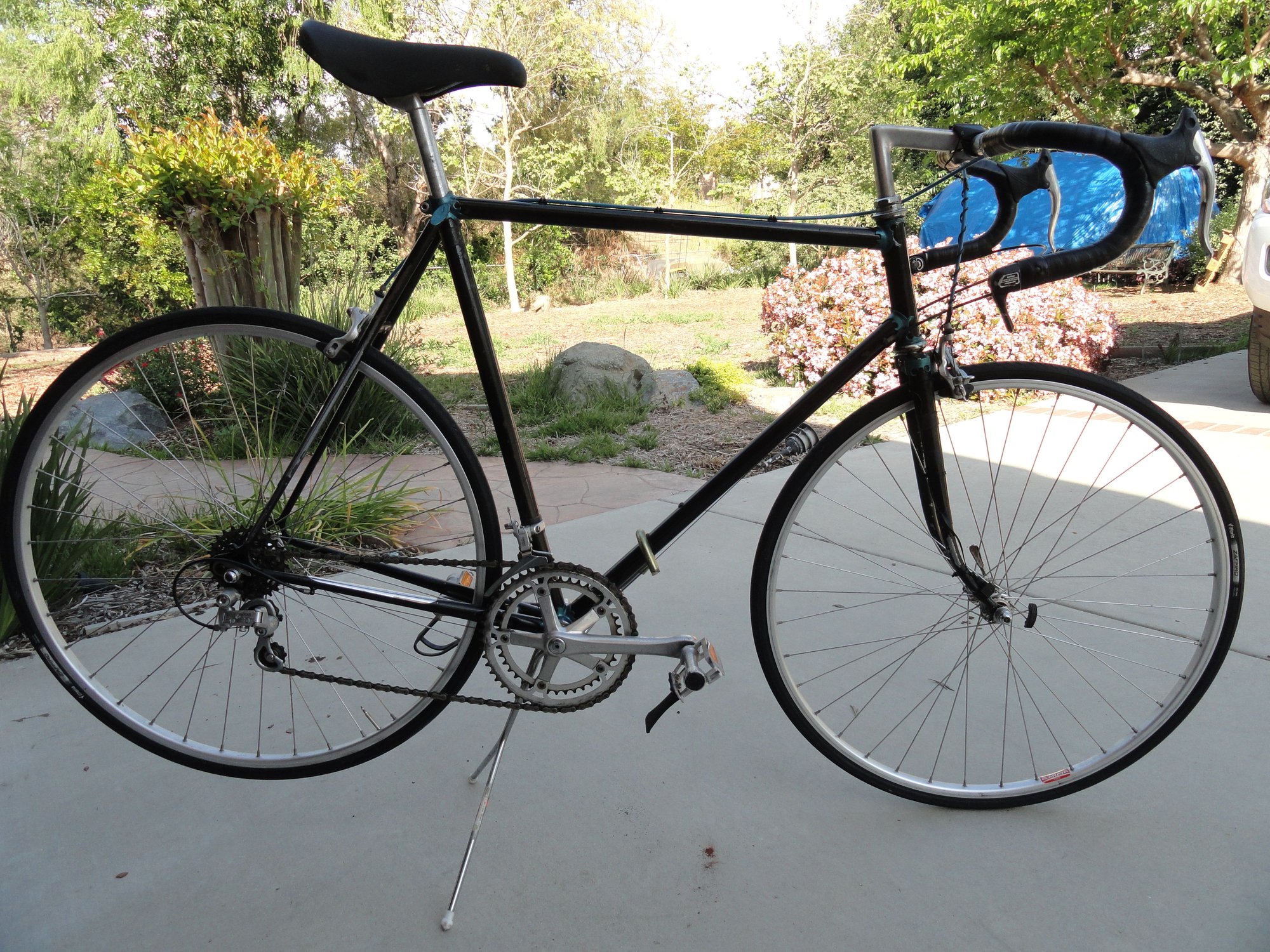

I know it is French and I know most of these parts are not original. I also know that it is Reynolds tubing. Is it an old Peugeot?, Motobecane? The down tube cable stops for bar end shifters and the top tube cable guides seem out of place on this frame to me. Perhaps they were added later? Someone on this forum must know by looking at that distinctive rear dropout. Thanks for any help, I would like to restore it to be more original if I can figure out what it is.


Last edited by wschellen; 05-16-19 at 05:06 PM. Reason: Want to add a description
wschellen is offline
Old 05-16-19, 05:18 PM
  #2
Aubergine
Bad example

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,930
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 772 Post(s)
Liked 17 Times in 14 Posts

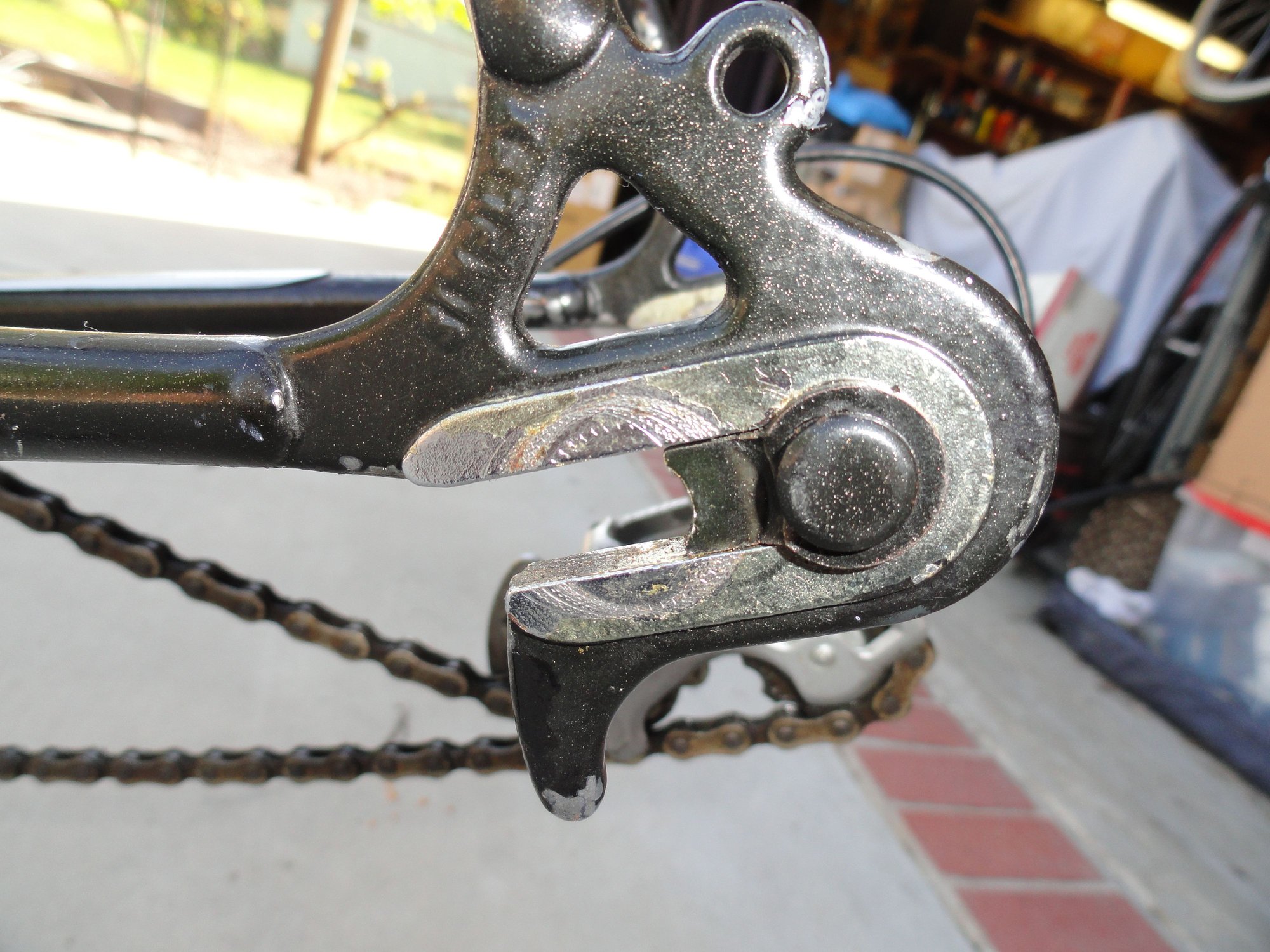

Simplex rear dropouts with the unique horn. Nervex lugs. So, high end French of some sort.
__________________
Keeping Seattle’s bike shops in business since 1978
Aubergine is offline
Old 05-17-19, 08:08 AM
  #3
USAZorro
Señor Member

USAZorro's Avatar

Join Date: Oct 2004
Location: Hardy, VA
Posts: 16,314

Bikes: Mostly English - predominantly Raleighs

Mentioned: 51 Post(s)
Tagged: 0 Thread(s)
Quoted: 733 Post(s)
Liked 38 Times in 30 Posts
Consider the possibility that the downtube stops and top tube cable guides might have been added later.

Maybe a Motobecane Grand Jubilee? Just a guess from a non-expert.
__________________
In search of what to search for.
USAZorro is offline
Old 05-17-19, 08:18 AM
  #4
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,547

Bikes: 1959 & 1960 Capo; 1982 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 730 Post(s)
Liked 57 Times in 52 Posts
Serial number? Location thereof?

BB shell width -- 68mm? 70mm?

BB shell threading -- French? Swiss? ISO?

Seatpost diameter -- 27.2mm? (with 28.6mm seat tube OD -- would indicate non-French origin)
26.6mm (with 28.0mm seat tube OD -- consistent with French "hard metric" dimensions)?

Whatever it is, I see a lot to like.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger (2), S/N 42624, 42597
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 05-17-19, 10:18 AM
  #5
gbi
Senior Member

Join Date: Apr 2012
Posts: 286
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
My first guess would also be Peugeot.
gbi is offline
Old 05-17-19, 06:13 PM
  #6
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: San Francisco Bay Area
Posts: 2,466

Bikes: fewer (n-1)

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 578 Post(s)
Likes: 0
Liked 53 Times in 30 Posts

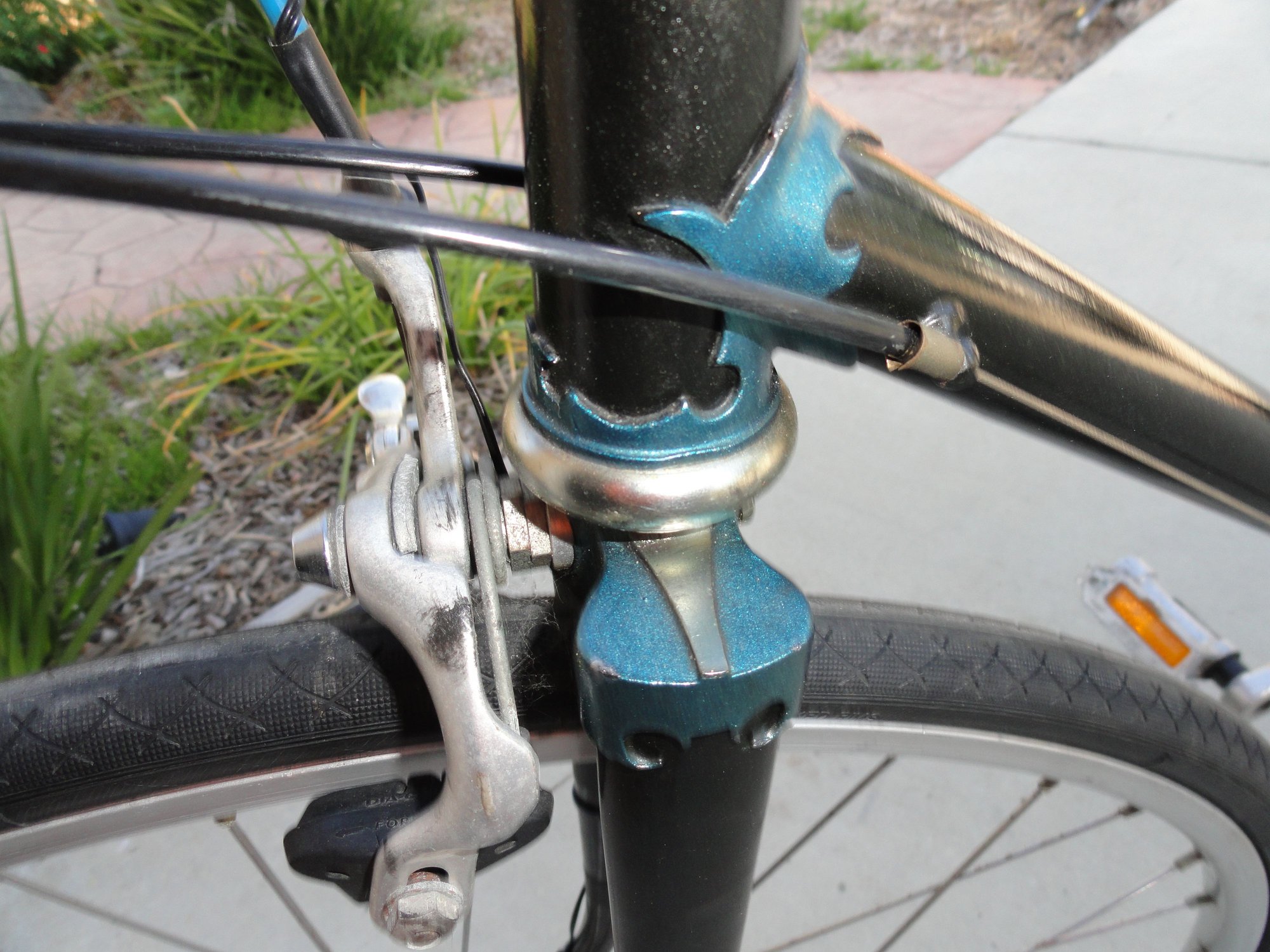

From the details shown it looks like a PX-10 to me. Same stay treatment at dropout, same seat stay treatment at seat cluster. Same fork crown, dropouts, and lugs.
Yes, cable guides and cable stops brazed on later.
Brent
obrentharris is offline
Old 05-17-19, 08:42 PM
  #7
thumpism
Bikes are okay, I guess.

thumpism's Avatar

Join Date: Jan 2015
Location: Richmond, Virginia
Posts: 4,930

Bikes: Waterford Paramount Touring, Bridgestone RB-T, Trek 510 city build, Giant CFM-2, Raleigh Sports 3-speeds in M23 & L23, Schwinn Cimarron oddball build, Marin Palisades Trail dropbar conversion

Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 1339 Post(s)
Liked 101 Times in 79 Posts
I've seen a couple of PX-10s that look like it.
thumpism is offline
Old 05-18-19, 05:29 AM
  #8
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 18,429
Mentioned: 478 Post(s)
Tagged: 1 Thread(s)
Quoted: 2706 Post(s)
Likes: 0
Liked 202 Times in 176 Posts
The horned Simplex dropouts appear to have been discontinued in the late 1960s, as they are present in the 1964 catalogue not not listed in the 1971 literature. Huret's were discontinued by the mid-1960s. Given this time frame, I would agree that the cable stops appear to be a later addition, prior to the repaint. Awaiting previously requested S/N info.

Last edited by T-Mar; 05-18-19 at 05:43 AM.
T-Mar is offline
Old 05-18-19, 08:56 AM
  #9
wschellen
Member
Thread Starter

Join Date: May 2018
Posts: 32
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 8 Times in 4 Posts
Bottom Bracket shell is 68mm wide and has French threading. Seat tube O.D. is 28mm and seat post diameter is 26.2. I have looked in all the usual places and can not find any serial number type markings. Perhaps the paint is to thick. I did notice inside the head tube that there does not seem to be any holes where a head badge would have been mounted which seems inconsistent to me for a frame of this vintage.
wschellen is offline
Old 05-18-19, 09:03 AM
  #10
cdmurphy
Senior Member

cdmurphy's Avatar

Join Date: May 2015
Location: San Marcos, CA
Posts: 570

Bikes: Too many, but sometimes not enough.

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 224 Post(s)
Likes: 0
Liked 8 Times in 5 Posts
Originally Posted by wschellen View Post
Bottom Bracket shell is 68mm wide and has French threading. Seat tube O.D. is 28mm and seat post diameter is 26.2. I have looked in all the usual places and can not find any serial number type markings. Perhaps the paint is to thick. I did notice inside the head tube that there does not seem to be any holes where a head badge would have been mounted which seems inconsistent to me for a frame of this vintage.
I think PX-10s of this vintage had a riveted plaque on the bottom bracket for the serial number. Any signs of two rivet holes on the bottom bracket? About 1.5" apart?
cdmurphy is offline
Old 05-18-19, 09:58 AM
  #11
wschellen
Member
Thread Starter

Join Date: May 2018
Posts: 32
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 8 Times in 4 Posts
Sure enough there are two little holes horizontal on the BB shell.(see photo) There was a BB cable guide covering them up, but that was probably something added later, probably had those clamp on cable guides on top of the BB originally
I would guess.
wschellen is offline
Old 05-18-19, 02:02 PM
  #12
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 8,508
Mentioned: 241 Post(s)
Tagged: 1 Thread(s)
Quoted: 1754 Post(s)
Liked 96 Times in 85 Posts
-----

You could check for the hardwood plug at the south end of the steerer.

-----
juvela is offline
Old 05-18-19, 06:55 PM
  #13
wschellen
Member
Thread Starter

Join Date: May 2018
Posts: 32
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Likes: 0
Liked 8 Times in 4 Posts
There is a wooden plug at the bottom of the steer tube. I figured it was just something someone pounded in there to keep dirt and water out. Does it have some significance?
wschellen is offline
Old 05-18-19, 09:05 PM
  #14
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: San Francisco Bay Area
Posts: 2,466

Bikes: fewer (n-1)

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 578 Post(s)
Likes: 0
Liked 53 Times in 30 Posts
The wooden plug and thick fork crown walls also point to PX-10.
Brent
obrentharris is offline
