Unknown "SWALLOW" Frame set

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Unknown "SWALLOW" Frame set

Old 06-27-19, 02:41 PM
  #1
HPL
Barred @ Velocipedesalon
Thread Starter

HPL's Avatar

Join Date: Apr 2019
Location: USA
Posts: 432

Bikes: Why list them on a non-cycling website!

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Liked 64 Times in 49 Posts
Unknown "SWALLOW" Frame set

Another mystery frame from the archives of my life. Italian threaded BB and headset, 70mm BB shell. Unmarked dropouts front and rear. Repainted and chromed or rechromed. Markings on the frame set: 1445 (?serial number?) and 50 (ST size c-c) on the BB shell; "SWALLOW" (my birdbrained opinion) pantographs on fork crown and stay caps. Seat post size is marked on frame, but can't see in photo. Previous owner thought it to be a "BMZ", I know it is not. Any input is as usual very much appreciated.
Attached Images
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
File Type: jpg
HPL is offline
Old 06-27-19, 02:51 PM
  #2
Ex Pres
Cat 6

Ex Pres's Avatar

Join Date: Dec 2007
Location: Mountain Brook, AL
Posts: 7,369
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 449 Post(s)
Liked 95 Times in 66 Posts
Aren't the pantographs just Columbus [the tubing co] doves?
EDIT: after looking at pics, the Columbus tube markings do appear different than these posted above.
I thought I had seen some seatstay caps, or maybe fork crown, with these, but I guess not.

Last edited by Ex Pres; 06-27-19 at 02:59 PM.
Ex Pres is offline
Old 06-27-19, 06:18 PM
  #3
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 21,066
Mentioned: 565 Post(s)
Tagged: 1 Thread(s)
Quoted: 3826 Post(s)
Likes: 0
Liked 1,276 Times in 940 Posts
They look like Columbus embossed frame fittings to me, and that's also appears to be a Columbus droput. These were used on a lot of BMZ frames but I don't see the BMZ logo on the BB shell.
T-Mar is offline
Old 06-27-19, 07:31 PM
  #4
thinktubes
weapons-grade bolognium

thinktubes's Avatar

Join Date: Dec 2008
Location: Across the street from Chicago
Posts: 5,480

Bikes: Battaglin Cromor, Ciocc Designer 84, Schwinn Superior 1981

Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 689 Post(s)
Liked 791 Times in 396 Posts
Vetta?
thinktubes is offline
Likes For thinktubes:
Old 06-28-19, 07:30 AM
  #5
HPL
Barred @ Velocipedesalon
Thread Starter

HPL's Avatar

Join Date: Apr 2019
Location: USA
Posts: 432

Bikes: Why list them on a non-cycling website!

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Liked 64 Times in 49 Posts
"SWALLOW" Pantograph = VETTA

Originally Posted by thinktubes View Post
Exactly! Seems we have a winner. Good link! Vetta panto matches. I'd like to know what descriptor Vetta uses for that bird logo. I think there's too much confusion in referring to it as a dove (easy to do with the prevalence of Columbus "Dove" images, and similarity of the "in flight profile " design), when it does not resemble a dove at all. Columbus' "Dove" is a much more general rendering of a bird (due to a more common tail feather spread) than the Vetta design which clearly shows the bifurcated tail most common to swallows and some other species. We know through common knowledge that the Columbus logo is a dove and have somehow transferred that knowledge to that which it does not apply, although "resembling" it and in the same area of discussion. I doubt that we would call the Vetta "Swallow" (I'm sticking with it) a dove, nevermind a Columbus "dove", if found emblazoned on a toaster or toothbrush. Also, it is a bird most appropriate for a racing bike frame maker; lightweight, streamlined, fast, acrobatic, agile, and deft. A very apt symbol for the product. Sorry for the "rant", stepping off my soapbox.

I believe if the tubing is Columbus, that the "Aelle" type may have been used; I don't recall it being an "SL" or "SP" lightweight; will get a weight next month. Does anyone know the seat tube/seat post size for "Aelle". I'm thinking that the frame was 26.8mm (definitely not 27.2) if memory serves me correctly. This frame appears to be an earlier version than those examples shown based solely on braze-ons and/or lack thereof, so tubing may be something else. I don't recall when "Aelle" was introduced.

Thanks too all for the comments and insight! More "mysteries to follow.

Last edited by HPL; 06-28-19 at 08:02 AM.
HPL is offline
Old 06-28-19, 08:28 AM
  #6
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 21,066
Mentioned: 565 Post(s)
Tagged: 1 Thread(s)
Quoted: 3826 Post(s)
Likes: 0
Liked 1,276 Times in 940 Posts
Assuming it is Columbus tubing, a 26.8mm seat post would be indicative of Aelle, which had a 27.0mm nominal, inner diameter, seat tube. If the inner diameter of the seat tube is 26.8mm, then it would use a 26.6mm seat post, which would be indicative of Columbus Zeta. Another check would be to examine the fork's steering tube. Neither Aelle nor Zeta employed the patented Columbus steering tube and therefore would not have the Columbus dove logo stamped on the outside or the five helical ridges on the inside, at the bottom.
T-Mar is offline
Old 06-28-19, 09:53 AM
  #7
machinist42
mycocyclist

machinist42's Avatar

Join Date: Dec 2016
Location: Monkey Junction, Wilmington, NC
Posts: 1,537

Bikes: 1964 Schwinn Paramount P-13 DeLuxe, 1964 Schwinn Sport Super Sport, 1972 Falcon San Remo, 1974 Maserati MT-1, 1974 Raleigh International, 1984 Lotus Odyssey, 198? Rossin Ghibli, 1990 LeMond Le Vanquer (sic), 1991 Specialized Allez Transition Pro, +

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 638 Post(s)
Liked 194 Times in 135 Posts
African or European swallow?
machinist42 is offline
Likes For machinist42:
Old 06-28-19, 11:31 AM
  #8
seypat
Senior Member

Join Date: Oct 2010
Posts: 5,582
Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1744 Post(s)
Liked 628 Times in 448 Posts
Originally Posted by machinist42 View Post
African or European swallow?
I thought it was a funny reference. The coconuts mimicking the sounds of hoof beats are hilarious!
seypat is offline
Old 06-28-19, 11:32 AM
  #9
Drillium Dude
Gone riding

Drillium Dude's Avatar

Join Date: Jul 2009
Posts: 10,711
Mentioned: 209 Post(s)
Tagged: 0 Thread(s)
Quoted: 1731 Post(s)
Liked 1,463 Times in 639 Posts
Is it just me or does the driveside rear dropout look like it's been spread open a tad? Might want to give that a closer look.

Otherwise, a fine-looking frame.

DD
__________________
My Flickr pics: https://www.flickr.com/photos/30331021@N08/

Drillium Dude is offline
Old 06-28-19, 04:12 PM
  #10
HPL
Barred @ Velocipedesalon
Thread Starter

HPL's Avatar

Join Date: Apr 2019
Location: USA
Posts: 432

Bikes: Why list them on a non-cycling website!

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Liked 64 Times in 49 Posts
Originally Posted by machinist42 View Post
African or European swallow?
I, um, I don't know... Aaaaaaaaahhhh
HPL is offline
Old 06-28-19, 04:19 PM
  #11
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 20,337

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 951 Post(s)
Liked 337 Times in 253 Posts
Originally Posted by machinist42 View Post
African or European swallow?
Your sense of humor is hard to swallow.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 06-28-19, 04:44 PM
  #12
HPL
Barred @ Velocipedesalon
Thread Starter

HPL's Avatar

Join Date: Apr 2019
Location: USA
Posts: 432

Bikes: Why list them on a non-cycling website!

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Liked 64 Times in 49 Posts
Originally Posted by T-Mar View Post
Assuming it is Columbus tubing, a 26.8mm seat post would be indicative of Aelle, which had a 27.0mm nominal, inner diameter, seat tube. If the inner diameter of the seat tube is 26.8mm, then it would use a 26.6mm seat post, which would be indicative of Columbus Zeta. Another check would be to examine the fork's steering tube. Neither Aelle nor Zeta employed the patented Columbus steering tube and therefore would not have the Columbus dove logo stamped on the outside or the five helical ridges on the inside, at the bottom.
Originally Posted by Drillium Dude View Post
Is it just me or does the driveside rear dropout look like it's been spread open a tad? Might want to give that a closer look.
DD
I think the 26.8 post size is correct; it came with a post and I'd have remembered a 26.6 post as odd. I know there were no markings and/or ridges on the steerer.
T-mar, quick question; I have an Olmo (late 70's-early 80's)with a 26.8 post, but a lighter frame. Is there another Columbus tubing that would require that size seat post, or might it be improper finishing/reaming?

DD, it does look a wee bit spread from that photo. Making a note for when I pick it up.

Next mystery frame is hanging in the garage waiting for identification; it might be the toughest one yet!
HPL is offline
Old 06-29-19, 10:28 AM
  #13
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 21,066
Mentioned: 565 Post(s)
Tagged: 1 Thread(s)
Quoted: 3826 Post(s)
Likes: 0
Liked 1,276 Times in 940 Posts
Aelle and Gara are the only two Columbus tubesets I'm aware of that would use that size of post and they're only 45g difference, which is due to the heavier gauge Gara seat stays. Given that the density of the various steel alloys do not vary by a considerable amount, one possibility is that one of the frames is tretubi Aelle and the other factor is the selection of fittings. You'd be surprised as how much weight difference the latter can make, which is why I never use frame weight as a tubeset identifier.
T-Mar is offline
Old 06-29-19, 10:36 AM
  #14
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,334
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 755 Post(s)
Liked 326 Times in 268 Posts
I always assumed the "bird" to be an attempt to depict the Columbus "Dove" (if that's not what Columbo calls their mark, that's how it's known) with the somewhat crude tool of a pantograph engraver. But there are examples (and not all are Vetta or BMZ) that range from "pretty close" to "...nice try...do it over." But even the crudest have some simplified profile of a bird-like icon, facing left, so whether these were Columbus-authorized, or brazen trademark violators or an "homage" by admirers, there certainly is a pattern. While those in the oval are intended to match very closely to the Columbus logo the Vetta and the unknown "Z" forkcrown have a split tail so might be supposedly a different bird or a trademark "fudge", who knows?

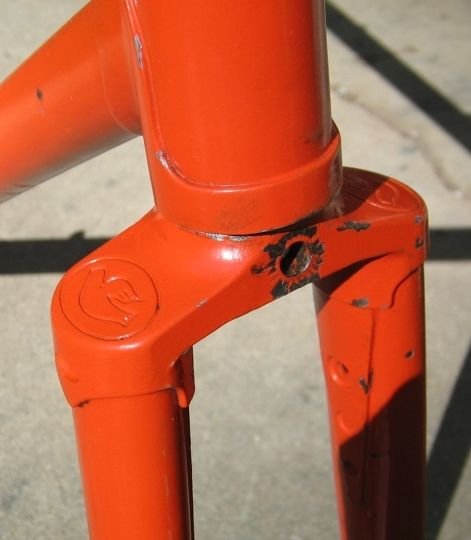

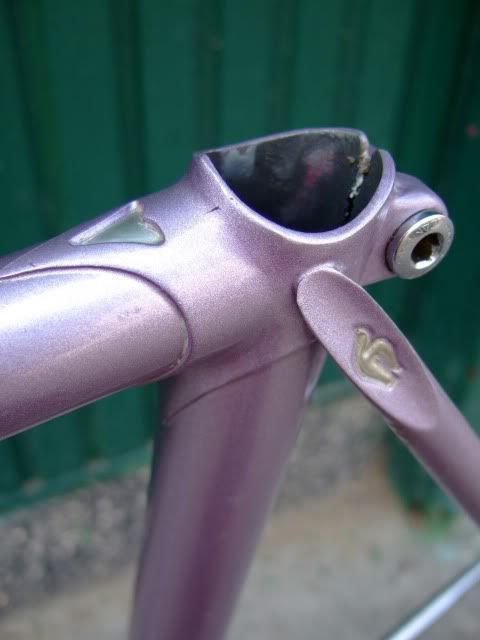

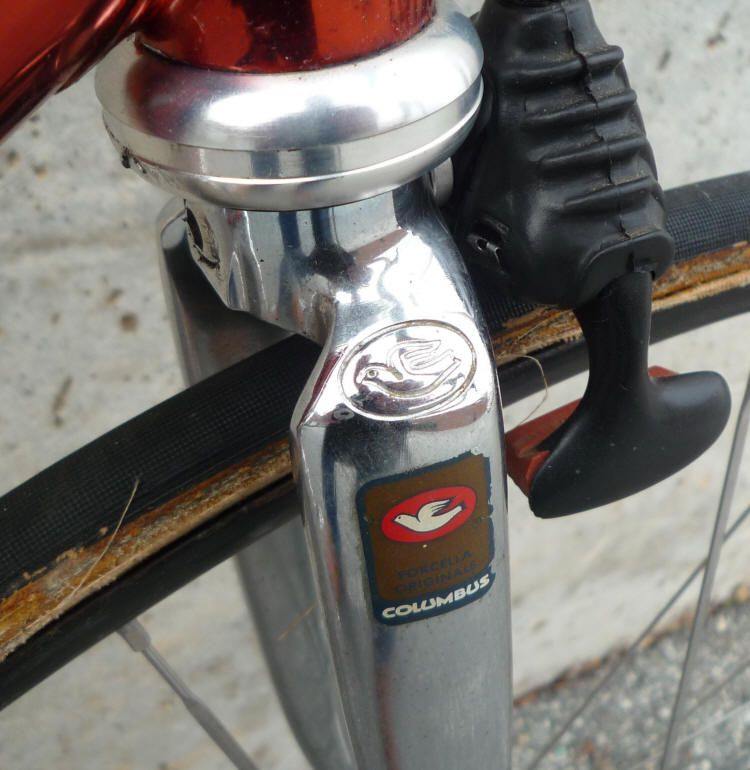

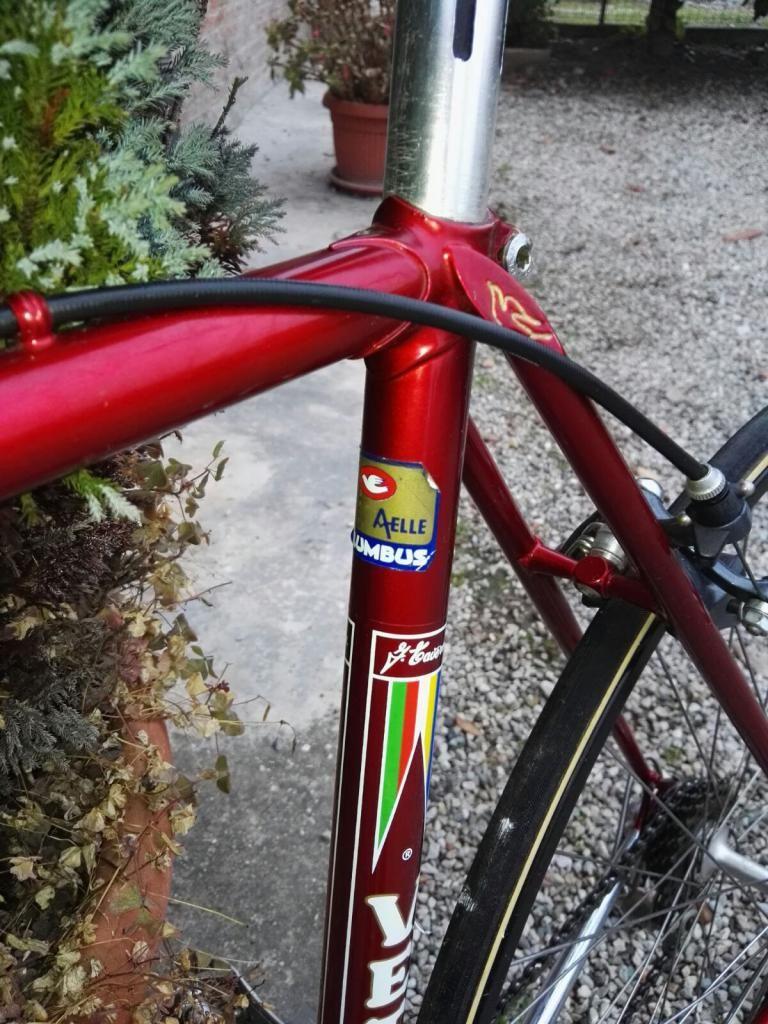

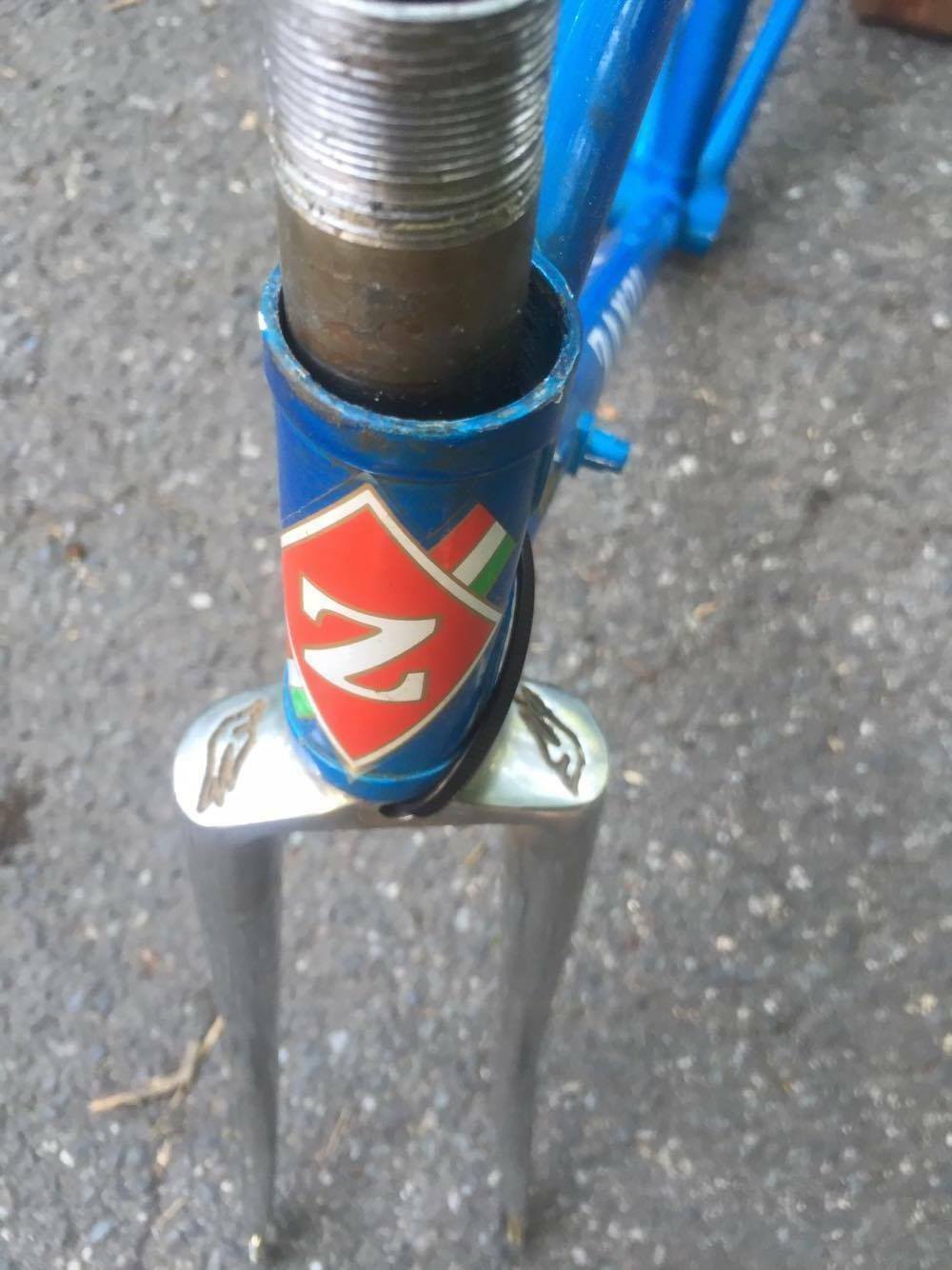

Here's an assortment I grabbed with one online search (note one is clearly a Vetta):




Last edited by unworthy1; 06-29-19 at 10:42 AM.
unworthy1 is offline
Likes For unworthy1:
Old 06-29-19, 06:46 PM
  #15
MauriceMoss
Senior Member

MauriceMoss's Avatar

Join Date: Aug 2014
Location: Los Angeles, CA
Posts: 429

Bikes: None in ridable condition

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 97 Post(s)
Liked 178 Times in 76 Posts
Originally Posted by thinktubes View Post
MauriceMoss is offline
Likes For MauriceMoss:
