can anyone identfy this frame ?

Search
Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

can anyone identfy this frame ?

Thread Tools

Search this Thread

Old 07-20-13 | 08:45 AM
  #1
Thread Starter
Member

Joined: Feb 2013
Posts: 31
Likes: 0
can anyone identfy this frame ?



It has Italian BB.Fork-ends and drop-outs are campagnolo.Re-painted frame.
taner rona is offline
Reply
Old 07-20-13 | 08:55 AM
  #2
Gary Fountain's Avatar
Senior Member
20 Anniversary

Joined: Sep 2005
Posts: 3,006
Likes: 306
From: Hervey Bay, Qld, Australia.

Bikes: Colnago (82, 85, 89, 90, 91, 96, 03), 85 Cinelli, 90 Rossin, 83 Alan, 82 Bianchi, 78 Fountain, 2 x Pinarello, Malvern Star (37), Hillman (70's), 80's Beretto Lo-Pro Track, 80's Kenevans Lo-Pro, Columbus Max (95), DeGrandi (80's) Track.

Nice and elegantly presented frame. I would guess at an early 80's build. Personally I don't think it will be identified as it doesn't seem to have any identifying features. I may be wrong though as there are some very well informed members of this forum. It would be nice to see what the underside of the bottom bracket looks like though.
Gary Fountain is offline
Reply
Old 07-20-13 | 11:18 AM
  #3
unworthy1's Avatar
Stop reading my posts!
20 Anniversary
Community Builder

Joined: Sep 2004
Posts: 14,053
Likes: 2,239
looks nice but nothing much there to hang a name on: fairly generic late-70s/early-80s Italian...shot of BB might help, also the stay ends (on DOs), so far the only thing really distinctive is the style of TT cable guide, but even with that there are a few different builders who used them.
unworthy1 is online now
Reply
Old 07-20-13 | 11:41 AM
  #4
Scooper's Avatar
Decrepit Member

Joined: Aug 2005
Posts: 10,488
Likes: 94
From: Santa Rosa, California

Bikes: Waterford 953 RS-22, several Paramounts

I agree there's nothing too distinctive about the frame, but the extremely long chrome plated concave seat stay caps are a little unusual.

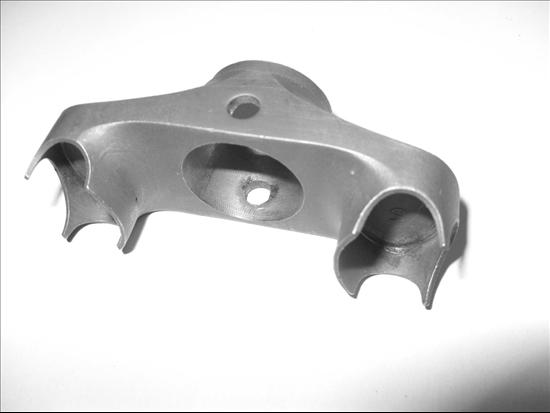

Also, the fork crown pretty obviously has cast plugs for the securing the blades (the blades are fitted over the plugs and brazed) giving a clean, light appearance. I've used sloping crowns with plugs (Cinelli type, picture below), but this one with a flat top is particularly elegant to my eye.

__________________
- Stan

my bikes

Science doesn't care what you believe.
Scooper is offline
Reply
Old 07-20-13 | 11:46 AM
  #5
onespeedbiker's Avatar
Retro Grouch

Joined: Oct 2007
Posts: 2,210
Likes: 3
From: Santa Cruz

Bikes: Yes

I'm thinking Olmo https://www.mytenspeeds.com/My_TenSpe...lSideRight.jpg

Attached Images
File Type: jpg
onespeedbiker is offline
Reply
Old 07-20-13 | 03:59 PM
  #6
JohnDThompson's Avatar
Old fart
Titanium Club Membership
20 Anniversary
Community Builder

Joined: Nov 2004
Posts: 26,411
Likes: 5,350
From: Appleton WI

Bikes: Several, mostly not name brands.

Originally Posted by Scooper
Also, the fork crown pretty obviously has cast plugs for the securing the blades (the blades are fitted over the plugs and brazed) giving a clean, light appearance. I've used sloping crowns with plugs (Cinelli type, picture below), but this one with a flat top is particularly elegant to my eye.
Looks more like a Cinelli MC external crown to me, with the outer tangs truncated:



There's a pretty obvious external socket visible in this picture:



It does look similar to that Olmo, though.

Last edited by JohnDThompson; 07-20-13 at 04:03 PM.
JohnDThompson is offline
Reply
Old 07-20-13 | 05:39 PM
  #7
Scooper's Avatar
Decrepit Member

Joined: Aug 2005
Posts: 10,488
Likes: 94
From: Santa Rosa, California

Bikes: Waterford 953 RS-22, several Paramounts

Originally Posted by JohnDThompson
Looks more like a Cinelli MC external crown to me, with the outer tangs truncated.
Could be, but with the outboard tangs clipped there wouldn't seem to be much meat left on the outboard surface of the socket to solidly anchor the blades.
__________________
- Stan

my bikes

Science doesn't care what you believe.
Scooper is offline
Reply
Old 07-21-13 | 04:38 PM
  #8
Thread Starter
Member

Joined: Feb 2013
Posts: 31
Likes: 0
Olmo is the closest.
Thnx for the help people
taner rona is offline
Reply
Old 07-21-13 | 11:54 PM
  #9
unworthy1's Avatar
Stop reading my posts!
20 Anniversary
Community Builder

Joined: Sep 2004
Posts: 14,053
Likes: 2,239
Yeah it's sort of close but I'm not convinced: for one most Olmos from that era have at least something pantographed, the reason the example shown doesn't is because it's a "budget model" with Falck tubing and nearly no chrome, GPM DOs, too. Bet yours has a 27.2 seat post and rifling in the steerer, bet the Olmo shown does not. Add to this all the other details (forkcrown and even the TT guides which are similar but no match). I'd say Olmo is one contender, but I wouldn't close the case...yet...
I'd still like to see those additional pics.

Last edited by unworthy1; 07-21-13 at 11:57 PM.
unworthy1 is online now
Reply
Old 07-22-13 | 10:37 AM
  #10
onespeedbiker's Avatar
Retro Grouch

Joined: Oct 2007
Posts: 2,210
Likes: 3
From: Santa Cruz

Bikes: Yes

Originally Posted by unworthy1
Yeah it's sort of close but I'm not convinced: for one most Olmos from that era have at least something pantographed, the reason the example shown doesn't is because it's a "budget model" with Falck tubing and nearly no chrome, GPM DOs, too. Bet yours has a 27.2 seat post and rifling in the steerer, bet the Olmo shown does not. Add to this all the other details (forkcrown and even the TT guides which are similar but no match). I'd say Olmo is one contender, but I wouldn't close the case...yet...
I'd still like to see those additional pics.
This is a photo of my frame that I also believe to be an Olmo. There is no chrome, however it is a Columbus frame set with the fork stamped "Columbus" (rifling in the steerer) and a 27.2 seat tube and Campy dropouts. However it should be noted that the lug work is quite a bit nicer than the OP's.

Attached Images
File Type: jpg

Last edited by onespeedbiker; 07-22-13 at 10:41 AM.
onespeedbiker is offline
Reply
Old 07-22-13 | 11:40 AM
  #11
unworthy1's Avatar
Stop reading my posts!
20 Anniversary
Community Builder

Joined: Sep 2004
Posts: 14,053
Likes: 2,239
another possibility (for both the "Olmo" above and the OP's) might be Romani. This is a popular fall-back because Romani did A LOT of contract-building for many brands as well as shop and house-brands, were very active in the era represented (short DOs but still nutted brakes and both types of cable-routing) and they liked those fluted stay caps, those pierced lugs and that style forkcrown, but really would build to order so their style clues are varied. They could do something very nicely finished with ample chrome, or more plain-jane. They also didn't mark them in any way, usually not even serial numbered.

When in doubt, think "Romani".
unworthy1 is online now
Reply
Old 07-22-13 | 12:36 PM
  #12
zandoval's Avatar
Senior Member
Titanium Club Membership
15 Anniversary

Joined: May 2010
Posts: 5,633
Likes: 2,502
From: Bastrop Texas

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte, Peu Dolomites

Hers a GettoCal in case you want to plaster something on that nice frame after you get it built up...
Details on GettoCals are here - Goto #85 ...
https://www.bikeforums.net/showthread...light=gettocal
Attached Images
File Type: jpg
__________________
No matter where you're at... There you are... Δf:=f(1/2)-f(-1/2)
