Speedplay help

Old 01-20-17, 03:54 AM
  #1
Rdefreitas
Junior Member
Thread Starter

Join Date: May 2015
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Speedplay help

Hello all, I have a set of speedplay pedals km not sure the model. But they are in the pictures. I'm trying to figure out what cleats to get and a budget shoe shoe/adapter to go along with it. Any help would be greatly appreciated. Completely clueless.

Thanks
Attached Images
File Type: jpg
File Type: jpg
Rdefreitas is offline
Old 01-20-17, 05:01 AM
  #2
02Giant
Home School Valedictorian

02Giant's Avatar

Join Date: Jan 2011
Location: Iowa
Posts: 2,967

Bikes: 13 Orbea Orca 02 Giant Cypress 88 Mongoose ATB 79 frame-built to 80 spec. Schwinn Traveller

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 1375 Post(s)
Liked 457 Times in 304 Posts
Did you try the Speedplay web site? SPEEDPLAY : HIGH PERFORMANCE PEDALS
__________________
Stop The Squeal

I ain't broke and I ain't hungry but I'm close enough to care
tp





02Giant is offline
Old 01-20-17, 07:42 AM
  #3
cderalow
Senior Member

cderalow's Avatar

Join Date: Sep 2012
Location: Potomac, MD
Posts: 776

Bikes: 2012 GT Transeo 3 2014 Cannondale CAAD 10 105

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
they're certainly an X series, likely an X5 Chromoly based on the looks.

The zero has the distinct cross shape and the light actions have dimples on the pedal surface.
cderalow is offline
Old 01-20-17, 07:45 AM
  #4
Lazyass
Senior Member

Join Date: Jul 2008
Location: NC
Posts: 8,322

Bikes: Vintage steel, aluminum, modern carbon disc, single speed, MTB's, the works

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 2006 Post(s)
Liked 79 Times in 48 Posts
The use X series cleats, but Zero cleats also work fine with them. I know from experience.
Lazyass is offline
Old 01-20-17, 04:47 PM
  #5
Rdefreitas
Junior Member
Thread Starter

Join Date: May 2015
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by Lazyass View Post
The use X series cleats, but Zero cleats also work fine with them. I know from experience.

I was thinking they were the xseries from looking on speedplay site but wasn't too sure. I was looking at the zero cleats I was thinking wouldn't work. Used with no issues?
Rdefreitas is offline
Old 01-20-17, 04:55 PM
  #6
Marcus_Ti
FLIR Kitten to 0.05C

Marcus_Ti's Avatar

Join Date: Sep 2014
Location: Lincoln, Nebraska
Posts: 5,309

Bikes: Roadie: Seven Axiom Race Ti w/Chorus 11s. CX/Adventure: Carver Gravel Grinder w/ Di2

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 2333 Post(s)
Liked 380 Times in 239 Posts
Originally Posted by Rdefreitas View Post
Hello all, I have a set of speedplay pedals km not sure the model. But they are in the pictures. I'm trying to figure out what cleats to get and a budget shoe shoe/adapter to go along with it. Any help would be greatly appreciated. Completely clueless.

Thanks
All Speedplay retail cleats should come with 3-bolt adapters and wedges
Marcus_Ti is online now
Old 01-20-17, 05:19 PM
  #7
Lazyass
Senior Member

Join Date: Jul 2008
Location: NC
Posts: 8,322

Bikes: Vintage steel, aluminum, modern carbon disc, single speed, MTB's, the works

Mentioned: 60 Post(s)
Tagged: 0 Thread(s)
Quoted: 2006 Post(s)
Liked 79 Times in 48 Posts
Originally Posted by Rdefreitas View Post
I was thinking they were the xseries from looking on speedplay site but wasn't too sure. I was looking at the zero cleats I was thinking wouldn't work. Used with no issues?
Yes. I have X5 pedals and accidentally ordered Zero cleats once. I used them till they wore out. No issues.
Lazyass is offline
Old 01-20-17, 07:46 PM
  #8
TimothyH
- Soli Deo Gloria -

Join Date: Aug 2015
Location: Northwest Georgia
Posts: 14,783

Bikes: 2018 Rodriguez Custom Fixed Gear, 2017 Niner RLT 9 RDO, 2015 Bianchi Pista, 2002 Fuji Robaix

Mentioned: 235 Post(s)
Tagged: 0 Thread(s)
Quoted: 6833 Post(s)
Liked 690 Times in 438 Posts
Here is how to identify Speedplay road pedals. Look for the dimples/channels, or lack thereof...

These are Speedplay Ultra Light Action easy release pedals. Ultra Light Action pedals can be identified by the fact that they have eight dimples, four on each side. You can see the four dimples in the red section on the top of this pedal...

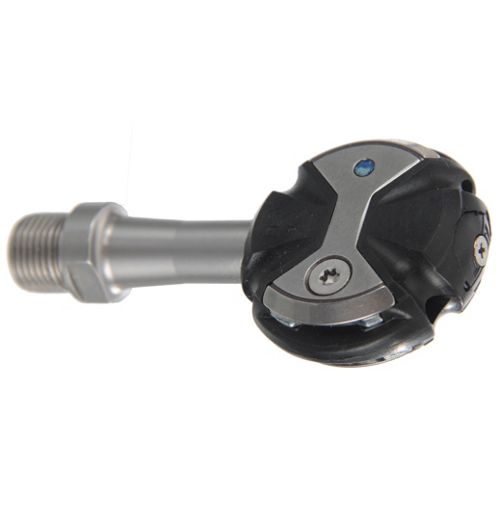

These are Speedplay Zero Pedals with adjustable float. These come in ChroMo, Stainless, Ti, ultralight "Nanogram" and track specific flavors. This pedal does not have dimples but channels which wrap completely around both sides of the pedal.


This is the original Speedplay X-Series with free float. Both sides of this pedal are completely smooth. If you see no dimples or channels on the top or bottom of the pedal then it is an X-Series.



Don't be fooled. Lots of craigslist sellers try to pass off light action pedals as Zero.

-Tim-
TimothyH is offline
Old 01-20-17, 08:40 PM
  #9
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 20,941
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 925 Times in 683 Posts
so the dimples help release the cleats?

The OP's pedals are X series, most bike shops can get them.
unterhausen is offline
Old 01-21-17, 02:18 AM
  #10
Rdefreitas
Junior Member
Thread Starter

Join Date: May 2015
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Thanks guys for clearing it up for me.
