Help with the frame!
Hoi!
I just bought vintage road bicycle from some guy for restoration! The problem is that, the frame doesen't have any decals.
Only on BB there is a Nervex lug stamp, and also some frame number. The top tube size is 56cm;
This frame have Simplex dropouts, and huret allvit groupset, TA Cranks.I think its some vintage 60-70s frame from France;
So maybe someone can help me to find out the frame brand of this bicycle?
Cheerrrz
I just bought vintage road bicycle from some guy for restoration! The problem is that, the frame doesen't have any decals.
Only on BB there is a Nervex lug stamp, and also some frame number. The top tube size is 56cm;
This frame have Simplex dropouts, and huret allvit groupset, TA Cranks.I think its some vintage 60-70s frame from France;
So maybe someone can help me to find out the frame brand of this bicycle?
Cheerrrz
05-29-17 | 11:08 AM
#2
Bianchi Goddess
Joined: Apr 2009
Posts: 28,888
Likes: 4,126
From: Shady Pines Retirement Fort Wayne, In
Bikes: Too many to list here check my signature.
Welcome to the forums. Looks Peugeotish to me.
__________________
“One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"
Sugar "Kane" Kowalczyk
“One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"
Sugar "Kane" Kowalczyk
05-29-17 | 11:43 AM
#3
Senior Member
Joined: Nov 2011
Posts: 7,951
Likes: 688
From: Port Angeles, WA
Bikes: A green one, "Ragleigh," or something.
Looks like the top tube has big decal on it; is that not a bike brand/model decal?
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1979 Motobecane Grand Jubile ●1980 Apollo "Legnano" ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1979 Motobecane Grand Jubile ●1980 Apollo "Legnano" ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●
05-29-17 | 12:26 PM
#5
Bianchi Goddess
Joined: Apr 2009
Posts: 28,888
Likes: 4,126
From: Shady Pines Retirement Fort Wayne, In
Bikes: Too many to list here check my signature.
I would suspect that is the model or the brand and model
__________________
“One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"
Sugar "Kane" Kowalczyk
“One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"
Sugar "Kane" Kowalczyk
05-29-17 | 04:05 PM
#7
feros ferio
Joined: Jul 2000
Posts: 22,397
Likes: 1,864
From: www.ci.encinitas.ca.us
Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;
What is the seat post diameter? I presume the seat tube's outer diameter is 28.0mm (French).
Perhaps Peugeot, but the decals remind me of Gitane or Bertin. It could also be some other marque made by Motobecane, Peugeot, or Gitane.
I have never seen a Peugeot of that vintage with Huret derailleurs -- they all came with Simplex.
Perhaps Peugeot, but the decals remind me of Gitane or Bertin. It could also be some other marque made by Motobecane, Peugeot, or Gitane.
I have never seen a Peugeot of that vintage with Huret derailleurs -- they all came with Simplex.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
05-30-17 | 10:04 AM
#10
Senior Member
Joined: May 2011
Posts: 3,780
Likes: 17
From: Upstate NY
Bikes: Bianchi San Mateo and a few others
Definitely French, but I don't think it's a Peugeot.
I do think the sticker on the top tube might be a hint as to the bike's branding and not just a sticker someone slapped on. Col d'Aspin in a mountain pass in the Pyrenees that's been part of the Tour de France many, many times. Super Course is a model name or description that's been used by a number of makers.
I do think the sticker on the top tube might be a hint as to the bike's branding and not just a sticker someone slapped on. Col d'Aspin in a mountain pass in the Pyrenees that's been part of the Tour de France many, many times. Super Course is a model name or description that's been used by a number of makers.
05-30-17 | 10:50 AM
#11
Thread Starter
Junior Member
Joined: May 2017
Posts: 9
Likes: 0
What is the seat post diameter? I presume the seat tube's outer diameter is 28.0mm (French).
Perhaps Peugeot, but the decals remind me of Gitane or Bertin. It could also be some other marque made by Motobecane, Peugeot, or Gitane.
I have never seen a Peugeot of that vintage with Huret derailleurs -- they all came with Simplex.
Perhaps Peugeot, but the decals remind me of Gitane or Bertin. It could also be some other marque made by Motobecane, Peugeot, or Gitane.
I have never seen a Peugeot of that vintage with Huret derailleurs -- they all came with Simplex.
05-30-17 | 10:53 AM
#12
Senior Member
Joined: Jun 2013
Posts: 4,094
Likes: 2
From: Bozeman
Bikes: 199? Landshark Roadshark, 198? Mondonico Diamond, 1987 Panasonic DX-5000, 1987 Bianchi Limited, Univega... Chrome..., 1989 Schwinn Woodlands, Motobecane USA Record, Raleigh Tokul 2
Where the heck is that rear derailleur cable going?
Can you take more pictures of the lugs, components, dropouts, etc?
Can you take more pictures of the lugs, components, dropouts, etc?
05-30-17 | 11:13 AM
#13
Thread Starter
Junior Member
Joined: May 2017
Posts: 9
Likes: 0
Definitely French, but I don't think it's a Peugeot.
I do think the sticker on the top tube might be a hint as to the bike's branding and not just a sticker someone slapped on. Col d'Aspin in a mountain pass in the Pyrenees that's been part of the Tour de France many, many times. Super Course is a model name or description that's been used by a number of makers.
I do think the sticker on the top tube might be a hint as to the bike's branding and not just a sticker someone slapped on. Col d'Aspin in a mountain pass in the Pyrenees that's been part of the Tour de France many, many times. Super Course is a model name or description that's been used by a number of makers.
.I also think that this is not a Peugeot. One guy in Holland from a local store told me maybe it's Gitane. I check out some pictures on the internet and saw that Peugeot frames have a different frame number locations.
05-30-17 | 11:21 AM
#14
I don't think Gitane, either. Could you take a close-up of the Rear Dropouts? The one with the blurry Huret Alvit seems to be an old Simplex DO (the thinner "stamped" style maybe) but hard to make out the details.
05-30-17 | 12:48 PM
#18
Senior Member
Joined: Feb 2013
Posts: 15,369
Likes: 4,391
From: Alta California
-----
Thanks very much for the response and additional images!
Crown appears to be an EKLA Extra Light model -
https://www.classiclightweights.co.uk...omponents3.jpg
This raises the possibility of a Belgian origin. (Some Belgian cycles are built to metric dimension, although most are built to BSC/ISO standard)
-----
Thanks very much for the response and additional images!
Crown appears to be an EKLA Extra Light model -
https://www.classiclightweights.co.uk...omponents3.jpg
This raises the possibility of a Belgian origin. (Some Belgian cycles are built to metric dimension, although most are built to BSC/ISO standard)
-----
Last edited by juvela; 05-30-17 at 12:50 PM. Reason: fix non displaying image
05-30-17 | 01:11 PM
#23
Senior Member
Joined: Feb 2013
Posts: 15,369
Likes: 4,391
From: Alta California
-----
One could check the steerer to see if it is 25.0mm or 25.4mm OD.
---
Regarding frame ends -
Here is the Juy catalogue page showing this model. The fork ends which are companion to these dropouts are illustrated as being without writing:
https://velo-pages.com/main.php?g2_it...geViewsIndex=1
-----
One could check the steerer to see if it is 25.0mm or 25.4mm OD.
---
Regarding frame ends -
Here is the Juy catalogue page showing this model. The fork ends which are companion to these dropouts are illustrated as being without writing:
https://velo-pages.com/main.php?g2_it...geViewsIndex=1
-----
Last edited by juvela; 05-30-17 at 02:44 PM. Reason: addition
05-30-17 | 04:50 PM
#24
Senior Member
Joined: Oct 2011
Posts: 10,043
Likes: 2,505
From: Fairplay Co
Bikes: Current 79 Nishiki Custum Sport, Jeunet 620, notable previous bikes P.K. Ripper loop tail, Kawahara Laser Lite, Paramount Track full chrome, Raliegh Internatioanl, Motobecan Super Mirage. 59 Crown royak 3 speed
I would say late 60's higher end French while vintage correct I don't think most of the parts are original so I wouldn't go by them to ID.
11-01-18 | 08:41 PM
#25
Senior Member
Joined: Aug 2014
Posts: 540
Likes: 761
From: Los Angeles, CA
Bikes: None in ridable condition
Most of the elements of the frame here seem consistent with those of the Dutch marque JOCO. The cylindrical cable stops, Nervex/Ekla mix, non-matching dropouts/tips, the vertical head tube rivet holes (would be interesting to know the distance between them) and the serial number format/location/orientation seem to match.
I don't know enough about the serial number system JOCO used but there seems to be at least one person on oudefiets.nl who claims to know.
With all that said, the seat tube outside diameter here (if correct/accurate) is a little confusing...

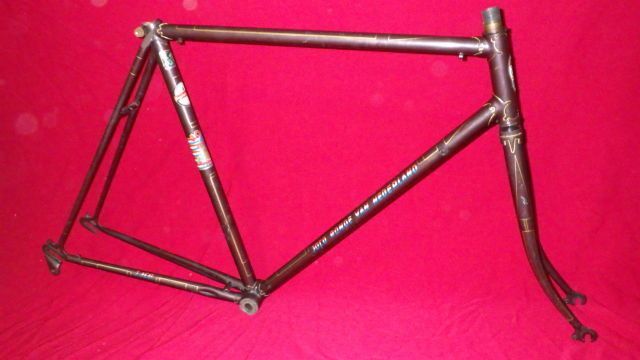

Here are some pics of a Ronde van Nederland (different dropout and fork crown):

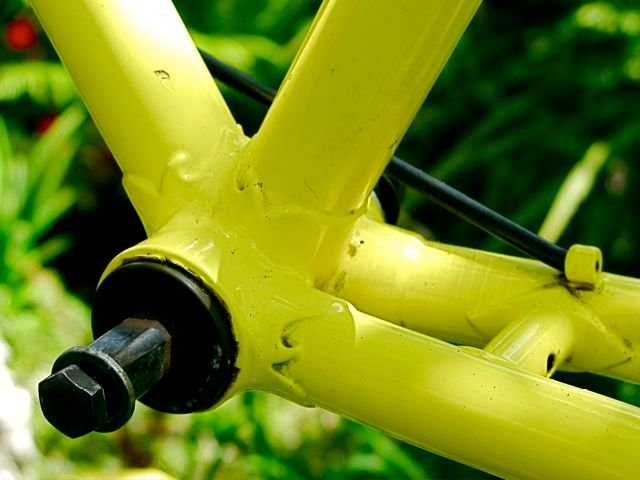

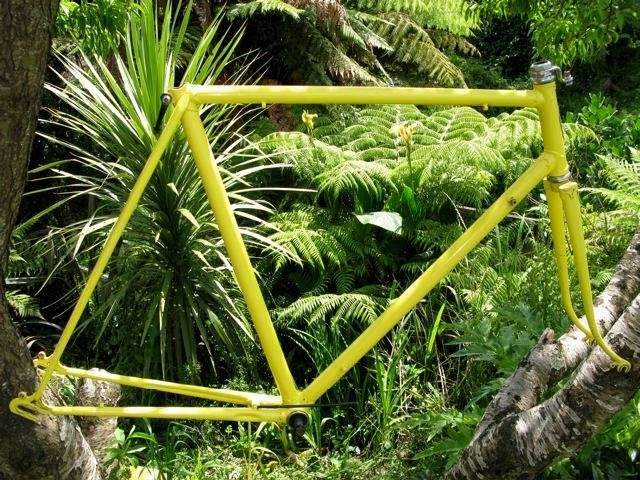

Another, unknown model (different lugs, but matching fork, drops)
I don't know enough about the serial number system JOCO used but there seems to be at least one person on oudefiets.nl who claims to know.
With all that said, the seat tube outside diameter here (if correct/accurate) is a little confusing...
Here are some pics of a Ronde van Nederland (different dropout and fork crown):
Another, unknown model (different lugs, but matching fork, drops)
