Kinda Urgent - Help Spoke Length...

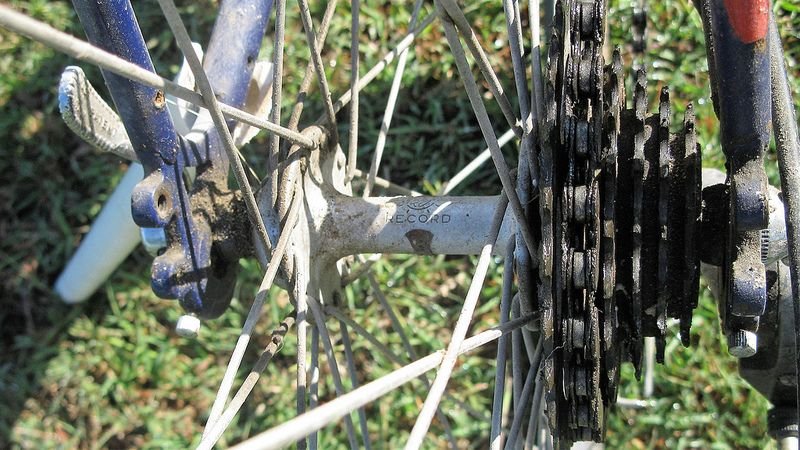

Blew a spoke on the back wheel of my Bianchi, here in Jamaica, this morning. The wheel sports a Campagnolo Record hub from the early eighties and is laced to an Ambrosia Elite rim. My notes, regarding the spoke length, are in Canada. So...
Does anyone know the length for the spokes of a 700c Ambrosia Rim (36 holes with three cross) to a Campy Record hub. Once I have this information, I will see if my Black River bike shop friend can help me sort this out. Thanks.
Does anyone know the length for the spokes of a 700c Ambrosia Rim (36 holes with three cross) to a Campy Record hub. Once I have this information, I will see if my Black River bike shop friend can help me sort this out. Thanks.
__________________
"98% of the bikes I buy are projects".
"98% of the bikes I buy are projects".
#2
incazzare.
Why not just measure the existing ones?
Or you can type in all the relevant info here: https://www.prowheelbuilder.com/spokelengthcalculator
Or you can type in all the relevant info here: https://www.prowheelbuilder.com/spokelengthcalculator
__________________
1964 JRJ (Bob Jackson), 1973 Wes Mason, 1974 Raleigh Gran Sport, 1986 Schwinn High Sierra, 2000ish Colian (Colin Laing), 2011 Dick Chafe, 2013 Velo Orange Pass Hunter
1964 JRJ (Bob Jackson), 1973 Wes Mason, 1974 Raleigh Gran Sport, 1986 Schwinn High Sierra, 2000ish Colian (Colin Laing), 2011 Dick Chafe, 2013 Velo Orange Pass Hunter
#3
Senior Member
Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 9,847
Bikes: Kirk Custom JK Special, '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque
Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 2338 Post(s)
Liked 2,827 Times
in
1,543 Posts
using edd https://leonard.io/edd/ (see pic for details) i got 300.5 for left 299.1 for right but check the selections used......
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light frame/fork or for Raleigh International frame fork 58cm)
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light frame/fork or for Raleigh International frame fork 58cm)
#4
Senior Member
https://leonard.io/edd/
Leonard says
297 right side (drive side) rear
298 left side rear.
Since you have the wheel, you don't really need a spoke calculator. You can measure the spoke on the wheel, or piece together the broken one and measure that.
EDIT: beat me to it^^^ I used "super elite" 622 not elite 630, based on the sticker. ERD 615
Leonard says
297 right side (drive side) rear
298 left side rear.
Since you have the wheel, you don't really need a spoke calculator. You can measure the spoke on the wheel, or piece together the broken one and measure that.
EDIT: beat me to it^^^ I used "super elite" 622 not elite 630, based on the sticker. ERD 615
Last edited by Salamandrine; 02-22-19 at 11:14 AM.
#5
Senior Member
Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 9,847
Bikes: Kirk Custom JK Special, '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque
Mentioned: 106 Post(s)
Tagged: 0 Thread(s)
Quoted: 2338 Post(s)
Liked 2,827 Times
in
1,543 Posts
https://leonard.io/edd/
Leonard says
297 right side (drive side) rear
298 left side rear.
Since you have the wheel, you don't really need a spoke calculator. You can measure the spoke on the wheel, or piece together the broken one and measure that.
EDIT: beat me to it^^^ I used "super elite" 622 not elite 630, based on the sticker. ERD 615
Leonard says
297 right side (drive side) rear
298 left side rear.
Since you have the wheel, you don't really need a spoke calculator. You can measure the spoke on the wheel, or piece together the broken one and measure that.
EDIT: beat me to it^^^ I used "super elite" 622 not elite 630, based on the sticker. ERD 615
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light frame/fork or for Raleigh International frame fork 58cm)
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light frame/fork or for Raleigh International frame fork 58cm)
#6
señor miembro
Join Date: Dec 2018
Location: Pac NW
Posts: 6,625
Bikes: '70s - '80s Campagnolo
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 3889 Post(s)
Liked 6,488 Times
in
3,211 Posts
#7
working on my sandal tan
Join Date: Aug 2011
Location: CID
Posts: 22,629
Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)
Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 3871 Post(s)
Liked 2,568 Times
in
1,579 Posts
Still overthinking it. You can remove a spoke and measure it without disturbing a tire.
#8
señor miembro
Join Date: Dec 2018
Location: Pac NW
Posts: 6,625
Bikes: '70s - '80s Campagnolo
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 3889 Post(s)
Liked 6,488 Times
in
3,211 Posts
#9
Senior Member
Join Date: Jan 2004
Location: Madison, WI USA
Posts: 6,157
Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 2363 Post(s)
Liked 1,749 Times
in
1,191 Posts
I'm both a cheap and lazy bastage. I did buy a truing stand, but with a broken mount, so it was, like, $5 at a swap years ago, and it's a slight PITA to use with the funny mount. And I'm often too lazy to use it. If it's just a quick post-pothole true-up, or after a single spoke replacement, I true the wheel "in frame" on the work stand, tire on, and just hold something (literally whatever's handy, a pen, a screwdriver, the spoke wrench...) on the stay next to the rim, and spin it. So I'm not dependent on eyeballing it.
#10
señor miembro
Join Date: Dec 2018
Location: Pac NW
Posts: 6,625
Bikes: '70s - '80s Campagnolo
Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 3889 Post(s)
Liked 6,488 Times
in
3,211 Posts
If it's just a quick post-pothole true-up, or after a single spoke replacement, I true the wheel "in frame" on the work stand, tire on, and just hold something (literally whatever's handy, a pen, a screwdriver, the spoke wrench...) on the stay next to the rim, and spin it. So I'm not dependent on eyeballing it.
What often gets me is that a rim is a tiny bit bowed or wider at one spot, and I'll true it over to one side, then the other, maybe two or three times before I realize what's going on.
#11
working on my sandal tan
Join Date: Aug 2011
Location: CID
Posts: 22,629
Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)
Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 3871 Post(s)
Liked 2,568 Times
in
1,579 Posts
I figure the OP's wheel is out of commission anyway, so nothing needs to be done with the tire to unhook one spoke for measuring. Once the replacement spoke comes in, then he can deal with removing a tire and getting it fixed up properly.
