Drop bar conversion handlebar angle

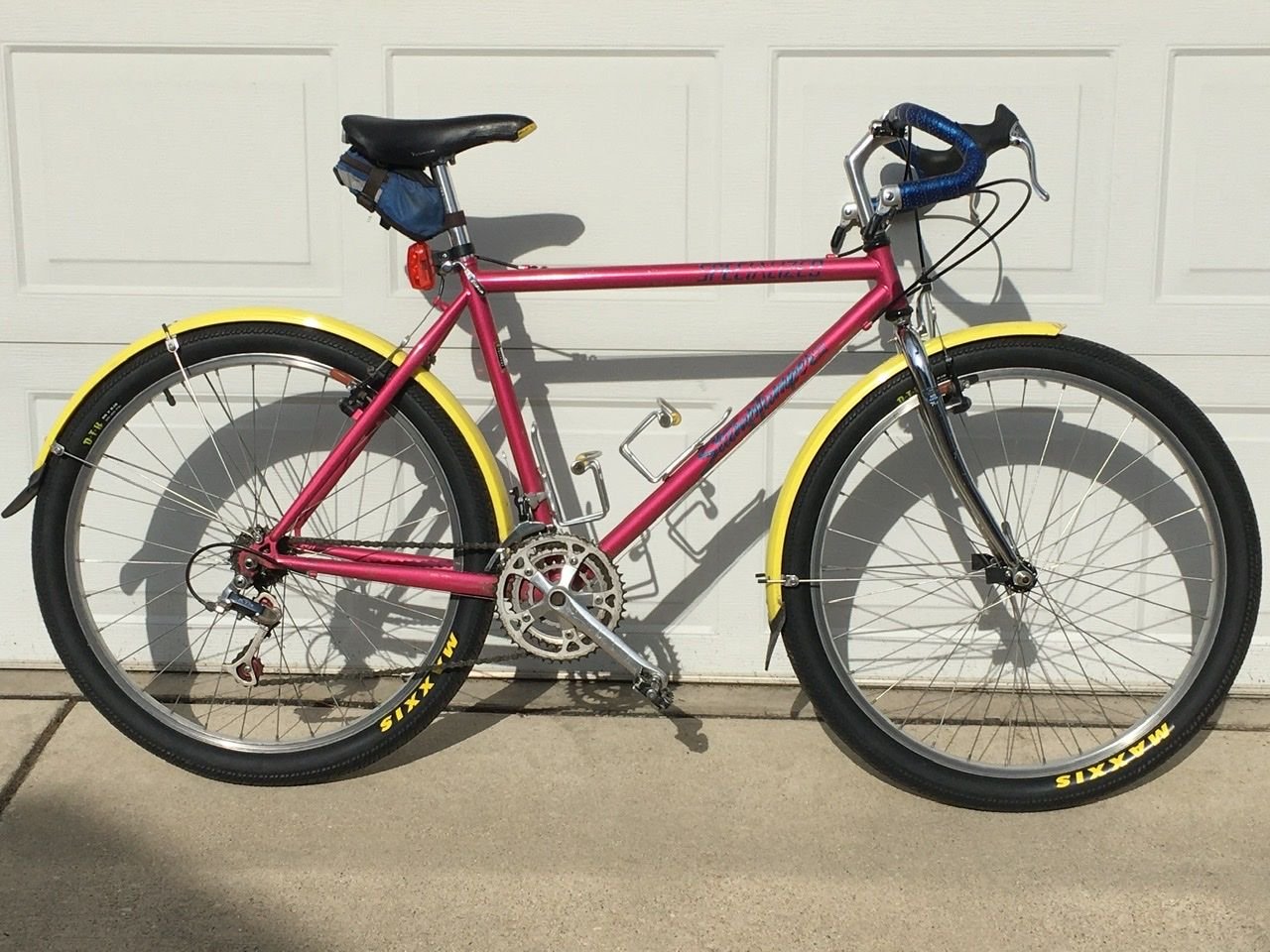

I am most comfortable riding with my hands on the hoods. It seems like this angle pictured in #1 is a little too much but it feels good when I ride it…. Any one have input on the proper angle of the bars for this application? Thanks

LBCwanabe is offline
Reply
Old 03-14-22 | 09:48 AM
  #2
Senior Member

Joined: Jun 2007
Posts: 74
Likes: 35
From: Orange County, CA

Bikes: '83 Specialized Expedition, '87 Ritchey Ultra, '88 Ritchey Ascent Comp, '89 GT Avalanche, '90 Bianchi Equinox, '90 Bianchi Project 5, '90 Trek 950, '90 Miyata TripleCross, '95 Kona Explosif, '09 Alan Wanta

I like to refer to this article when setting up dirt drops, 63xc.com--Reviews | Midge Bar. But they basically suggest anywhere from 10 - 25 deg from level bar hooks. 20-25 deg seem to work best for me personally.

Edit: I added the text from the previous link, due to potential security issues

OK, I have to admit it. I'm biased. I am a huge proponent of flared drop bars and I probably build more truly offroad bicycle frames (read: mountain bikes) with drop-bar specific setups than anyone. Why? Because I've experienced the benefits firsthand for many, many years.

Of course, I had to learn to set them up properly first. Setting up drop bars on an offroad bike (I don't mean just fireroading or cyclocross) is quite different from putting drops on a road bike.

Take a trip back 80 years or so. Riders back then were turning over single gears and riding on bad roads and dirt for incredibly long distances. In photos of the time you'll see handlebars up around saddle height, and liberal usage of flared drop bars. The high bars and flared hooks allowed a relaxed position in the drops, both while descending and during standing climbs. The flare gave a degree of wrist clearance not available from most modern drop bars. Those old pictures also show that riders chose larger frames than today, to the point where a 5'9" rider might be riding a 60cm frame.

There is lucid reasoning behind this. Saddle height is fixed. Bar height isn't. As you raise your bars, your cockpit effectively becomes shorter, because head tube angles are slacker than 90 degrees. So, how do you achieve a position that allows you to have the bars at an adequate height for comfort and primary usage of the hooks while still leaving you stretched out enough to devlop some power? Simple. A longer effective top tube.

Since bicycle design was a little more staid back in the early 20th century, with no real concern about standover clearance, you'd see riders on huge frames, barely three fingers of seatpost showing from their frames and longish quilled stems. This was the preferred kit for 400km+ dirt road stages in the Tour de France.

Post-WWII, things got more complex. Flared drops went out of favour as roads got better and aerodynamic concerns came to the fore. But the older designs never died out, and they made a strong comeback during the early days of mountainbiking here in the States. Highly flared drop bars were popular in the 80s thanks to riders/builders such as Charlie Cunningham, Steve Potts, Scot Nicol, Wes Williams, and others.

Now, mountainbikers never really had much use for those huge-triangled road frames I mentioned earlier. Standover clearance has always been a concern for offroaders. So, because so many riders were looking for a way to fit drop bars to their stock mountain bikes, the 80s saw an explosion of unusual quill stem designs. These included the LD (short for 'Limp D**k' -- it rose straight from the headset and then 'drooped' forward... use your imagination), the Salsa P10, the Nitto Dirt Drop, plus custom designs from various small builders. The key features of these stems were lots of rise and very little reach.

While the LD was a good, elegant solution, some folks found the abrupt positive rise of the other designs a little off-putting. Besides, hard riding on a rigid bike with an aluminum stem quill up at its minimum insertion line would often create undue stress on the steerer. Not surprisingly, quills gave way to the more offroadable threadless headsets and stems. Mechanically, this was doubtless a good thing. But stock threadless setups tend to put the bars well below saddle height -- OK for a flat bar, but unworkable with a drop.

If you want to combine drop bars with a threadless headset, you may have some difficulty achieving the position favoured both by the racers/randonneurs of yore and the mountain bikers of the 80s and early 90s. It can be done, tho'.

Shorter riders have it easy. It is possible for a short rider to achieve a really good position with a stock frame, especially if their legs are short for their height.

Taller riders might experiment with a stock frame and a huge spacer stack, but there's some discussion about the effects of such setups on headset longevity. A better solution would be to buy a custom frame with a longer-than-usual headtube and a stem with a marked positive rise. As long as you're under 6', it is not difficult for a maker like me to put together a drop bar-specific frame that gives appropriate fit using off-the-shelf forks and stems. The situation becomes a little more complicated with a taller, longer-legged rider... but, like many makers, I like a challenge!

And, if you want to experiment with drop bars in the dirt, you're not alone. Flared drops have made a huge comeback in the last couple of years. The WTB Dirt Drops designed by Charlie Cunningham back in the 80s have become instant eBay sellouts. Last year, Brant at On-One in the UK took a hint from this marketplace frenzy and introduced the Midge bar, basically a WTB dirt drop but with a few refinements. These drew on input from my friend and customer Don Person, a drop bar rider since the mid-80s.

The most important change is the shallow drop. As noted before, drop bar setups need to get the bars up around saddle height while maintaining a reasonable cockpit length for power. A bar design with shallow drop and long reach can help. The original WTB was shallower than a road drop, and the Midge bar takes this a step further. Smart! The Midge is great for anyone trying to retrofit a stock MTB frame (read: short head tube) and for taller riders as well.

Another improvement is the wider tops, great for seated climbing à la Lemond, and yielding a less pronounced flare where the brake levers bolt up. WTBs were quite narrow up top and the rakish brake position freaked a few folks out... at least, those using STI shifters. Levers fitted to the Midge still wind up canted, but less noticeably than on the WTB. As an aside: you'll spend more time on the hooks and less time on the tops and hoods when you ride a properly set-up flared drop, although the latter still come in handy for non-aggressive riding and seated climbing.

One unusual aspect of the Midge design is the short area behind the hooks, that is, the distance between the forward bends and the bar ends. My XXL hands are long and slender ('Banana hands!') so I have no issues with this. Others with wider hands may not care for it. I recommend a rubber bar plug such as a Velox. Some folks have come up with little 'extenders' ranging from corks to 7/8" chair tips from the hardware store. Weirdness indeed.

So what about setup? How do you place drop bars properly on an existing bike? That's an article on its own, but here are some basic guidelines:

1. Bar height
If you are 6' tall or less, aim to have the tops of your bars a bit over your saddle height... up to a few inches. Exactly how much depends on a range of factors: your flexibility, the length of your arms, the terrain you ride, etc. If you are 6' or over, you can get by with tops about level with the saddle. A little above isn't bad and if you are particularly tall or have long arms, you can get away with having them slightly below. I'm 6'2" and I run my bars about level with the saddle.


2. Cockpit length
Dialing this in tandem with (1) is the tricky part. Often times with a stock frame, you'll get the bars up to height only to find that your cockpit is bunched up like that of an 8+ hour finisher at the Flattown All Tailwind All the Time Memorial Century. Get your cockpit dialled lengthwise, and your bars will be too low for comfort on steep, technical descents. (This is crucial when riding fixed as you cannot unweight your hands by getting back off the saddle.)


If you find yourself wondering whether some inline top mount brake levers might be the ticket, your bars are too low. Period.

3. Bar angle
These are not road drop bars. Do NOT level the bottom of the hooks with the ground. The whole beauty of a flared drop bar is that it allows your hand to stay very close to its natural position, the way it would fall if you were standing relaxed with your hands by your sides. Try it! Stand relaxed and then bend your elbows 90 degrees so your hands are in front of you. The position your hand is in is quite close to what it is riding in the hooks of a Midge bar. So, how much angle? It is best to have the tips of the bars pointing downward towards the rear dropouts. This will mean that the bars are rotated forward somewhat. Depending on how upright/stretched out you ride, the bottoms of your bars should be 10--25° from level.


Why? The whole point of this is to give your hand the broadest possible platform to ride on. If the bars aren't rotated far enough forward, you'll develop pressure points on your hands that will make you hate drop bars forever. If you have them rotated too far forward, it's an indication that maybe your cockpit is a little long.

4. Brake lever positioning
Even though the Midge has a 25.4mm clamp diameter (MTB standard), it uses road brake levers. Any quality road lever is great if you are using sidepulls, centerpulls, or cantilevers. The DiaCompe 287-V is the choice for V-brakes and will also work with disc brakes like the Avid road mechanicals. When mounting the levers, bear in mind that you won't be using the tops and hoods as your dominant position. Set the levers as low as you feel comfortable. Remmber, you want optimal braking from the drops. Everything else is secondary.


The happy medium that you can achieve by optimizing (1),(2),(3), and (4) will allow you to ride light and relaxed. You'll have multiple usable hand positions -- wonderful on longer rides -- and your natural hand position will allow you to keep a light grip in descending without the risk of having your hand knocked off the bar. The analogy I think of is a wooden spoon rattling around in a lemonade pitcher.

This lack of tension pays huge dividends on all-day excursions. That's why I have ridden drop bars exclusively off-road for the last five+ years, as well during my 'explore all the fireroads in North Georgia' days on an old lugged steel road bike.

The Midge bar is a fantastic component if you're serious about comfort over long distances. It works well for for cyclocross, brevets, general road duty, etc as well as the off-road duties mentioned here. I wouldn't hesitate to put it on any bike I could make it work on. To those who feel drop bars are inherently uncomfortable:

1) You most likely haven't had them dialed in right.
2) You haven't ridden flared drops like the Midge bars.
3) You don't know what you're missing!

Last edited by imcorn; 03-14-22 at 11:27 AM. Reason: bad link
imcorn is offline
Reply
Old 03-14-22 | 09:48 AM
  #3
due ruote's Avatar
Senior Member
Titanium Club Membership
15 Anniversary

Joined: Dec 2006
Posts: 7,472
Likes: 549
I think the prevailing wisdom on "proper" dirt drop setup is for the drops to be the default position. For that I gather you would need to raise the bars, and probably reposition the levers a bit lower.
But practically speaking, there's nothing wrong with doing what's comfortable for the way you ride. If it feels good, do it. The top picture to me looks like an angle that might bother my wrists after a while, but I'm not you.
Great looking bike btw!

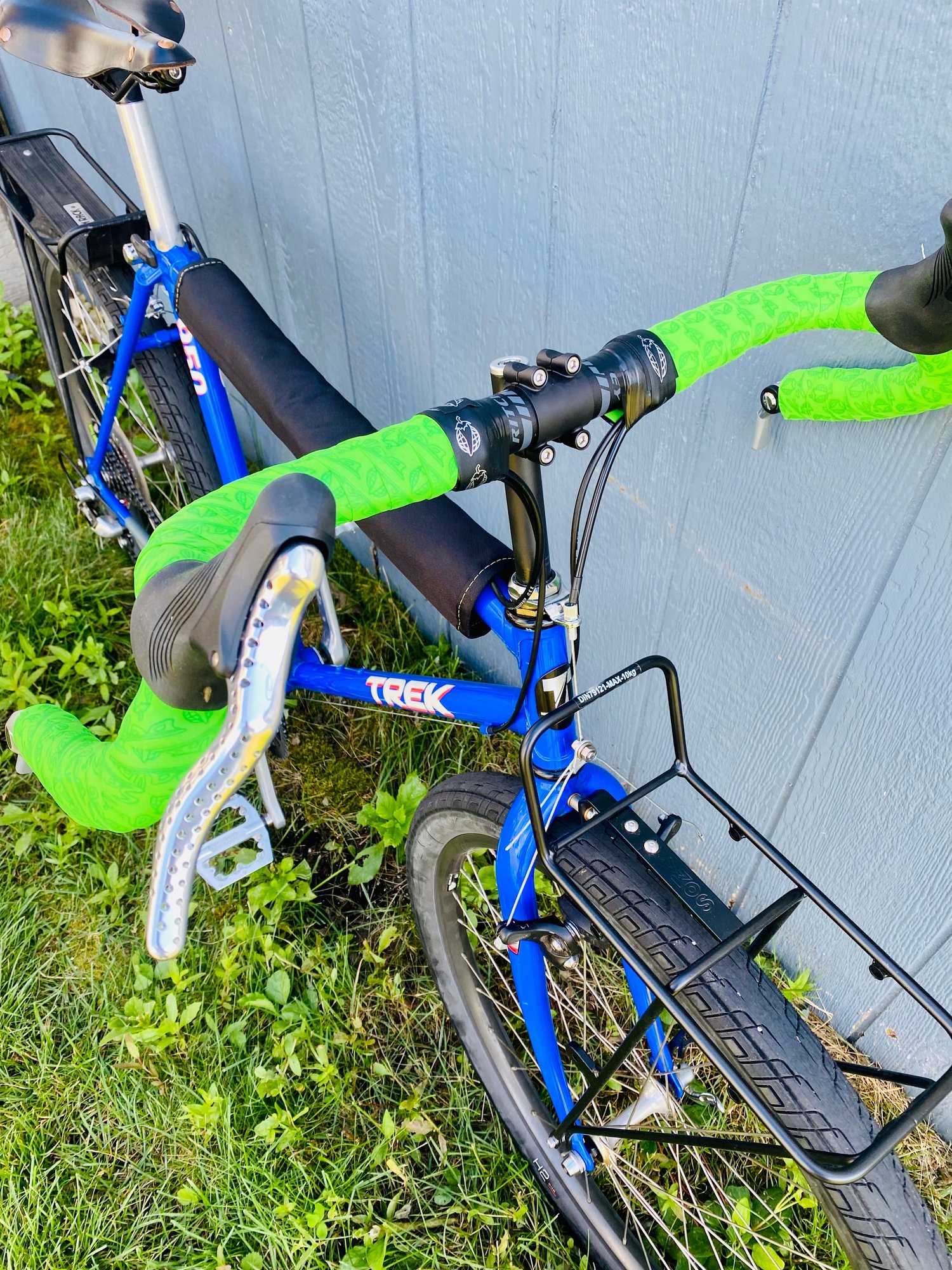

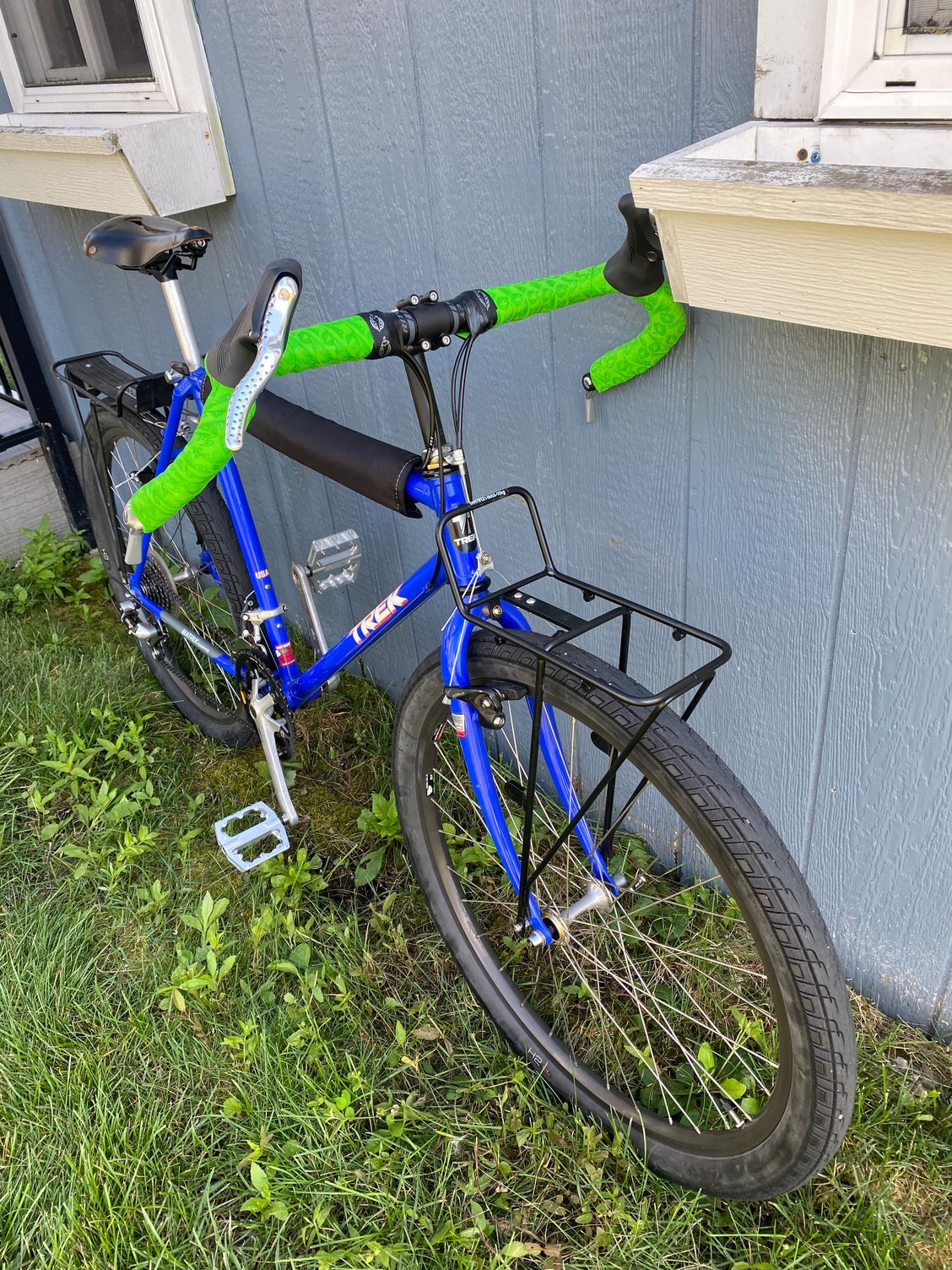

For reference, here is the angle I have on my bars. I usually ride the drops, but the hoods aren't bad.

due ruote is offline
Reply
Old 03-14-22 | 09:50 AM
  #4
due ruote's Avatar
Senior Member
Titanium Club Membership
15 Anniversary

Joined: Dec 2006
Posts: 7,472
Likes: 549
Originally Posted by imcorn
I like to refer to this article when setting up dirt drops, 63xc.com--Reviews | Midge Bar. But they basically suggest anywhere from 10 - 25 deg from level bar hooks. 20-25 deg seem to work best for me personally.
fwiw Firefox is giving me a security warning at that link.
due ruote is offline
Reply
Old 03-14-22 | 10:36 AM
  #5
Wildwood's Avatar
Senior Member
Titanium Club Membership
20 Anniversary
Community Builder
Community Influencer

Joined: Dec 2004
Posts: 15,368
Likes: 8,278
From: Seattle area

Bikes: Bikes??? Thought this was social media?!?

Frame looks too small.
__________________
Vintage, modern, e-road. It is a big cycling universe.
Wildwood is offline
Reply
Old 03-14-22 | 11:28 AM
  #6
Senior Member

Joined: Jun 2007
Posts: 74
Likes: 35
From: Orange County, CA

Bikes: '83 Specialized Expedition, '87 Ritchey Ultra, '88 Ritchey Ascent Comp, '89 GT Avalanche, '90 Bianchi Equinox, '90 Bianchi Project 5, '90 Trek 950, '90 Miyata TripleCross, '95 Kona Explosif, '09 Alan Wanta

Originally Posted by due ruote
fwiw Firefox is giving me a security warning at that link.
Thanks, I went ahead and removed the link and just copy/pasted its' text in my original reply.
imcorn is offline
Reply
Old 03-14-22 | 12:39 PM
  #7
Thread Starter
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Apr 2016
Posts: 583
Likes: 368
Originally Posted by imcorn
Thanks, I went ahead and removed the link and just copy/pasted its' text in my original reply.
thank you!
LBCwanabe is offline
Reply
Old 03-14-22 | 05:30 PM
  #8
Newbie

Joined: May 2021
Posts: 18
Likes: 24
I like setting my angle so the drop section points towards the rear dropout. Looks like that would mean tweaking yours a bit more towards horizontal than your first photo
craig_dahlke is offline
Reply
Old 03-14-22 | 09:42 PM
  #9
wrk101's Avatar
Thrifty Bill
15 Anniversary

Joined: Jan 2008
Posts: 23,639
Likes: 1,106
From: Mans of NC & SW UT Desert

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

I like the tops of the bars horizontal/level. But if you like it the way it is, that is really all that matters!
wrk101 is offline
Reply
Old 03-15-22 | 11:43 PM
  #10
Senior Member
15 Anniversary

Joined: Apr 2007
Posts: 7,738
Likes: 1,725
I set my bars so I feel comfortable in the drops - as downward angle as I can get and still feel like my hands aren't going to slip off. It's just a bit below horizontal - bar ends pointing more or less towards the rear rim brake caliper or equivalent. Then I put the hoods where they need to be to be comfortable on the hoods. I always start with mimicking (as much as possible) the general fit of my favorite/comfortable bike and go from there to get those particular handlebars comfortable.

Last edited by Camilo; 03-15-22 at 11:52 PM.
Camilo is offline
Reply
Old 03-16-22 | 06:53 AM
  #11
Monkey Boy
Titanium Club Membership
15 Anniversary

Joined: May 2009
Posts: 250
Likes: 90
From: Herndon, VA

Bikes: '22 Surly Straggler, '15 Breezer Downtown EX, '19 Motobecane Record (fixie)

I split the difference, and find them very comfortable with the top (hoods) being somewhat parallel to the ground.

__________________
Artist | Musician | Bass Player
Life is what happens to you while you're busy making other plans. (o.o)
RobertUI is offline
Reply
Old 03-16-22 | 07:44 AM
  #12
JohnDThompson's Avatar
Old fart
Titanium Club Membership
20 Anniversary
Community Builder

Joined: Nov 2004
Posts: 26,324
Likes: 5,235
From: Appleton WI

Bikes: Several, mostly not name brands.

Originally Posted by due ruote
fwiw Firefox is giving me a security warning at that link.
The domain name of the web site does not match that of the encryption certificate. While that can be an indication of something nefarious, unless you are giving the site personal or financial information, here's little to worry about simply viewing the site.
JohnDThompson is offline
Reply
Old 03-16-22 | 09:02 AM
  #13
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Jan 2013
Posts: 3,136
Likes: 875

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

I marvel at peoples saddle angles and bar angles, like the Selle Anatomica in the top photo and the Turbo(?) in the second, it is all good when you find it.
easyupbug is offline
Reply
Old 03-16-22 | 09:35 AM
  #14
Senior Member
15 Anniversary
Community Builder

Joined: Jun 2006
Posts: 21,804
Likes: 3,706
Those are not typical drop bars so with the exaggerated flare, no idea.

the goal of course is to get multiple positions that are acceptable, moves the pressure points around and for some prevents nerve stress.

on saddle tilt- nose down always makes me want to ask how does the lower back feel?
most often it places undue stress as one is fighting the slope. ( these riders often use a lower cadence too )
nose up just looks gelding training.
Both extremes are an attempt to find comfort.
a different saddle and or other adjustments should be considered.

having someone taking some images or video showing pedaling and reviewing later is a good idea.
repechage is offline
Reply
Old 03-16-22 | 03:05 PM
  #15
jdawginsc's Avatar
Edumacator
Titanium Club Membership
5 Anniversary
Community Builder
Active Streak: 30 Days

Joined: Jan 2018
Posts: 9,608
Likes: 5,103
From: Goose Creek, SC

Bikes: More than the people who ride them...oy.

I used to get teased unmercifully on the angle of my drop bars (not flared much, but Randonneur) and the height/angle of the levers in the 1980s.

i always had the drops about 20* above the horizontal or so, and the levers higher up on the curve.

I always felt dialed in...never neck and wrist issues... Imagine if we had the choices back then we do now...
jdawginsc is offline
Reply
Old 03-16-22 | 03:22 PM
  #16
zandoval's Avatar
Senior Member
Titanium Club Membership
15 Anniversary

Joined: May 2010
Posts: 5,595
Likes: 2,463
From: Bastrop Texas

Bikes: Univega, Peu P6, Peu PR-10, Ted Williams, Peu UO-8, Peu UO-18 Mixte, Peu Dolomites

Originally Posted by LBCwanabe
...feels good when I ride it….

That's all that matters...

__________________
No matter where you're at... There you are... Δf:=f(1/2)-f(-1/2)
zandoval is offline
Reply
Old 03-18-22 | 01:55 AM
  #17
CMAW's Avatar
Senior Member
Titanium Club Membership
15 Anniversary

Joined: Feb 2011
Posts: 841
Likes: 655
From: Brussels
Is that a Ritchey Beacon bar LBCwanabe ? Interesting looking bar, I'm intrigued by the very shallow drop on these. I have a Midge on my gravel Koga and have to agree with most of what's been said in the article cited above — and yes, without bar end shifters the flat part of the drops of the Midge are way too short.
__________________

Last edited by CMAW; 03-18-22 at 03:37 AM.
CMAW is offline
Reply
Old 03-18-22 | 06:46 AM
  #18
Monkey Boy
Titanium Club Membership
15 Anniversary

Joined: May 2009
Posts: 250
Likes: 90
From: Herndon, VA

Bikes: '22 Surly Straggler, '15 Breezer Downtown EX, '19 Motobecane Record (fixie)

I wound up going with the Ritchey Venturemax and absolutely love them.
__________________
Artist | Musician | Bass Player
Life is what happens to you while you're busy making other plans. (o.o)
RobertUI is offline
Reply
Old 03-19-22 | 02:48 AM
  #19
CMAW's Avatar
Senior Member
Titanium Club Membership
15 Anniversary

Joined: Feb 2011
Posts: 841
Likes: 655
From: Brussels
Originally Posted by RobertUI
I wound up going with the Ritchey Venturemax and absolutely love them.
That weird and uncomfortable looking bio-bend doesn't bother you?
__________________
CMAW is offline
Reply
Old 03-19-22 | 03:31 AM
  #20
Chombi1's Avatar
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Nov 2015
Posts: 4,900
Likes: 1,125
Drop bar angle is entirely subjective to what feels comfortable to a rider.........as long as the bar is not inverted, "hobo" style.......which is a totally unacceptable cycling mortal sin!
Chombi1 is offline
Reply
Old 03-19-22 | 05:56 AM
  #21
Monkey Boy
Titanium Club Membership
15 Anniversary

Joined: May 2009
Posts: 250
Likes: 90
From: Herndon, VA

Bikes: '22 Surly Straggler, '15 Breezer Downtown EX, '19 Motobecane Record (fixie)

Originally Posted by CMAW
That weird and uncomfortable looking bio-bend doesn't bother you?
Not at all, I fits much better than I thought it would. I tried tons of different bars before settling on those.
__________________
Artist | Musician | Bass Player
Life is what happens to you while you're busy making other plans. (o.o)
RobertUI is offline
Reply
Old 07-29-22 | 10:26 AM
  #22
Thread Starter
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Apr 2016
Posts: 583
Likes: 368
I took a ride with the bars at this angle last night. The drops felt a little to low, but the hoods were great! I’m going to try them more flat tonight and see how it feels.





Bc
