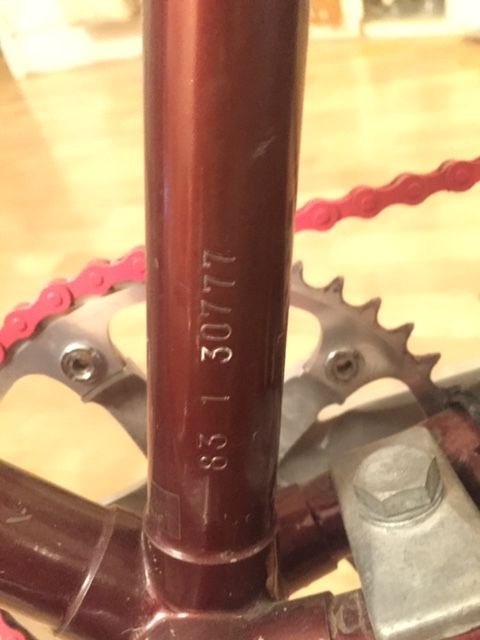

A good friend of mine found this machine (Serial # 83 1 30777) in a thrift store and stripped it for parts. He was tossing the frame and fork in the dumpster :-( I saved it and figured I'd use old parts to get it on the road again. The only parts that I did not have in my shed was the headset, BB and 25.4 seatpost. I found the Kuwahara headset and seatpost on ebay and bought a cheap Shimano BB from my LBS. Found Race face handlebar off a trashed Kona MTB. Old SR stem (too short for me) Bontrager Kovee Elite saddle, Bontrager tires, Specialized Axis wheel set, Old scratched up Shimano 600 cranks off a Nishiki Tri A, Kyokuto Pro Vic 2 pedals, ancient Cateye reflectors, old Electra bell, Specialized grips, C3 brake levers, lightly used KMC pink chain, NIB Dia-Compe brakes (I think I traded parts for the brakes a few years ago and old NOS Shimano freewheel. It's a smooth riding bike..... :-)

Not sure why the text didn't stick but that was my Deeley before I sold it . All original except tires, cables and bar tape. It was beautiful to ride and a real great looking bike . This is my 78 sr5 that is completely original and it is an amazing ride . Apollo's have a bit of a cult following here in BC and I am always surprised at how many people want to look at and talk about them and share their experiences growing up with them .

I have a single speed Apollo that I didn’t see anywhere in this thread. The closest one had two bars where mine only has one. The serial number is a different format too... 4A48111. I can’t post pictures yet but when I can I will. I’m just looking for more info about it, I can’t find anything on the internet about it, it’s kind of driving me nuts.

I just picked up this 84. Zukhan1 said it's a blue line edition. Was pretty dirty and when picked it up but I took it all apart today and did a major clean, still needs a few adjustments but it's pretty great so far.

Before clean up, really grimy





This is after a few hours of taking things apart, shining them up and putting back together. Everything cleaned up really nice, even the brake levers, has some scratching all over and the ends of the pedals are pretty banged up, but it seems pretty good for an old girl.

The serial number format is consistent with M-a-t-s-u-s-h-i-t-a, a Japanese company best known for their Panasonic brand bicycles. While most Apollo brand bicycles were manufactured by Kuwahara, the brand was owned by Fred Deeley Imports and as such, they could have the bicycles contract manufactured by anybody. Yours is probably a 1984 model, though I wouldn't rule out 1974. Please post pictures.

Sharing the 1980 Gran Sport I rebuilt only to discover I am too short for it. It came with some upright bars and low end levers/shifters. I was able to trade for drop bars with 105 aero levers, not original but much better than before.

Nice

What is the general model hierarchy of the Apollo bikes during the 70's and 80's? Does anyone know the specifics of what tubing with which models?

Bare frame and forks fitted tempoarily with random bits saved from from previous projects to see how it rides.

Very nice indeed!

I have an Apollo ii from 1981 that is near new.

I tried posting a photo but I can't

Regards ken

Just found this 'Ultimate Apollo Thread'. Nice to see it's still active. Much good info for this Apollo fan. Still reeling from loss of my Edmonton-bought Deely '85 Apollo Triathlon to theft. Identical to Ricohman's. I see many models--not sure which ones had the light CrMo frame, but this is a feature I insist on. I found light weight a real asset. Wanting more now to find another Triathlon--light, and shorter racing frame makes it nimble (but a pain to R&R the rear wheel). Now I know why they're more common on west coast, so will look for used ones in that market. Ricohman, would snap yours up (if you still have it) in an instant!

Ignore the forum warning/rules. Photos will upload to a gallery album under your user name. Then a forum member can access your gallery album post the photo (drive side please) in this thread, on your behalf.

Hello BodnarDave,
welcome to the forum.

If you like Apollos with CrMo frames there are many options.
Sport touring: Prestige, PrestigeXL, Regent, Super Sport, Club Sport.
More speed oriented: Gran Sport, Gran Tour, Criterium, Imperial, Concourse.
Touring: Club Tourist, Gran Touriste.


Gran Sport 1980

Gran Sport 1981

Prestige XL 1983

Gran Touriste 1983

Thanks, Hummer, for that info about light-weight Apollo models. I'm not the only one who wondered what all there was--clearly, many models. You list several in each of three categories. If they all have CrMo frames, what are the differences among these categories? Frame dimensions? Wheelbase? In which one would Triathlon fit? I'm guessing 'speed'; I was told when I bought it that it was a racing model of Apollo.

Don't go strictly by model names. While it will help you narrow down the search, the tubeset can be year dependent. For instance, the early version of the above mentioned Apollo Prestige was built with hi-tensile steel (see attached photos). Once you find a model that may be CrMo, take a close look at the tubing decal for confirmation.

Also, all CrMo frames are not the same. There's plain gauge, single butted, double butted, triple butted and quadruple butted, and various thicknesses for each. Some frames may also use only a partial CrMo tubeset. It's very common to use CrMo only for the three main tubes and to use lesser grade carbon-manganese or hi-tensile steel for the stays and forks. Some manufacturers even use only a single CrMo tube, just so they can slap on a CrMo decal.

If the decal states PG, plain gauge, straight gauge or doesn't mention butting, that means the tubes have a constant thickness along their entire length. Butted tubes are thinner in their mid-section, for lightness and resiliency.

If the decals indicates CrMo and states "tube" (singular) you've only got a single CrMo main tube. If it says '"tubes" (plural), then you've got CrMo in at least two of the main tubes, though it's usually all three of the main tubes. It it says. "tubes, forks and stays", then the entire frameset is CrMo.

In the above examples of decals posted Hummer, the first decal indcates a full CrMo frameset, with butted main tubes.

In the second example, it is plain gauge CrMo, only in the three main tubes.

In the third example, the frame has only a single, plain gauge, CrMo tube.

Evening all,

picked up an Apollo 4 and she’s had better days so looking at a rebuild. What I’m hoping is that someone could point me in the right direction to find replacement decals for an Apollo 4 before I get to the striping part. Any help would be great.

oh, there are some beautiful bikes on here to and am a little bit envious.

Afternoon all,

looking for a bit more help please. Have a ‘81 Apollo 4 silver mink. All shimarno 600 group set but in bad shape. Looking at a full strip and repaint along with a little pitting repair. Have sourced replacement decals, thanks Greg, but was hoping someone has photos of a silver mink bike I could see how it all fits together.

thanks again all

I wonder if this local to me Apollo road bike would make a good Rando conversion? I already have two 650b bikes so might consider a 700C version. Keeping it at that wheel size generally means the trail does not have to be as low as 650b and the rake appears to be enough. Seller is asking 150.00 o.b.o. and condition is good. Interesting use of thumb shifters on the handlebars though I would revert to down tube. Nice flat ramps are also a positive. I think it is a mid 1970's MK IV, some of the components are 600 series.



I would be changing the gearing to a wider ratio freewheel, triple crank set, MKS Sylvan touring pedals, wider Rene Herse tires, front bag and rack, shorter stem ( Nitto Technomic ) and better seat etc. so a bit involved so want to insure it is worthwhile. If I can squeeze 38 mm tires with fenders that would be great but 35 is probably the limit.

Idk but I think you should try it and let us know. Sounds like a reasonable price for the area, if it's legit.

Afternoon all,

wondering if anyone in their travels have run across a shimano 60 freewheel. Have one on a Apollo 4 I’m fixing up and hoping there’s a little info out there on this particular freewheel.

any info be great

thanx

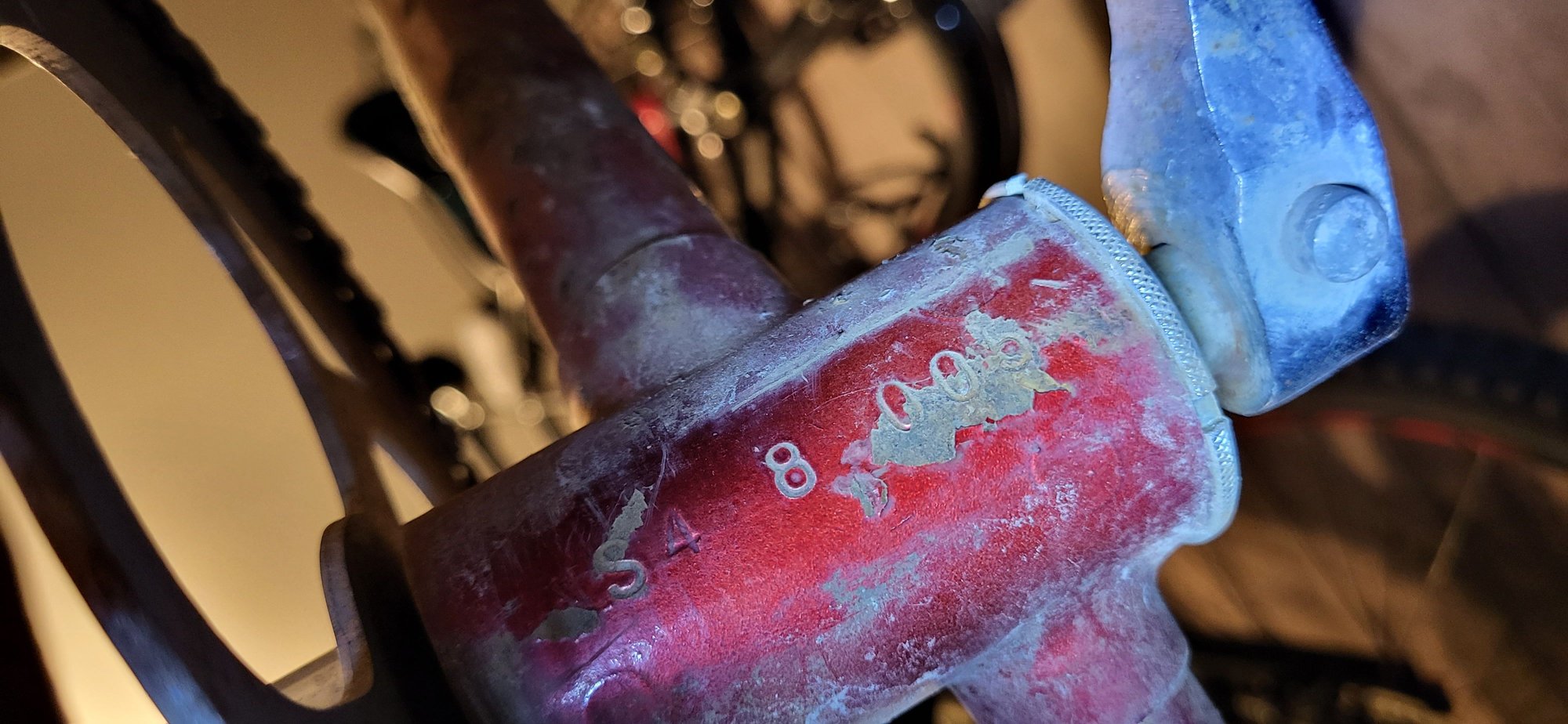

A buddy had a rusty Deelite that lived outside which he used to commute to the pub. I fell in love with the rusty bucket and the Deelite history and filled him in on the little I knew of it. He moved and gave it to me. I stripped it, cleaned it, lubed it, straightened the bars, straightened the cranks, bought a new 27" front wheel to match the rear and remove the 26" that was in front, took off the Dia Compe front brake, (cause fixie) and because I've always loved the rusty rat rod look, I went with with red rims and white walls. Still have some questions about it though...Serial # S4 8 005 - August 1974?What is factory rim size? Assuming steel frame? 3 Speed? I haven't been able to find any pictures of Three Speeds! I'd love to see what an original looks like. Thanks!









​

Morning all.

just checking to see, is there a way around the the 10 posts before able to post photos rule ?still not close yet and I’d like to share a few photos

thanks all

Good day Az72, welcome to the forum.

Here is the link to your album of pictures. https://www.bikeforums.net/g/album/29733528

Australian Apollo IV.

Edit: possibly from 1981.

Thanks heaps Hummer
