Campagnolo Brake ID

Reply

Old 02-13-19, 09:56 PM
  #1
malcala622
Senior Member
Thread Starter

malcala622's Avatar

Join Date: Oct 2014
Location: Pico Rivera, CA
Posts: 1,723

Bikes: Bianchi Trofeo/Sport SX/Limited/Giro.Tommasini Prestige. Bottecchia Cromor. Gios Torino. Torelli Strada?

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Campagnolo Brake ID

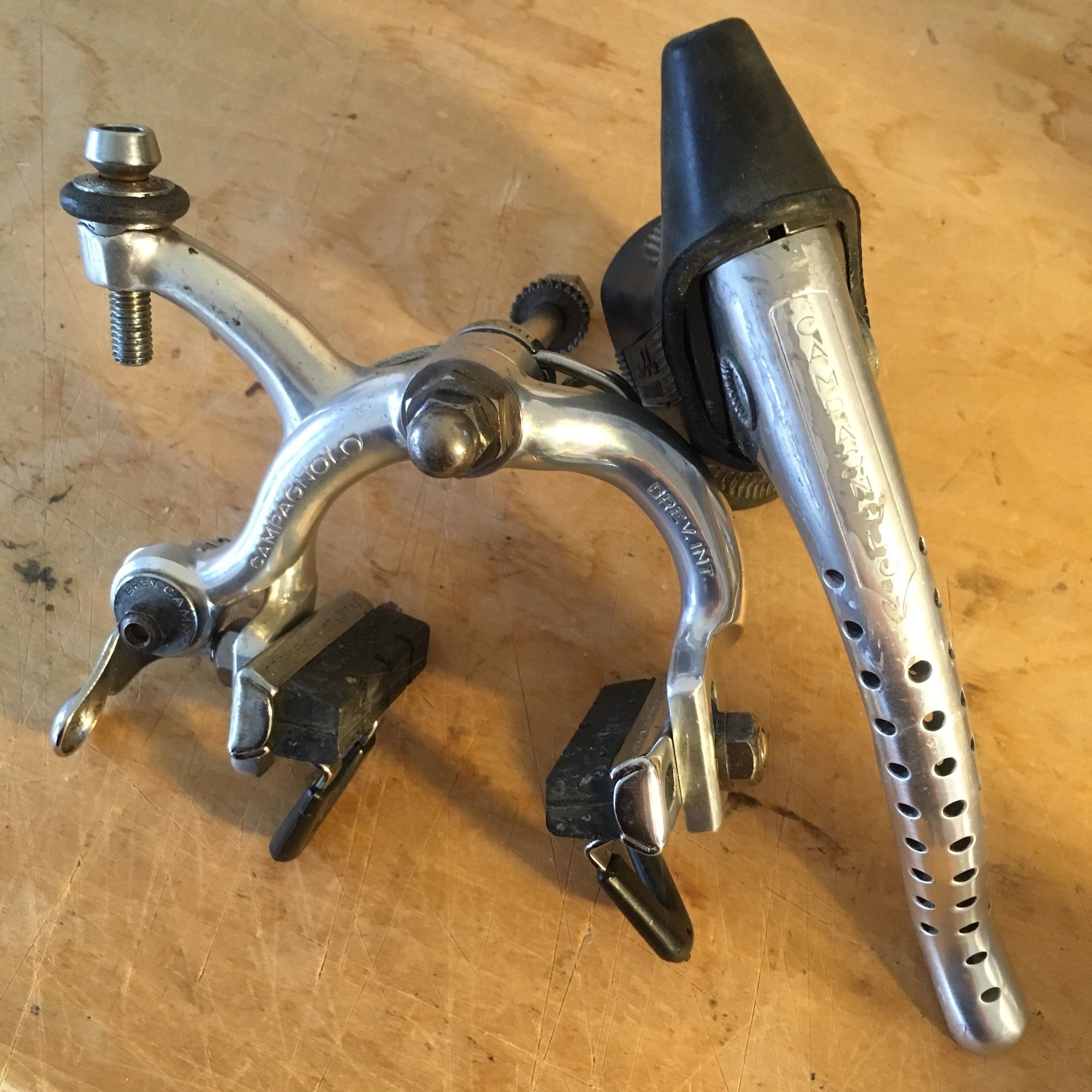

Can't ID these myself. Any help is appreciated.

I noticed brake pad holders are mismatched.

malcala622 is offline
Reply With Quote
Old 02-13-19, 10:04 PM
  #2
Ex Pres
#39

Ex Pres's Avatar

Join Date: Dec 2007
Location: Mountain Brook, AL
Posts: 7,041
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 321 Post(s)
Look like Triomphe, maybe Victory to me.
edit: going with Triomphe
edit2: based on the below, I did not choose wisely.

Last edited by Ex Pres; 02-14-19 at 07:54 AM.
Ex Pres is offline
Reply With Quote
Old 02-13-19, 10:07 PM
  #3
malcala622
Senior Member
Thread Starter

malcala622's Avatar

Join Date: Oct 2014
Location: Pico Rivera, CA
Posts: 1,723

Bikes: Bianchi Trofeo/Sport SX/Limited/Giro.Tommasini Prestige. Bottecchia Cromor. Gios Torino. Torelli Strada?

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Bummer already bad news with the mismatched holders and adjusters...now they theure not record or super.
malcala622 is offline
Reply With Quote
Old 02-13-19, 10:21 PM
  #4
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,629
Mentioned: 84 Post(s)
Tagged: 0 Thread(s)
Quoted: 907 Post(s)
Super Records had the eccentric cam style quick release. The lesser models had these double jointed QR levers.
Those look like Modolo brake pad holders with most likely, their much maligned sintered brakepads.....

Last edited by Chombi1; 02-14-19 at 03:13 AM.
Chombi1 is offline
Reply With Quote
Old 02-14-19, 12:25 AM
  #5
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 3,441

Bikes: Merz, Strawberry/Newlands, Gordon, Fuso/Moulton, Bornstein, Paisley, Paramounts, 3rensho, Moto TC, Raleigh Pro's, Marinoni, Cinelli SC and more

Mentioned: 77 Post(s)
Tagged: 0 Thread(s)
Quoted: 928 Post(s)
Always thought those wire wheel guides were funky (cheap looking) at best, way worse not mounted on Modolo's.
merziac is online now
Reply With Quote
Old 02-14-19, 12:36 AM
  #6
repechage
Senior Member

Join Date: Jun 2006
Posts: 13,153
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 866 Post(s)
Originally Posted by Ex Pres View Post
Look like Triomphe, maybe Victory to me.
edit: going with Triomphe
The script logo on the arms was really introduced with the Colbalto calipers, which were an offshoot of the 50th Anniversary calipers.
these I would call at their core, Victory. With substituted pads and holders from Modolo and mismatched adjusters, the tall one being much later.
the chrome plating guides me to Victory, as I recall, and might be off, Triomphe used cad plating on the quick release.

the simple, open, shut QR worked well enough but was not the cool eccentric of the Record offering.
repechage is offline
Reply With Quote
Old 02-14-19, 12:38 AM
  #7
malcala622
Senior Member
Thread Starter

malcala622's Avatar

Join Date: Oct 2014
Location: Pico Rivera, CA
Posts: 1,723

Bikes: Bianchi Trofeo/Sport SX/Limited/Giro.Tommasini Prestige. Bottecchia Cromor. Gios Torino. Torelli Strada?

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
I passed on them . I want the script version SR brake calipers.

Thanks everyone for the quick ID and info
malcala622 is offline
Reply With Quote
Old 02-14-19, 12:50 AM
  #8
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Posts: 457

Bikes: old school roadies

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Originally Posted by Ex Pres View Post
Look like Triomphe, maybe Victory to me.
edit: going with Triomphe
Victory has conical nuts like those pictured. Triomphe has hollow nuts, unlike those pictured.
SurferRosa is online now
Reply With Quote
Old 02-14-19, 07:53 AM
  #9
Ex Pres
#39

Ex Pres's Avatar

Join Date: Dec 2007
Location: Mountain Brook, AL
Posts: 7,041
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 321 Post(s)
Originally Posted by SurferRosa View Post
Victory has conical nuts like those pictured. Triomphe has hollow nuts, unlike those pictured.

What's funny is the nuts were what made me choose, based on the first couple [now I know as mislabeled] pics I saw on the web.
Ex Pres is offline
Reply With Quote
Old 02-14-19, 12:07 PM
  #10
SurferRosa
Senior Member

SurferRosa's Avatar

Join Date: Dec 2018
Posts: 457

Bikes: old school roadies

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 184 Post(s)
Originally Posted by Ex Pres View Post
What's funny is the nuts were what made me choose, based on the first couple [now I know as mislabeled] pics I saw on the web.
You'd have the same difficult time distinguishing the campy brakes on my '87 falcon I recently built up. They're triomphe, but i replaced the nuts with victory conical ones. Does that make them victory? Maybe so.
SurferRosa is online now
Reply With Quote
Old 02-14-19, 04:49 PM
  #11
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 20,016

Bikes: Several, mostly not name brands.

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1542 Post(s)
Originally Posted by Chombi1 View Post
Super Records had the eccentric cam style quick release. The lesser models had these double jointed QR levers
Super Record and Record brakes shared the same calipers; only the levers were different (Super Record had drilled levers). Script logo puts them in the 80s, the quick release means Gran Sport/Triomphe/Victory level, pivot bolt nut suggests Victory.
JohnDThompson is offline
Reply With Quote
Old 02-14-19, 05:46 PM
  #12
deux jambes
Senior Member

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 732
Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 262 Post(s)
Originally Posted by JohnDThompson View Post
Super Record and Record brakes shared the same calipers; only the levers were different...
Didn't Super Record come with aluminum pad holders, while Nuovo Record used steel?
deux jambes is online now
Reply With Quote
Old 02-14-19, 06:00 PM
  #13
TiHabanero
Senior Member

Join Date: Nov 2012
Posts: 2,015
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 554 Post(s)
Original owner of 85 NR calipers and they have aluminum pad holders.
TiHabanero is offline
Reply With Quote
Old 02-15-19, 12:38 PM
  #14
deux jambes
Senior Member

deux jambes's Avatar

Join Date: Jul 2018
Location: Eugene, OR
Posts: 732
Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 262 Post(s)
Originally Posted by TiHabanero View Post
Original owner of 85 NR calipers and they have aluminum pad holders.
Going through the internet, including past threads in our very own forum, Im getting mixed messages. One set of folks say its levers only, and another says its levers, and aluminum pad holders. And yet a third claim points out the presence (or lack there of) of black plastic covered tire guides.

One thing is clearly evident to me however... Campy sure has done a good job at creating a fair amount of confusion along its way.

I have whats obviously SR levers, that were sold to me with what were stated to be SR calipers. However, the pad holders are steel which according to info Ive gathered led me to believe theyd actually be NR. But then the plastic covered tire guides would suggest SR if other claims have been accurate. At this point, Im perfectly content to not fret over things, and to simply accept that the calipers I have are... Record!



deux jambes is online now
Reply With Quote
Old 02-15-19, 12:57 PM
  #15
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,617

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 1597 Post(s)
At least for the vast majority of production time, both NR and SR campy brakes had steel pad holders. Only the levers were different. However, there were a few oddball changes in the last year or two of SR/NR, and it wouldn't surprise me if SR used aluminum holders during that transitional time. That's when they changed the locknuts and sthe script on the arms. One more thing wouldn't be a surprise. I've just never seen them - or more likely don't remember. I would like to if someone has a picture. Hint @TiHabanero
Salamandrine is offline
Reply With Quote
Old 02-15-19, 01:22 PM
  #16
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Fort Wayne, In
Posts: 25,435

Bikes: Too many to list here check my signature.

Mentioned: 84 Post(s)
Tagged: 2 Thread(s)
Quoted: 1153 Post(s)
What was the price on these? With a set of Kool Stop blocks instead of the 30+/-yo Sinthered pads they would make a good serviceable brakeset.

When was the last time anyone actually opened their NR/SR quick release just a little bit?
__________________
Bianchis '87 Sport SX, '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, , '90 something Vento 603,

Others but still loved,; '80 RIGI, '80 Batavus Professional, '87 Cornelo, '09 Motobecane SOLD, '?? Jane Doe (still on the drawing board), '90ish Haro Escape
Bianchigirll is online now
Reply With Quote
Old 02-15-19, 01:38 PM
  #17
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,617

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 1597 Post(s)
Originally Posted by Bianchigirll View Post

When was the last time anyone actually opened their NR/SR quick release just a little bit?
probably about 1987.

It actually was a useful feature back when spokes use to break, or when you bent a wheel on a pothole or cowguard or whatever. Allowed you to use max braking even after you wheel was bent. Single pivots could track a bent wheel.
Salamandrine is offline
Reply With Quote
Old 02-15-19, 01:58 PM
  #18
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,617

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 99 Post(s)
Tagged: 0 Thread(s)
Quoted: 1597 Post(s)

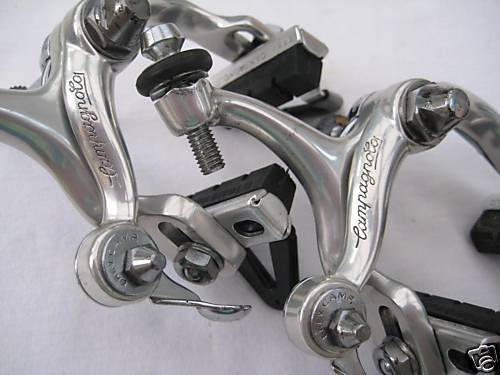

Found this pic on Velobase. This was last hurrah of Super Record brakes. Note the new script stamped on the arms, and conical locknuts. The pad holders do appear to be aluminum.

Salamandrine is offline
Reply With Quote
Old 02-15-19, 01:59 PM
  #19
malcala622
Senior Member
Thread Starter

malcala622's Avatar

Join Date: Oct 2014
Location: Pico Rivera, CA
Posts: 1,723

Bikes: Bianchi Trofeo/Sport SX/Limited/Giro.Tommasini Prestige. Bottecchia Cromor. Gios Torino. Torelli Strada?

Mentioned: 50 Post(s)
Tagged: 0 Thread(s)
Quoted: 437 Post(s)
Originally Posted by bianchigirll View Post
what was the price on these? With a set of kool stop blocks instead of the 30+/-yo sinthered pads they would make a good serviceable brakeset.

When was the last time anyone actually opened their nr/sr quick release just a little bit?

$60
malcala622 is offline
Reply With Quote
Old 02-15-19, 03:50 PM
  #20
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 39,627

Bikes: 8

Mentioned: 167 Post(s)
Tagged: 0 Thread(s)
Quoted: 6187 Post(s)
Apparently as I learned, decades ago, Super record lever holes were put in the sheet aluminum while it was flat ,
before going into the next punch press, to shape them.

that's why the holes are not round , It was to help wet finger grip, I expect..

a little time with a rat-tail needle file rounded our the holes in mine,,
fietsbob is online now
